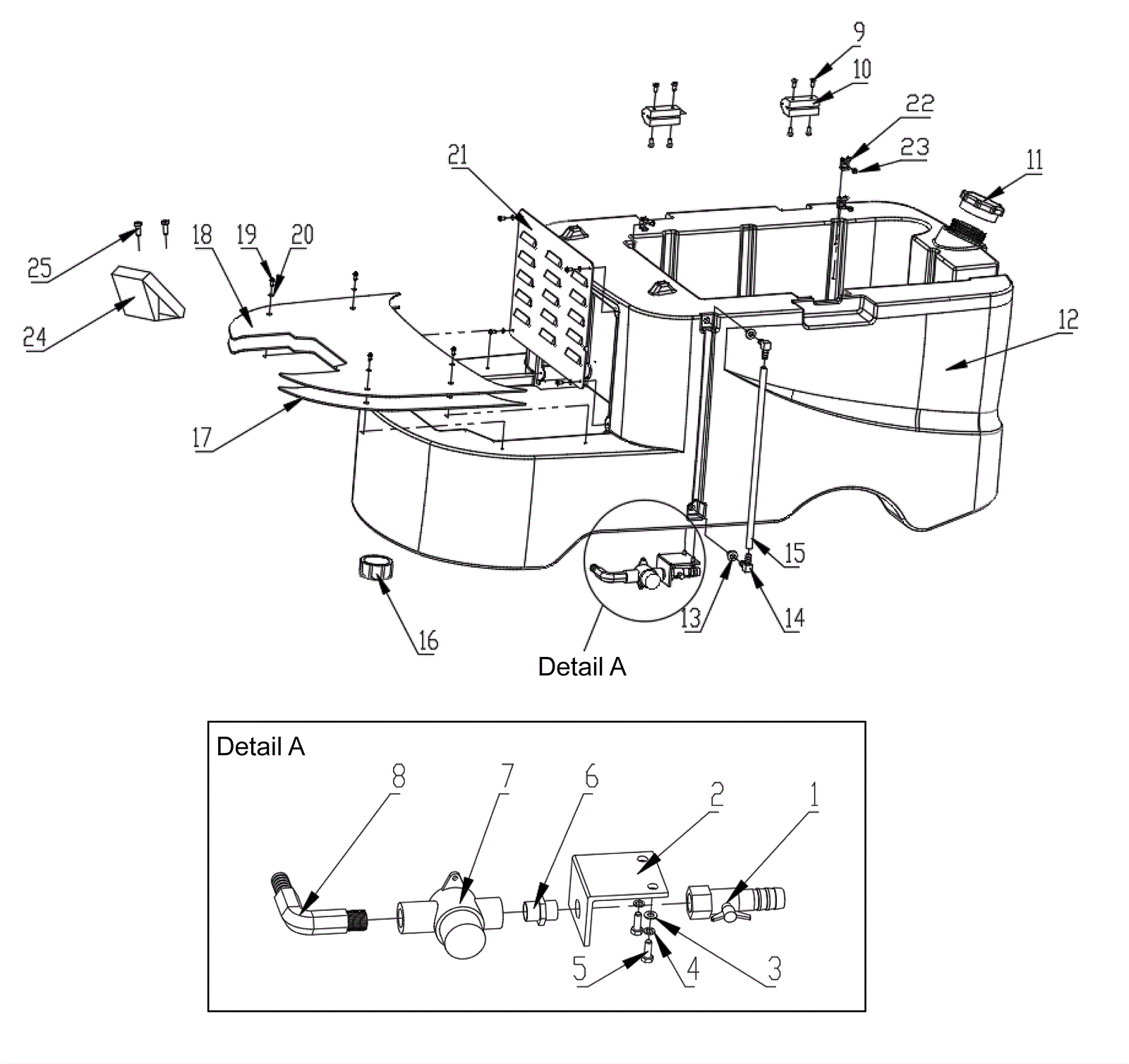

A9 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-0125 Manual ball valve $12.92 1 ships same day
2 341-0111 Ball valve support $1.86 1 ships same day
3 341-0034 Washer M5 stainless steel $0.90 2 ships same day
4 341-0033 Washer M5 lock stainless steel $0.90 2 ships same day
5 341-0110 Screw M5 x 16mm stainless steel $0.90 2 ships same day
6 341-0197 Nipple $2.03 1 usually ships 3-21 days
7a 341-0127 Filter assembly $12.50 1 (OEM) usually ships 3-21 days
7b 991-8582 Mesh inline filter $14.20 1 (NON-OEM) ships same day
7c 991-8569 Mesh filter screen stainless steel $4.51 1 (NON-OEM) ships same day
7d 991-8575 Short bowl (clear) $13.54 1 (NON-OEM) ships same day
8 341-0027 3/8-12 Elbow $1.60 1 ships same day
9 341-0012 Screw M6 x 25mm stainless steel $0.90 8 ships same day
10 341-0087 Tank hinge $21.92 2 ships same day
11 341-0198 Threaded cover $2.53 1 usually ships 3-21 days
12 341-0199 Solution tank $467.90 1 usually ships 3-21 days
13 341-0200 Plug $0.90 2 usually ships 3-21 days
14 341-0201 Elbow $1.22 2 usually ships 3-21 days
15 341-0202 Pipe $0.90 1 usually ships 3-21 days
16 341-0203 Cap $4.53 1 ships same day
17 341-0204 Foot pad $59.06 1 usually ships 3-21 days
18 341-0205 Bottom plate $24.31 1 usually ships 3-21 days
19 341-0017 Screw M5 x 12mm stainless steel $0.90 8 ships same day
20 341-0034 Washer M5 stainless steel $0.90 8 ships same day
21 341-0016 Back cover $11.01 1 ships same day
22 341-0088 Support plate $0.90 1 ships same day
23 341-0017 Screw M5 x 12mm stainless steel $0.90 3 ships same day
24 341-0206 Pedal $95.66 1 usually ships 3-21 days
25 341-0166 Screw M8 x 20mm $0.90 2 usually ships 3-21 days
