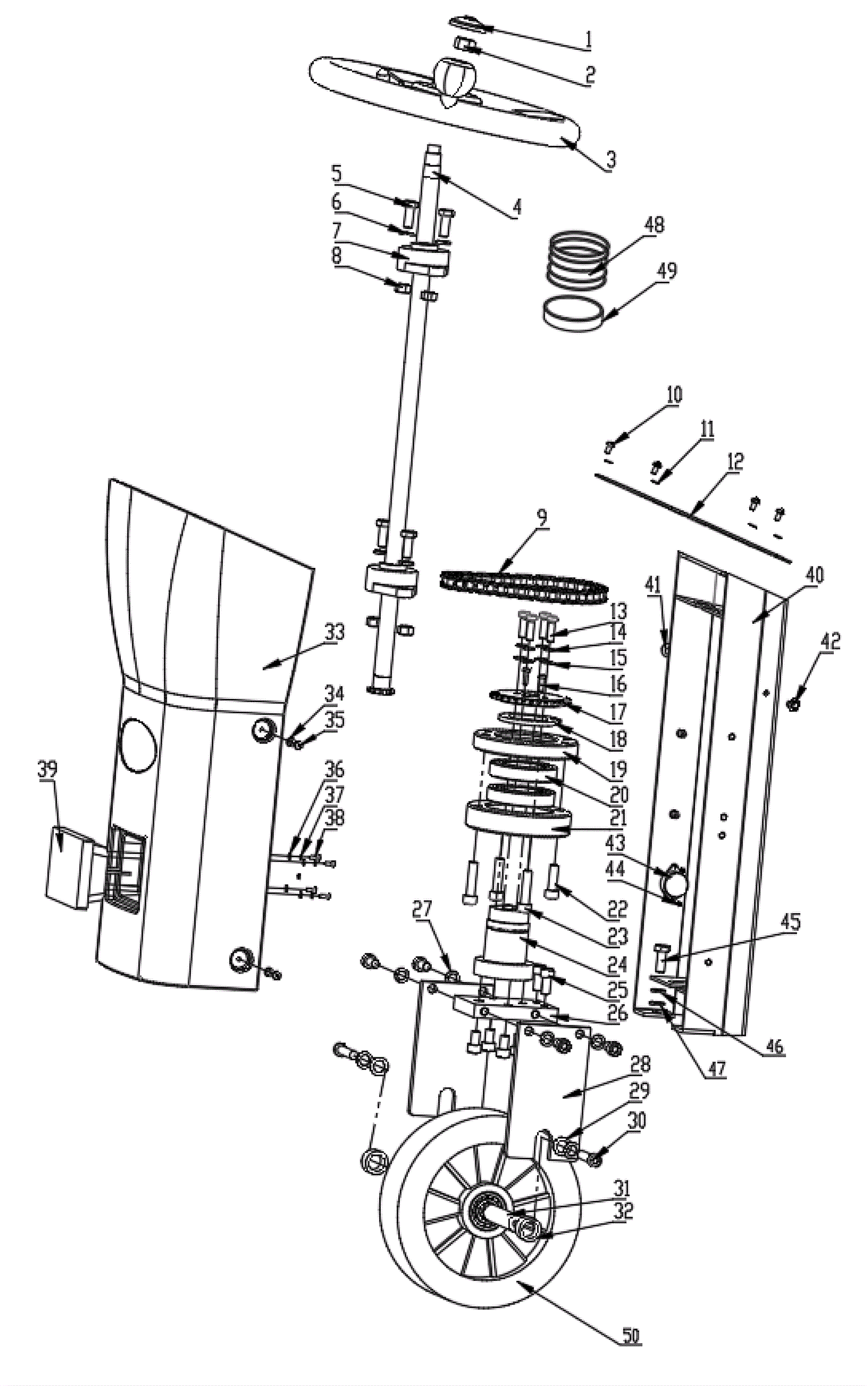

A9 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-0158 Steering wheel cap $0.90 1 usually ships 3-21 days
2 341-0159 Nut M14 $0.90 1 usually ships 3-21 days
3 341-0160 Steering wheel $55.09 1 usually ships 3-21 days
4 341-0161 Steering axle $141.79 1 usually ships 3-21 days
5 341-0139 Screw M10 x 25mm $0.90 4 usually ships 3-21 days
6 341-0141 Washer $0.90 4 usually ships 3-21 days
7 341-0162 Mounted bearings $5.51 2 usually ships 3-21 days
8 341-0163 Nut M10 lock $0.90 4 usually ships 3-21 days
9 341-0164 Chain $6.26 1 usually ships 3-21 days
10 341-0017 Screw M5 x 12mm stainless steel $0.90 4 ships same day
11 341-0074 Washer M5 $0.90 4 ships same day
12 341-0165 Control panel $18.69 1 usually ships 3-21 days
13 341-0166 Screw M8 x 20mm $0.90 4 usually ships 3-21 days
14 341-0044 Washer M8 lock stainless steel $0.90 4 ships same day
15 341-0011 Washer M8 stainless steel $0.90 4 ships same day
16 341-0055 Screw M8 x 55mm stainless steel $0.90 2 ships same day
17 341-0167 Gear $36.46 1 usually ships 3-21 days
18 341-0168 Plate $1.09 1 usually ships 3-21 days
19 341-0169 Flange bearing $72.92 1 usually ships 3-21 days
20 341-0170 Bearing $20.66 2 usually ships 3-21 days
21 341-0171 Flange bearing $76.97 1 usually ships 3-21 days
22 341-0172 Screw M10 x 30mm $1.17 1 usually ships 3-21 days
23 341-0173 Screw M10 x 40mm $1.34 3 usually ships 3-21 days
24 341-0174 Steering shaft $76.97 1 usually ships 3-21 days
25 341-0175 Screw M10 x 20mm $0.90 10 usually ships 3-21 days
26 341-0176 Plate $11.67 1 usually ships 3-21 days
27 341-0140 Washer M10 lock $0.90 6 usually ships 3-21 days
28 341-0177 Plate $11.02 2 usually ships 3-21 days
29 341-0178 Washer M10 $0.90 2 usually ships 3-21 days
30 341-0172 Screw M10 x 30mm $1.17 2 usually ships 3-21 days
31 341-0179 Drive wheel axle $6.08 1 usually ships 3-21 days
32 341-0180 Bushing $5.51 2 usually ships 3-21 days
33 341-0181 Cover $68.06 1 usually ships 3-21 days
34 341-0182 Washer M6 $0.90 4 usually ships 3-21 days
35 341-0183 Screw M5 x 35mm $0.90 4 usually ships 3-21 days
36 341-0074 Washer M5 $0.90 4 ships same day
37 341-0033 Washer M5 lock stainless steel $0.90 4 ships same day
38 341-0093 Silicone tube $0.90 4 usually ships 3-21 days
39 341-0184 18W light $16.83 1 usually ships 3-21 days
40 341-0185 Steering support $75.76 1 usually ships 3-21 days
41 341-0186 Horn switch $2.91 1 usually ships 3-21 days
42 341-0187 Head light switch $17.49 1 usually ships 3-21 days
43 341-0188 Buzzer $5.15 1 ships same day
44 341-0189 Screw M3 x 12mm $0.90 2 usually ships 3-21 days
45 341-0060 Screw M8 x 20mm stainless steel $0.90 4 ships same day
46 341-0044 Washer M8 lock stainless steel $0.90 4 ships same day
47 341-0011 Washer M8 stainless steel $0.90 4 ships same day
48 341-0190 Bellows $2.03 1 usually ships 3-21 days
49 341-0191 End cap $14.58 1 usually ships 3-21 days
50 341-0192 Front wheel $64.51 1 usually ships 3-21 days
