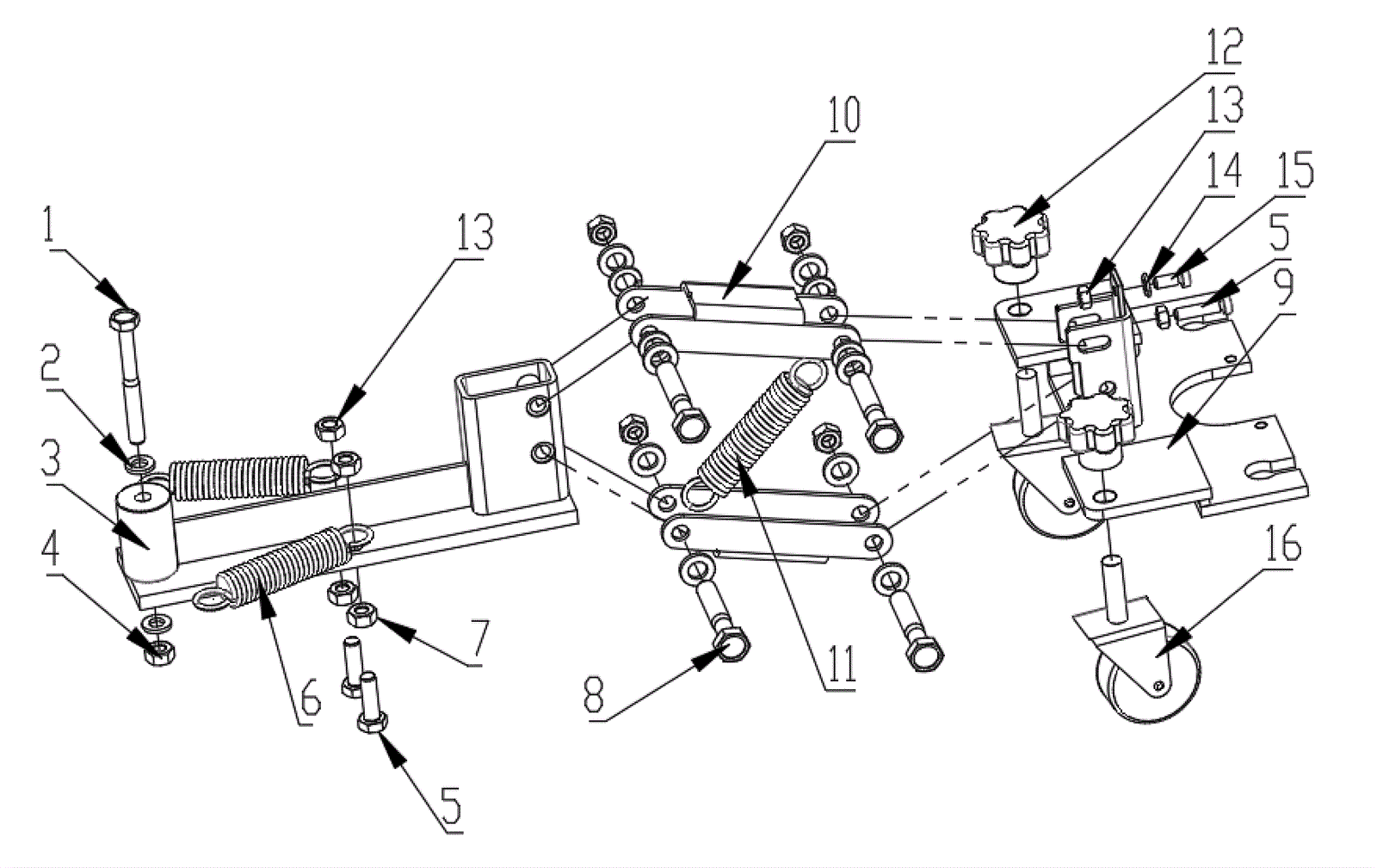

A9 Support Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-0149 Screw M8 x 80mm $1.13 1 usually ships 3-21 days
2 341-0011 Washer M8 stainless steel $0.90 10 ships same day
3 341-0150 Support $20.49 1 usually ships 3-21 days
4 341-0135 Nut M8 $0.90 5 ships same day
5 341-0133 Screw M6 x 25mm $0.90 3 usually ships 3-21 days
6 341-0151 Spring $0.90 2 usually ships 3-21 days
7 341-0015 Nut M6 stainless steel $0.90 3 ships same day
8 341-0039 Screw M8 x 45mm stainless steel $0.90 4 ships same day
9 341-0152 Coupling $18.69 1 usually ships 3-21 days
10 341-0153 Link $2.19 2 usually ships 3-21 days
11 341-0154 Spring $0.90 1 ships same day
12 341-0116 Squeegee knob $1.86 2 ships same day
13 341-0013 Nut lock stainless steel $0.90 3 ships same day
14 341-0064 Washer M6 stainless steel $0.90 1 ships same day
15 341-0055 Screw M8 x 55mm stainless steel $0.90 1 ships same day
16 341-0119 Caster wheel $4.44 2 ships same day
