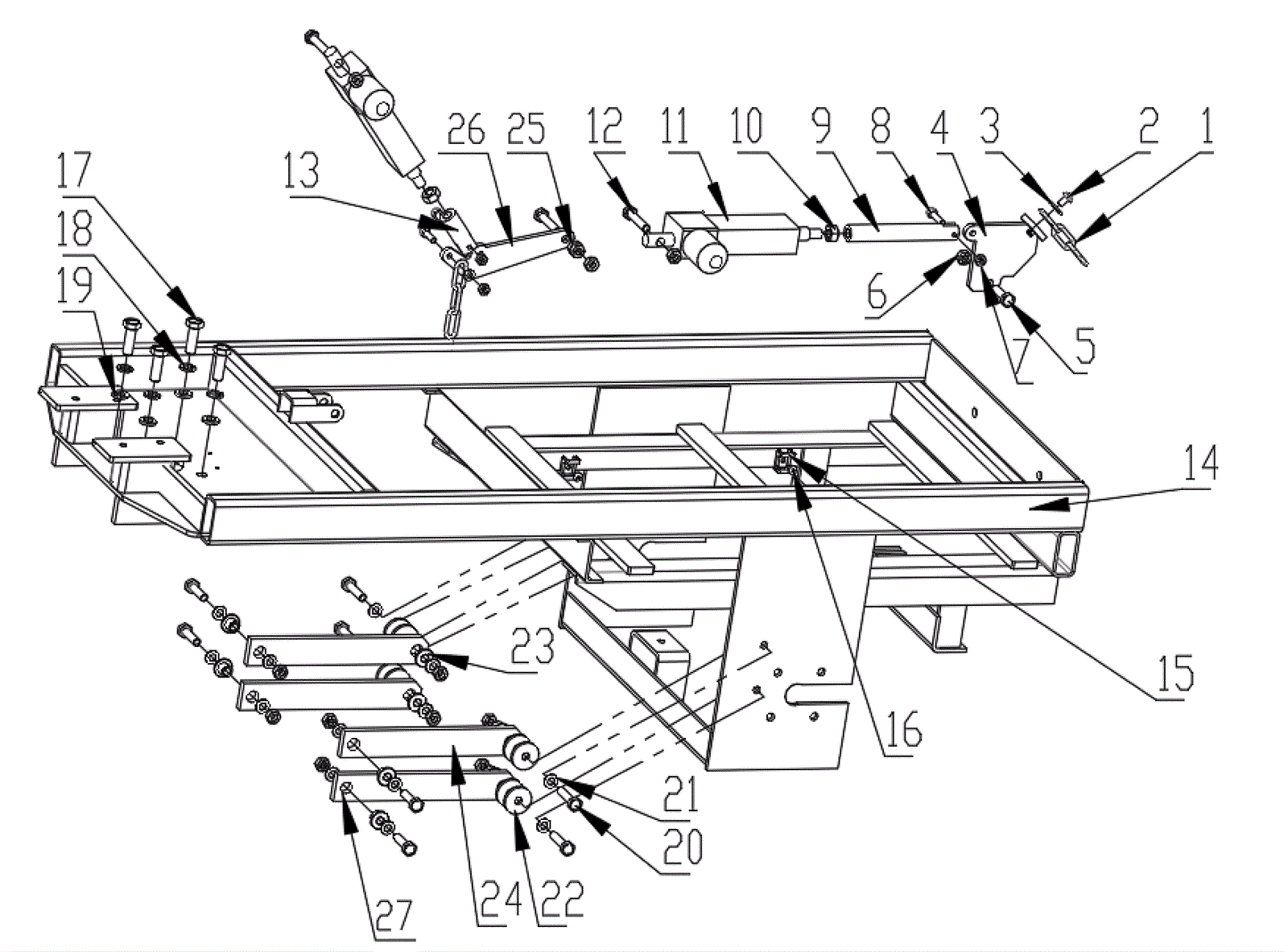

A9 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-0130 Chain $4.86 2 usually ships 3-21 days
2 341-0131 Screw M6 x 12mm $0.90 1 usually ships 3-21 days
3 341-0064 Washer M6 stainless steel $0.90 2 ships same day
4 341-0132 Plate $2.92 1 usually ships 3-21 days
5 341-0050 Screw M8 x 25mm stainless steel $0.90 1 ships same day
6 341-0036 Nut M8 lock stainless steel $0.90 12 usually ships 3-21 days
7 341-0013 Nut lock stainless steel $0.90 3 ships same day
8 341-0133 Screw M6 x 25mm $0.90 3 usually ships 3-21 days
9 341-0134 Connecting rod $18.64 1 usually ships 3-21 days
10 341-0135 Nut M8 $0.90 2 ships same day
11 341-0136 24V linear actuator $144.14 2 usually ships 3-21 days
12 341-0039 Screw M8 x 45mm stainless steel $0.90 3 ships same day
13 341-0137 Link $17.01 1 usually ships 3-21 days
14 341-0138 Base frame $352.93 1 usually ships 3-21 days
15 341-0088 Support plate $0.90 2 ships same day
16 341-0017 Screw M5 x 12mm stainless steel $0.90 2 ships same day
17 341-0139 Screw M10 x 25mm $0.90 4 usually ships 3-21 days
18 341-0140 Washer M10 lock $0.90 4 usually ships 3-21 days
19 341-0141 Washer $0.90 4 usually ships 3-21 days
20 341-0142 Screw M8 x 35mm $0.90 8 ships same day
21 341-0011 Washer M8 stainless steel $0.90 16 ships same day
22 341-0143 Gasket $5.27 8 usually ships 3-21 days
23 341-0144 Bushing $2.84 8 usually ships 3-21 days
24 341-0145 Arm $5.10 2 usually ships 3-21 days
25 341-0146 Nut M12 lock $0.90 2 usually ships 3-21 days
26 341-0147 Lever $1.82 1 usually ships 3-21 days
27 341-0148 Arm $12.40 1 usually ships 3-21 days
