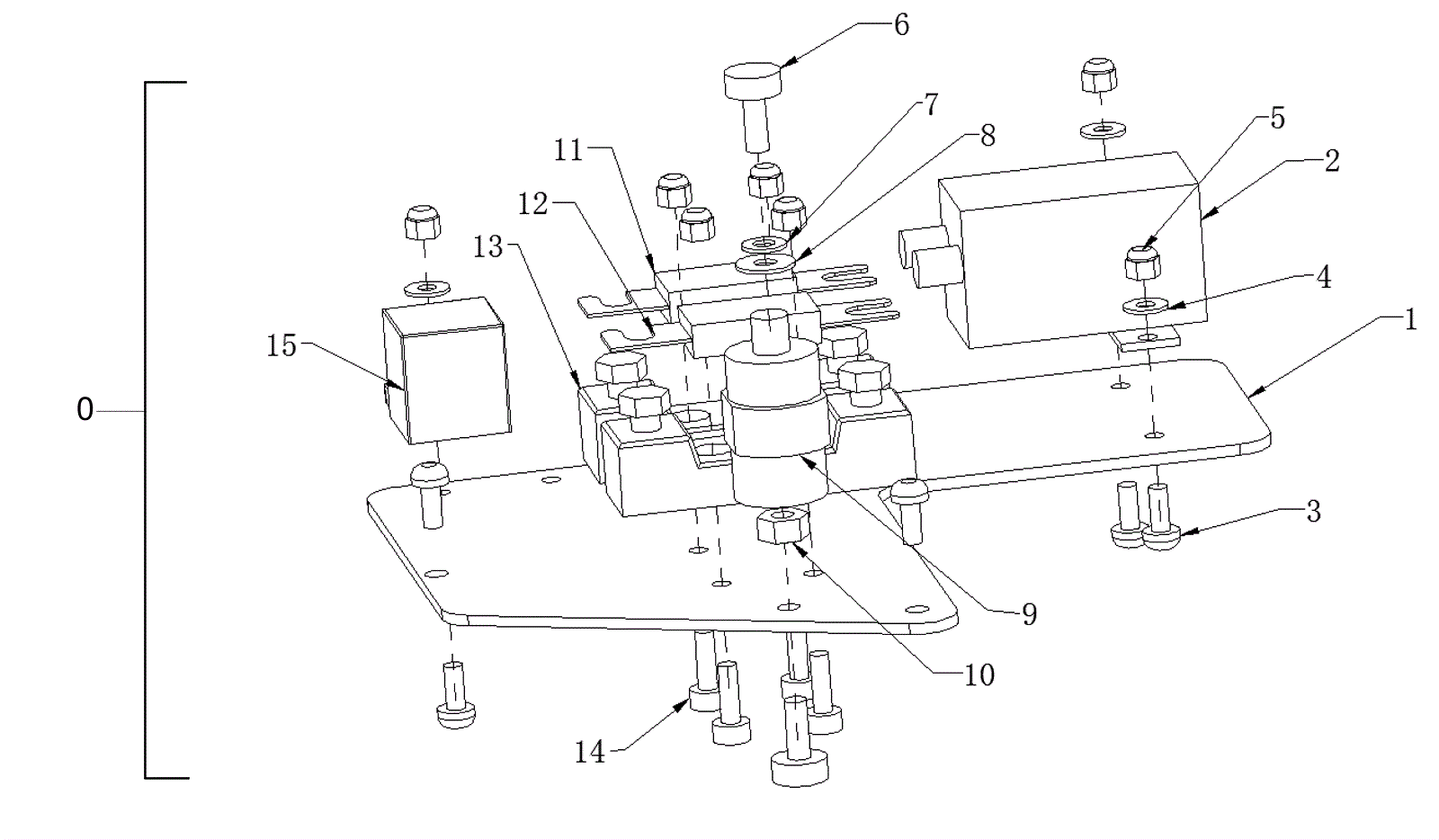

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
341-0004
|
Control board assembly |
$90.47
|
1 |
(includes 1-15) |
ships same day |
1 |
341-0062
|
Control panel plate |
$7.70
|
1 |
|
ships same day |
2 |
341-0063
|
24V contactor 100amp |
$50.53
|
1 |
|
ships same day |
3 |
341-0017
|
Screw M5 x 12mm stainless steel |
$0.90
|
6 |
|
ships same day |
4 |
341-0034
|
Washer M5 stainless steel |
$0.90
|
7 |
|
ships same day |
5 |
341-0035
|
Nut M5 lock stainless steel |
$0.99
|
7 |
|
ships same day |
6 |
341-0043
|
Screw M6 x 16mm stainless steel |
$0.90
|
2 |
|
ships same day |
7 |
341-0042
|
Washer M6 lock stainless steel |
$0.90
|
1 |
|
ships same day |
8 |
341-0064
|
Washer M6 stainless steel |
$0.90
|
1 |
|
ships same day |
9 |
341-0065
|
Insulation base |
$4.53
|
1 |
|
ships same day |
10 |
341-0015
|
Nut M6 stainless steel |
$0.90
|
1 |
|
ships same day |
11 |
341-0066
|
50amp fuse |
$3.24
|
1 |
|
ships same day |
12 |
341-0067
|
30amp fuse |
$3.09
|
1 |
|
ships same day |
13 |
341-0031
|
Fuse support |
$7.28
|
2 |
|
ships same day |
14 |
341-0032
|
Screw M5 x 16mm stainless steel |
$0.90
|
4 |
|
ships same day |
15 |
341-0068
|
Relay |
$5.84
|
1 |
|
ships same day |
