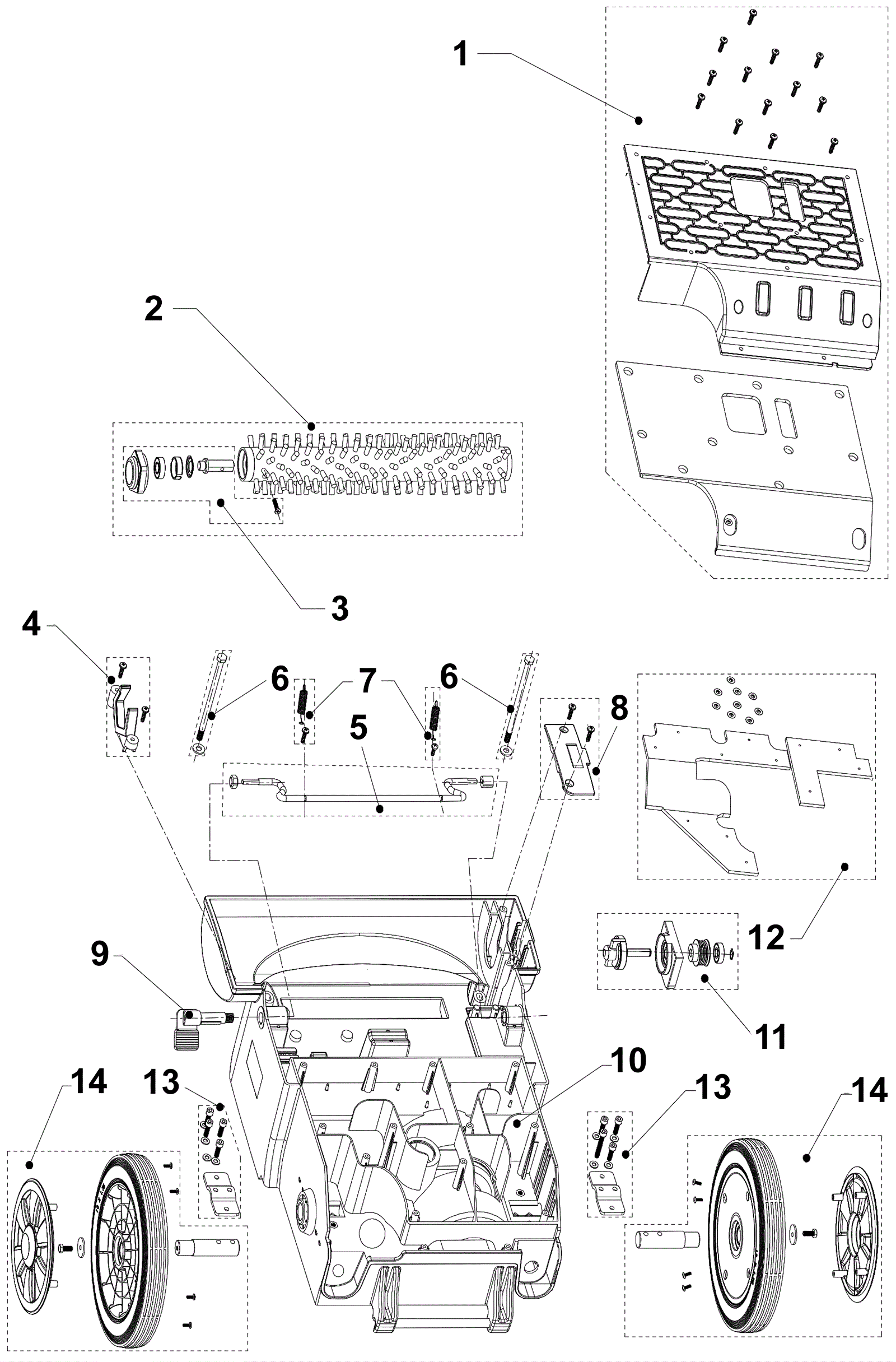

X16CE Bottom Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-1229 Bellows cover plate kit $28.66 1 usually ships 17-28 days
2 240-1230 Roller brush assembly kit $141.65 1 ships same day
3 240-1231 Roller brush shaft assembly kit $48.92 1 ships same day
4 240-1232 Roller brush mounting clip kit $5.78 1 ships same day
5 240-1233 Storage base kit $26.77 1 usually ships 17-28 days
6 240-1234 Locking water tank screw kit $12.00 2 ships same day
7 240-1235 Storage stand spring kit $5.50 2 usually ships 17-28 days
8 240-1236 Roller brush cover kit $10.56 1 usually ships 17-28 days
9 240-1237 Foot pedal $30.39 1 usually ships 17-28 days
10 240-1238 Bottom base $243.20 1 usually ships 17-28 days
11 240-1239 Driven pulley kit $69.01 1 ships same day
12 240-1240 Bottom mute sponge kit $7.67 1 usually ships 17-28 days
13 240-1241 Shaft pressing plate $6.37 2 usually ships 17-28 days
14 240-1242 Wheel assembly kit $71.92 2 usually ships 17-28 days
