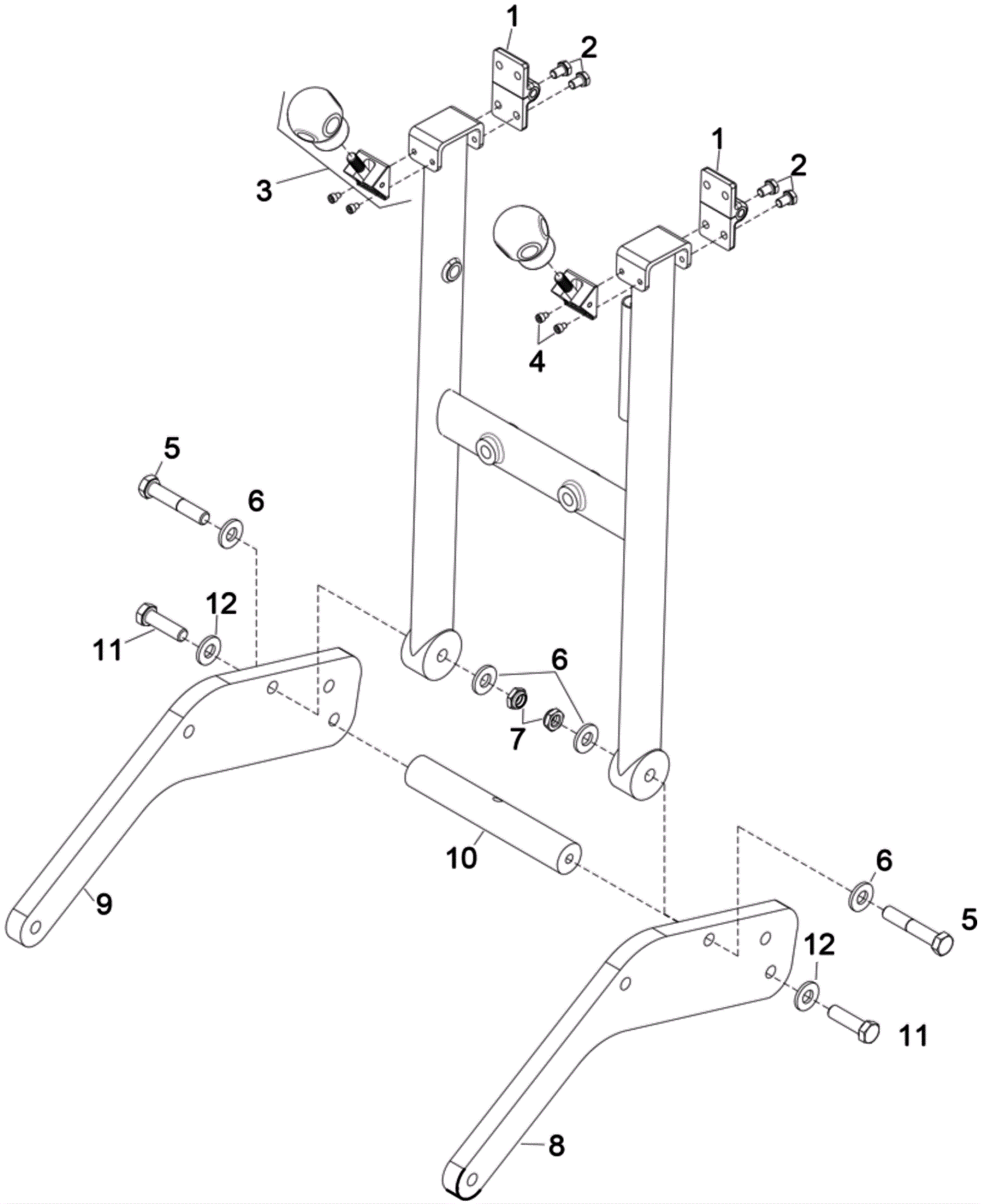

SPRAYBORG Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 326-0027 Handle hinge $57.74 2 usually ships 11-21 days
2 326-0028 Screw 5/16-24 x 1/2 inch hex head $1.52 8 usually ships 11-21 days
3 326-0029 Lower latch $108.91 2 usually ships 11-21 days
4 999-1635 Screw 10-32 x 1/4 socket set $0.99 4 ships same day
5 326-0030 Lower handle screw $5.85 2 usually ships 11-21 days
6 326-0031 Washer $0.99 4 usually ships 11-21 days
7 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
8 326-0032 Left hand plate arm $238.04 1 usually ships 11-21 days
9 326-0033 Right hand plate arm $401.58 1 usually ships 11-21 days
10 326-0034 Brace rod $113.56 1 usually ships 11-21 days
11 326-0035 Screw 1/2-13 x 2 inch hex head $3.81 2 usually ships 11-21 days
12 326-0036 Washer $0.99 2 usually ships 11-21 days
