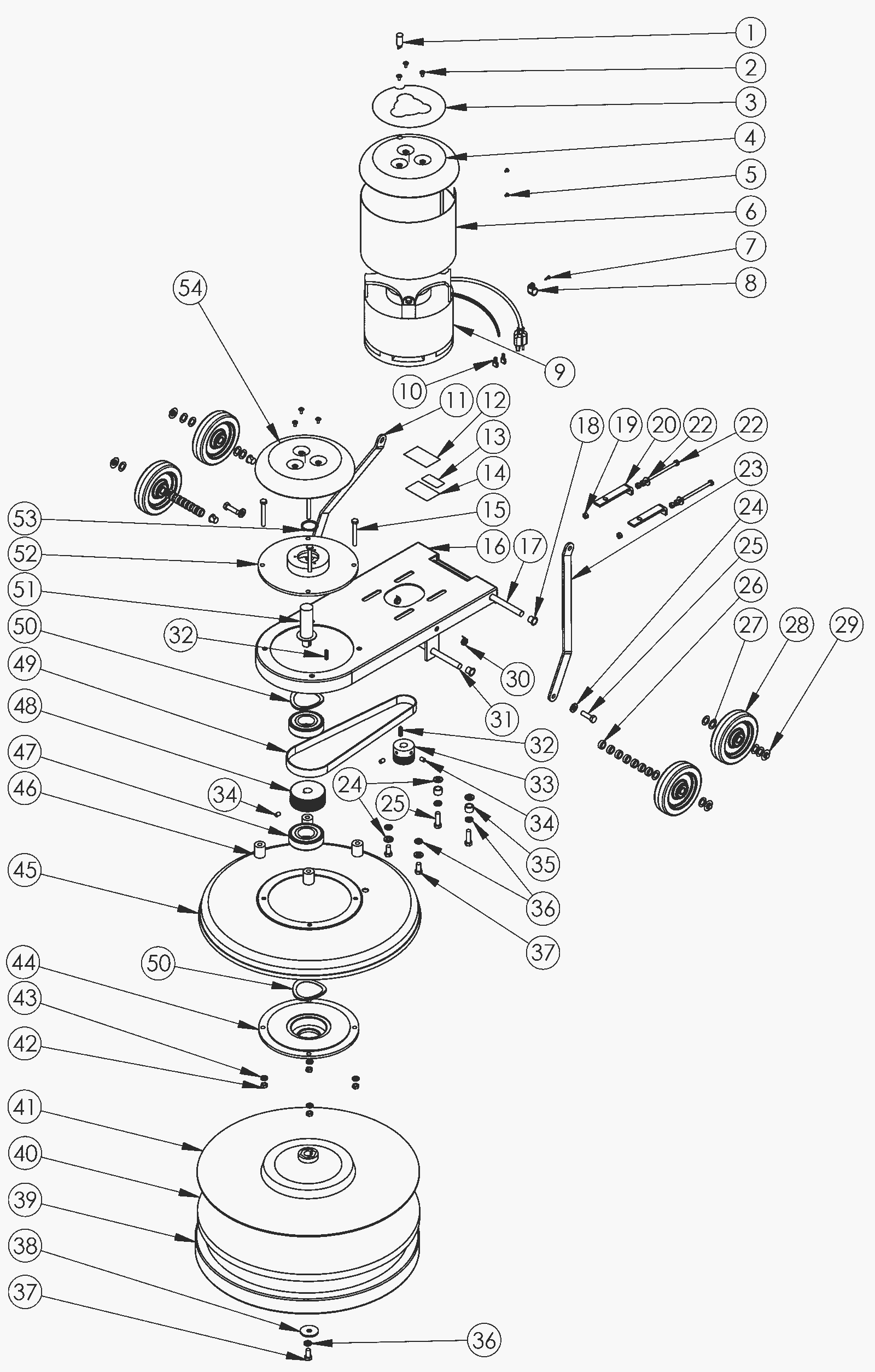

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-5699
|
Motor carbon brush wear light |
1 |
|
|
2 |
203-5700
|
Screw 10-32 x 3/8 phillips |
6 |
|
|
3 |
203-5701
|
Drip cpver saturn decal |
1 |
|
|
4 |
203-5702
|
Chrome with hole for green light drip cover |
1 |
|
|
5 |
203-5703
|
Screw #8 x 1/4 pan head |
2 |
|
|
6 |
203-5704
|
Motor screen |
1 |
|
|
7 |
203-5705
|
Screw #8 x 1/2 pan head sheet metal |
1 |
|
|
8 |
203-5694
|
7/16 inch Nylon cable clamp |
1 |
|
|
9 |
203-5706
|
High speed motor |
1 |
|
|
10 |
203-5689
|
Female terminal lug 1/4 x 1/32 |
2 |
|
|
11 |
203-5707
|
Left hand handle brace |
1 |
|
|
12 |
203-5708
|
Cover serial decal |
1 |
|
|
13 |
203-5709
|
Decal |
1 |
|
|
14 |
203-5710
|
Standard serial decal |
1 |
|
|
15 |
203-5711
|
Bolt 5/16-18 x 2 1/2 hex head |
4 |
|
|
16 |
203-5712
|
Motor frame (black) |
1 |
|
|
17 |
203-5713
|
Handle axle |
1 |
|
|
18 |
203-5714
|
1/2 inch Nylon bushing |
4 |
|
|
19 |
203-5715
|
Nut 1/4-20 hex |
6 |
|
|
20 |
203-5764
|
Tension adjustment bracket |
2 |
|
|
21 |
203-5717
|
Washer 1/4 flat |
2 |
|
|
22 |
203-5718
|
Bolt 1/4-20 x 3 1/2 hex tap |
2 |
|
|
23 |
203-5719
|
Right hand handle brace |
1 |
|
|
24 |
203-5690
|
Washer3/8 flat |
6 |
|
|
25 |
203-5720
|
Bolt 3/8 x 1 1/4 hex tap |
4 |
|
|
26 |
203-5721
|
Nylon spacer 1/4 LG |
14 |
|
|
27 |
999-0588
|
Washer 7/8 flat stainless steel |
12 |
|
|
28 |
221-0324
|
5 inch wheel |
4 |
|
|
29 |
203-5724
|
1/2 inch Push-on cap nut |
4 |
|
|
30 |
203-5682
|
Blaclk oxide thin locknut |
2 |
|
|
31 |
203-5725
|
Wheel axle |
1 |
|
|
32 |
203-5726
|
3/16 inch Motor key |
2 |
|
|
33 |
203-5727
|
Pulley |
1 |
|
|
34 |
203-5728
|
5/16 inch Set screw |
3 |
|
|
35 |
203-5729
|
1/2 inch Spacer |
2 |
|
|
36 |
203-5730
|
3/8 Split lockwasher |
5 |
|
|
37 |
203-5731
|
Hex tap bolt 3-8 x 1/4 inch |
3 |
|
|
38 |
203-5732
|
1 1/4 inch steel washer |
1 |
|
|
39 |
203-5733
|
20 inch Floor machine bumper |
1 |
|
|
40 |
203-5734
|
20 inch Hi speed pad |
1 |
|
|
41 |
203-5735
|
20 inch high speed pad holder |
1 |
|
|
42 |
203-5736
|
Hex nut 31-18 |
4 |
|
|
43 |
203-5737
|
1/32 Split lockwasher |
4 |
|
|
44 |
203-5738
|
Lower bearing plate |
1 |
|
|
45 |
203-5739
|
20 inch Stainless brush cover |
1 |
|
|
46 |
203-5740
|
Floor machine base spacer |
4 |
|
|
47 |
203-5741
|
Bearing |
2 |
|
|
48 |
203-5765
|
3 1/8 inch Pulley with grooves |
1 |
|
|
49 |
203-5743
|
Belt |
1 |
|
|
50 |
203-5744
|
Wave washer |
2 |
|
|
51 |
203-5745
|
4 1/8 inch Shaft |
1 |
|
|
52 |
203-5746
|
Upper plate bearing |
1 |
|
|
53 |
203-5747
|
Retaining ring |
1 |
|
|
54 |
203-5748
|
Drip cover (grey) |
1 |
|
|
