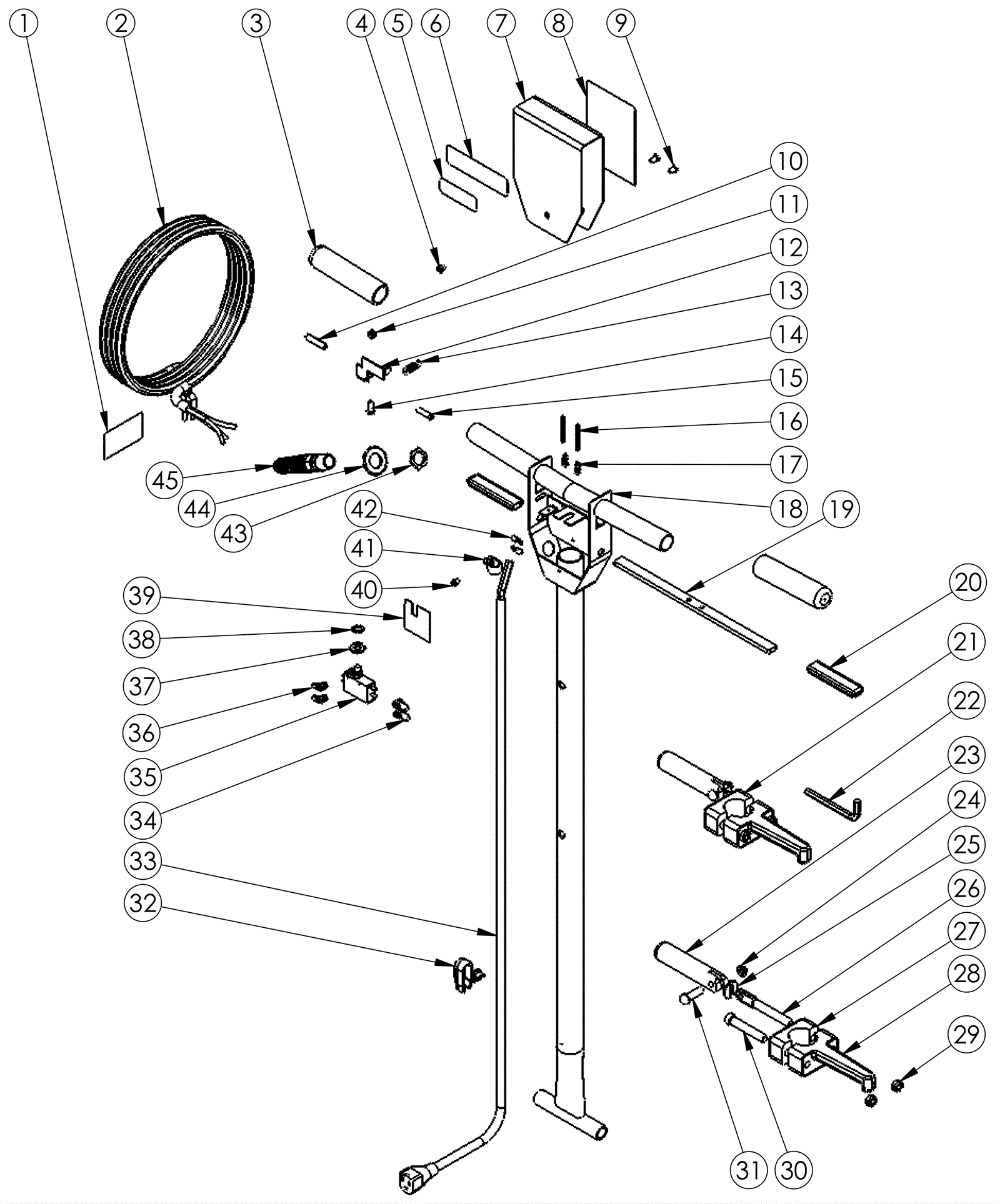

B1500 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5654 Important cord decal Call for price 1 usually ships 5-15 days
2a 203-5655 12/3 75 foot power cord $220.74 1 (OEM) usually ships 5-15 days
2b 991-4010 Strainer Cap (OBSOLETE) $11.28 1 (NON-OEM) usually ships 1-5 days
3 203-5656 Grip $5.50 2 usually ships 5-15 days
4 203-5657 Screw 10-32 x 1/4 inch Call for price 1 usually ships 5-15 days
5 203-5658 Saturn 2000 RPM decal Call for price 1 usually ships 5-15 days
6 203-5659 EDIC decal (black-silver) Call for price 1 usually ships 5-15 days
7 203-5660 Switch box cover (black) Call for price 1 usually ships 5-15 days
8 203-5661 Floor machine safety decal Call for price 1 usually ships 5-15 days
9 203-5662 Screw 10-32 x 3/8 inch $1.69 2 usually ships 5-15 days
10 203-5663 Lockout lever grip (black) $0.99 1 usually ships 5-15 days
11 203-5664 Nut 10-32 nylon locking stainless steel $0.99 1 usually ships 5-15 days
12 203-5665 Lockout bracket $5.79 1 usually ships 5-15 days
13 203-5666 Lockout spring Call for price 1 usually ships 5-15 days
14 203-5667 Screw 10-32 x 5/8 truss head stainless steel $1.10 1 usually ships 5-15 days
15 203-5668 Screw 10-32 x 1 inch stainless steel Call for price 1 usually ships 5-15 days
16 203-5669 Roll pin 1/8 x 1 3/4 inch Call for price 2 usually ships 5-15 days
17 203-5670 Trigger spring $1.10 2 usually ships 5-15 days
18 203-5671 Floor machine chrome handle Call for price 1 usually ships 5-15 days
19 203-5672 Zinc plated trigger Call for price 1 usually ships 5-15 days
20 203-5673 Trigger lever grip (black) Call for price 2 usually ships 5-15 days
21 203-5674 Cord hook assembled locking handle $159.91 1 usually ships 5-15 days
22 203-5675 5/16 inch Allen wrench Call for price 1 usually ships 5-15 days
23 203-5676 Locking clamp handle $55.63 1 usually ships 5-15 days
24 203-5677 Nut 5/16 push on $2.82 1 usually ships 5-15 days
25 203-5678 Slotted zinc washer Call for price 1 usually ships 5-15 days
26 203-5679 Bolt 3/8-16 x 4 spade $31.77 1 usually ships 5-15 days
27 203-5680 Cord hook clamp $62.92 1 usually ships 5-15 days
28 203-5681 Cord hook body $66.10 1 usually ships 5-15 days
29 203-5682 Blaclk oxide thin locknut $1.69 2 usually ships 5-15 days
30 203-5683 Screw 3/8-16 x 2 1/2 socket cap Call for price 1 usually ships 5-15 days
31 203-5684 Dowel pin 5/16 x 1 1/2 inch $4.16 1 usually ships 5-15 days
32 203-5685 Handle strain relief $3.10 1 usually ships 5-15 days
33 203-5686 14/3 SJTW handle cord $15.15 1 usually ships 5-15 days
34 203-5687 Female nylon terminal lug $1.32 2 usually ships 5-15 days
35 203-5688 Pushbutton DPST switch $43.74 1 usually ships 5-15 days
36 203-5689 Female terminal lug 1/4 x 1/32 $0.99 2 usually ships 5-15 days
37 203-5690 Washer3/8 flat Call for price 1 usually ships 5-15 days
38 203-5691 Washer 3/8 star lock Call for price 1 usually ships 5-15 days
39 203-5692 Switch insulation $1.30 1 usually ships 5-15 days
40 203-5693 Screw 10-32 x 3/8 ground Call for price 1 usually ships 5-15 days
41 203-5694 7/16 inch Nylon cable clamp Call for price 1 usually ships 5-15 days
42 203-5695 #10 Center ring terminal Call for price 2 usually ships 5-15 days
43 203-5696 Metal strain relief nut Call for price 1 usually ships 5-15 days
44 203-5697 Washer 1/32 ID x 1 1/2 OD $3.52 1 usually ships 5-15 days
45 203-5698 Metal strain relief $53.78 1 usually ships 5-15 days
