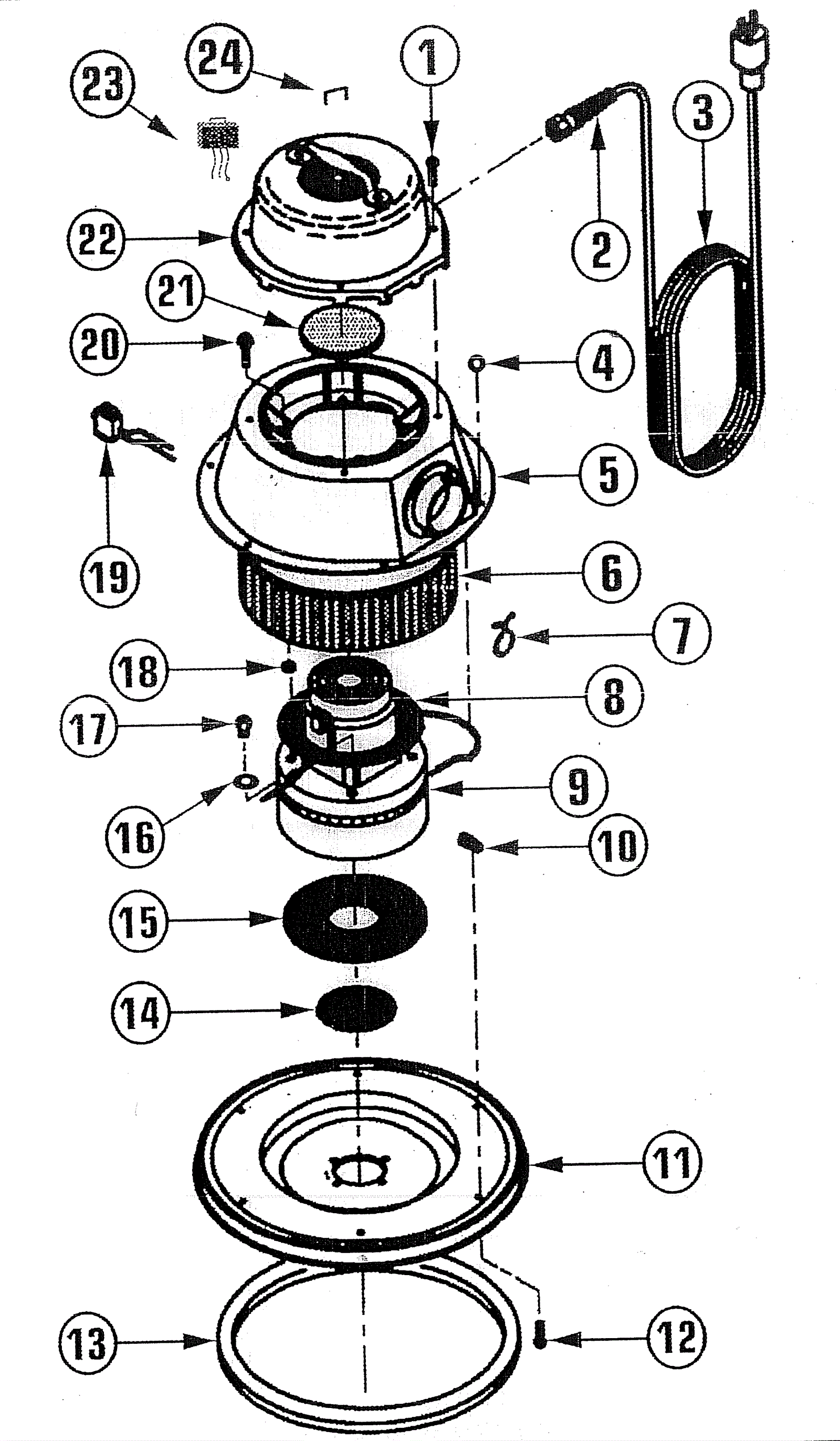

P4710HVAF-R Electric Motor Head Assembly

#PartDescriptionPriceReqNotesAvailability
0 295-3071 Dome assembly $45.10 1 usually ships 9-26 days
1 195-8427 Screw $0.99 4 usually ships 9-26 days
2 195-8384 Strain relief black plastic $11.88 1 usually ships 1-5 days
3 195-6616 18/3 power cord 30 foot $82.54 1 ships same day
4 195-6331 Nut 8-32 nylon lock $1.49 6 usually ships 9-26 days
5 195-8439 Lower dome assembly $58.40 1 ships same day
6 195-7453 Lower dome foam liner $15.60 1 usually ships 1-5 days
7 195-9205 Small purse lock $1.78 1 usually ships 1-5 days
8 195-9348 Gasket $13.13 1 usually ships 9-26 days
9 195-8687 120V vacuum motor $336.51 1 usually ships 9-26 days
10 295-1617 Wire connector $1.78 3 usually ships 9-26 days
11 295-4080 12 inch cover $48.40 1 usually ships 9-26 days
12 295-0207 Screw #8-32 x .38 phillip $1.78 6 usually ships 1-5 days
13 295-0214 Circle gasket $23.91 1 usually ships 9-26 days
14 195-8431 Screen $8.32 1 usually ships 9-26 days
15 195-8429 Gasket $14.33 1 usually ships 9-26 days
16 195-9172 Washer $1.78 1 usually ships 9-26 days
17 195-9597 Screw 10-32 x .31 phillips $1.78 1 usually ships 9-26 days
18 195-6326 Washer nylon $1.49 4 usually ships 9-26 days
19 195-9605 Sealed switch $17.16 1 usually ships 9-26 days
20 195-9235 Screw hex head $1.78 4 usually ships 1-5 days
21 295-1939 Silencing disc Call for price 1 usually ships 1-5 days
22 195-8437 Upper dome assembly $66.66 1 ships same day
23 295-1487 Electrical convenience outlet $7.48 1 usually ships 1-5 days
24 295-1490 Clip retainer $4.68 1 usually ships 9-26 days
