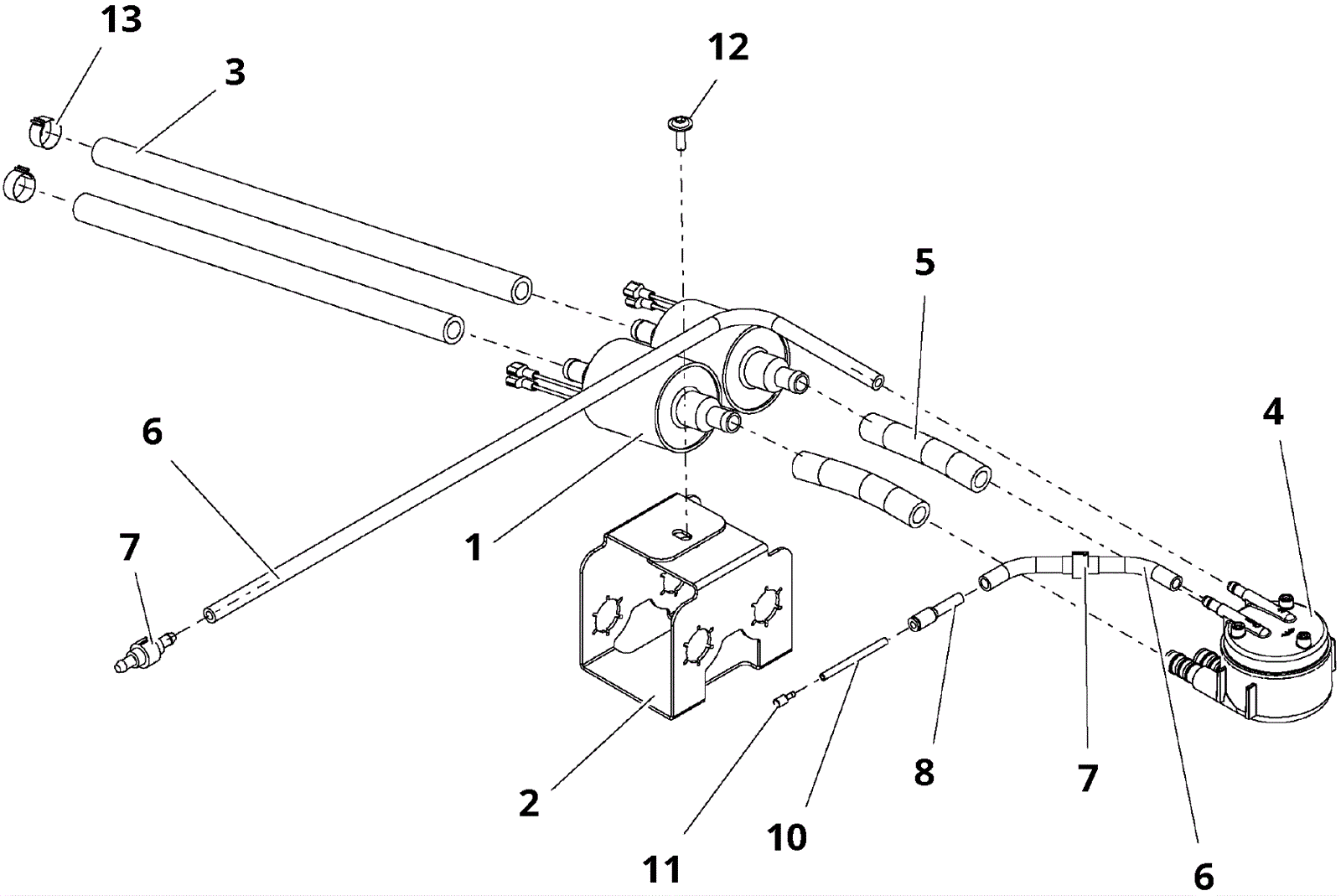

SWINGO 2100 Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-5845 24V pump $157.47 2 ships same day
2 292-5700 Holder $8.06 1 usually ships 30-75 days
3a 192-0404 Wire reinforced hose (sold by the inch) $0.99 12 in ships same day
3b 192-0404 Wire reinforced hose (sold by the inch) $0.99 15 in ships same day
4 292-8507 Housing assembly $16.61 1 ships same day
5 192-4461 Tygon hose (sold by the inch) $1.46 7 in usually ships 30-75 days
6a 192-4344 Hose (sold by the inch) $3.74 55 in usually ships 30-75 days
6b 192-4344 Hose (sold by the inch) $3.74 4 in usually ships 30-75 days
7 192-1601 Check valve $27.42 2 ships same day
9 192-9824 Connector $15.53 1 usually ships 30-75 days
10 292-5581 Pipe (OBSOLETE) Call for price 32 in usually ships 1-5 days
11 292-0145 Plug $9.23 1 usually ships 30-75 days
12 292-5492 Screw M6 x 16 cheese head $2.44 1 (series 2) usually ships 30-75 days
13 192-4370 Hose clamp $2.76 2 (series 2) usually ships 30-75 days
