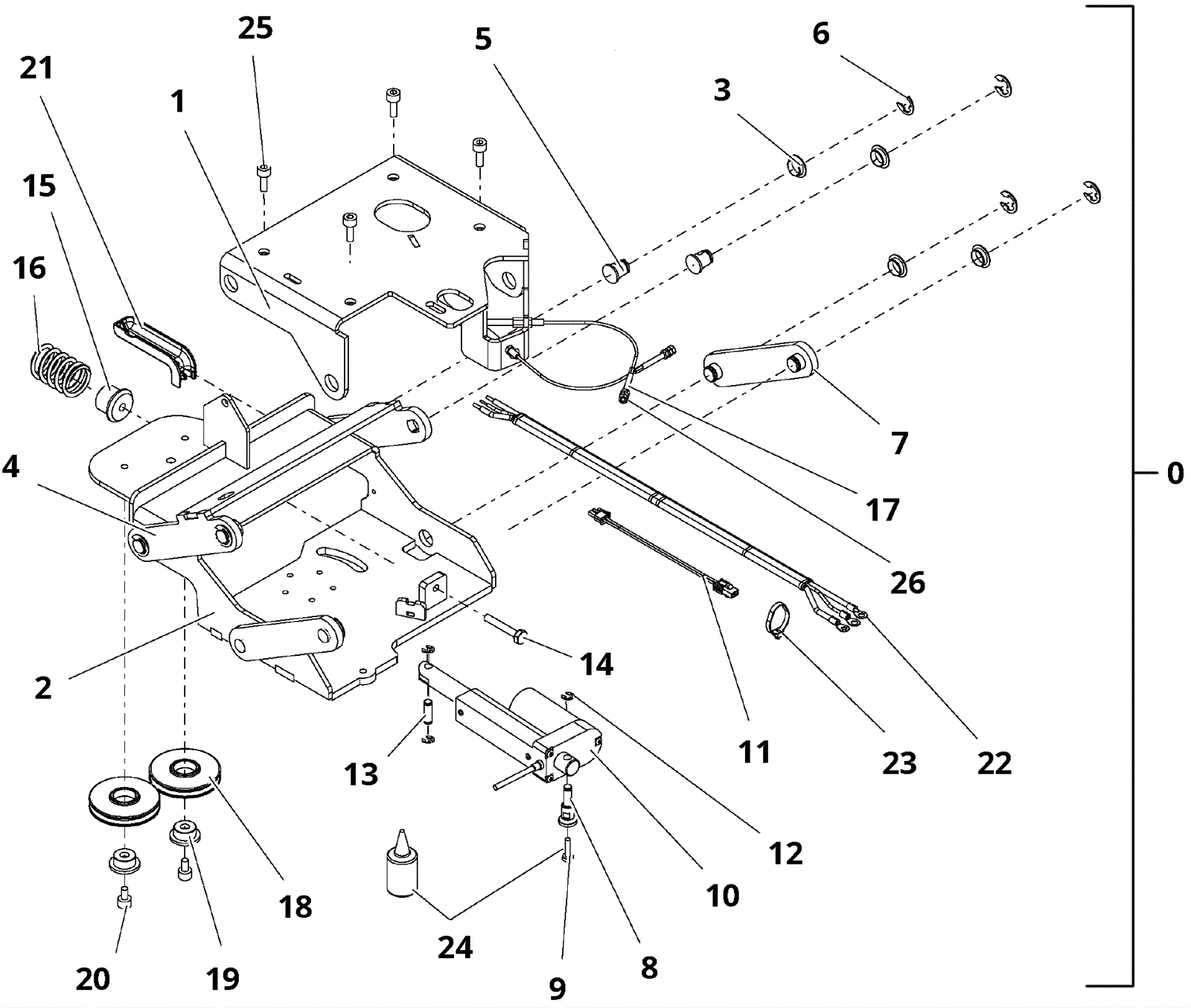

SWINGO 2100 Brush Lowering Unit Assembly

#PartDescriptionPriceReqNotesAvailability
0a 292-5686 Brush lowering unit complete $1,787.23 1 (series 1) (includes 1-22a, 23-24) ships same day
0b 292-9106 Brush lowering unit (OBSOLETE) Call for price 1 (series 2) (includes 1-21, 22b-26) usually ships 30-75 days
1 292-5508 Bracket weldment $114.85 1 usually ships 1-5 days
2 292-5509 Bracket weldment $222.05 1 usually ships 1-5 days
3 192-9351 Grommet $2.44 8 ships same day
4 292-5510 Support $55.26 1 usually ships 1-5 days
5 192-9766 Bolt $15.09 4 ships same day
6 192-2776 Snap ring $2.44 8 ships same day
7 292-5511 Lever $154.09 2 usually ships 30-75 days
8 292-5512 Flange bolt $17.95 1 usually ships 30-75 days
9 192-4222 Screw M6 x 20 hex head $3.18 1 ships same day
10 192-9185 Squeegee actuator $366.48 1 usually ships 30-75 days
11 292-5684 Wire harness $37.37 1 usually ships 30-75 days
12 192-0840 Snap ring $2.44 3 ships same day
13 192-9183 Axle $8.01 1 usually ships 30-75 days
14 192-0605 Screw 8 x 45 hex $4.71 1 usually ships 1-5 days
15 292-5513 Flange bolt $18.19 1 usually ships 30-75 days
16 292-8487 Pressure spring $10.25 1 usually ships 30-75 days
17 292-8488 Metal rope $69.96 2 usually ships 30-75 days
18 292-5514 Pulley $2.44 2 usually ships 30-75 days
19 292-0136 Flanged bushing $13.99 2 ships same day
20 192-0364 Screw M8 x 12mm socket head $2.52 2 (qty 3 series 1) usually ships 30-75 days
21 292-5515 Plate $4.10 1 usually ships 30-75 days
22a 292-8597 Wiring harness $41.76 1 (series 1) usually ships 30-75 days
22b 292-5685 Wire harness $2.44 1 (series 2) usually ships 30-75 days
23 192-0102 7 3/4 inch cable tie $2.44 5 usually ships 30-75 days
24 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 3 ships same day
25 192-0036 Screw M8 x 20mm socket head $2.44 4 (series 2) ships same day
26 192-0195 Nut M5 hex $2.44 4 (series 2) ships same day
N/S 192-6485 Screw M5 x 8mm socket head cap $2.44 5 (included with 0a) (series 1) usually ships 30-75 days
