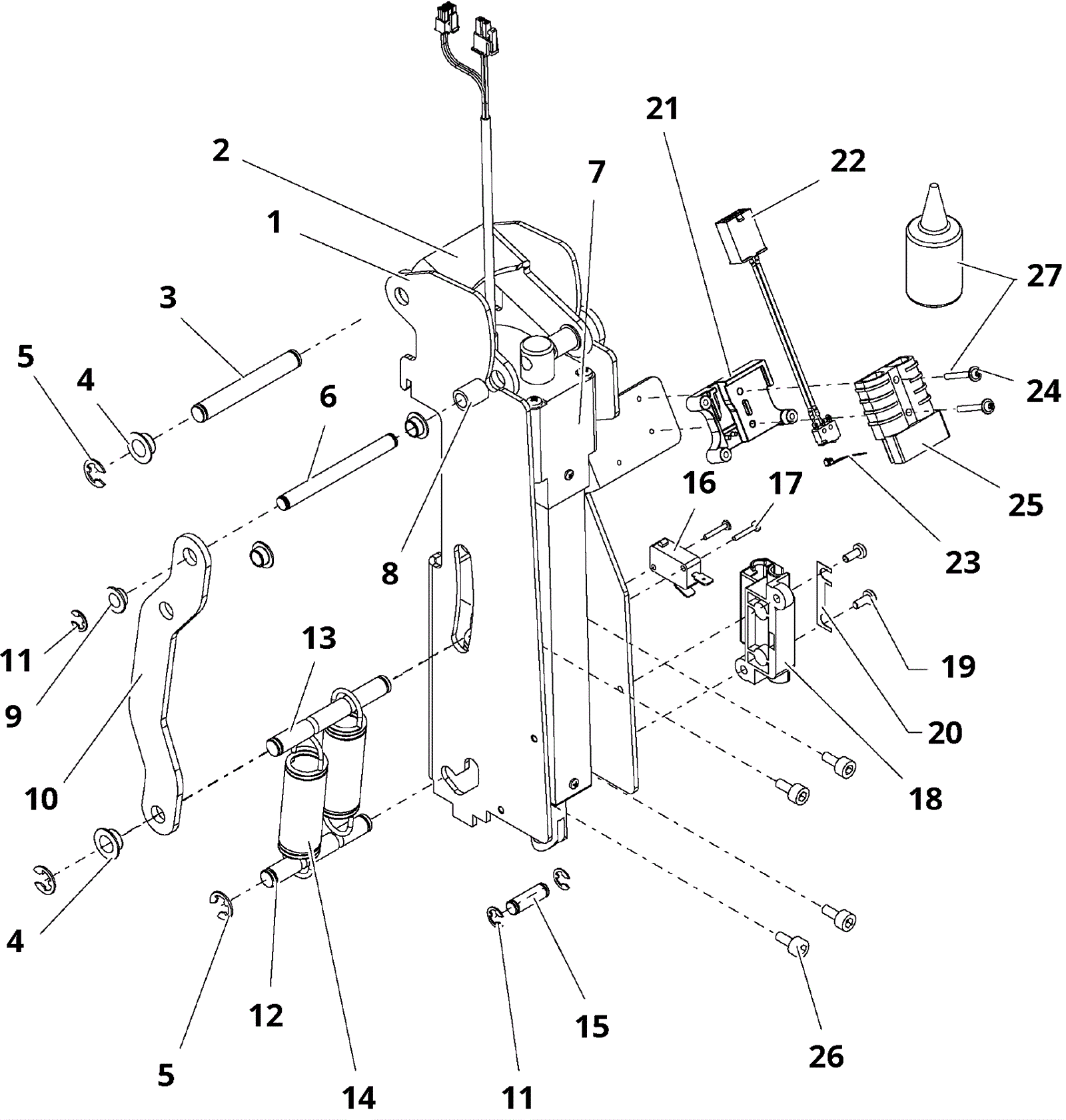

SWINGO 2100 Lowering Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1a 292-5586 Holder $57.75 1 (series 1) usually ships 1-5 days
1b 292-5678 Holder Call for price 1 (series 2) usually ships 24-40 days
2 292-0875 Lever $13.75 1 (series 2) usually ships 24-40 days
3 292-5679 Axle $15.63 1 (series 2) usually ships 24-40 days
4 192-0784 Slide bearing $2.44 4 usually ships 24-40 days
5 192-0086 Snap ring $2.44 6 (series 2) ships same day
6 292-5680 Axle (OBSOLETE) $19.61 1 (series 2) usually ships 24-40 days
7 292-8490 Actuator $501.59 1 ships same day
8 292-5591 Bushing $2.44 2 usually ships 24-40 days
9 192-6448 Slide bearing $6.42 6 ships same day
10 292-5681 Shackle $10.99 2 (series 2) usually ships 24-40 days
11 192-0840 Snap ring $2.44 4 ships same day
12 292-5682 Axle Call for price 1 (series 2) usually ships 24-40 days
13 292-5683 Axle Call for price 1 (series 2) usually ships 24-40 days
14 292-0388 Tension spring $10.75 2 (series 2) ships same day
15 192-9183 Axle $8.01 1 usually ships 24-40 days
16 192-0681 Microswitch $13.51 1 (series 2) ships same day
17 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 (series 2) ships same day
18 292-0680 Fuse holder $21.00 1 (series 2) usually ships 24-40 days
19 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 (series 2) usually ships 24-40 days
20 192-0872 50amp fuse strip $1.24 1 (series 2) ships same day
21 292-5584 Support $2.44 1 (series 2) (non BMS) (used for 7523409, 7523418 and 7524919) usually ships 1-5 days
22 292-5604 Cable $76.63 1 (series 2) (non BMS) (used for 7523409, 7523418 and 7524919) usually ships 24-40 days
23 192-8784 Switch lever $21.98 1 (series 2) (non BMS) (used for 7523409, 7523418 and 7524919) ships same day
24 292-5585 Screw M3 x 25 cheese head $2.68 2 (series 2) (non BMS) (used for 7523409, 7523418 and 7524919) usually ships 1-5 days
25 192-1266 50amp charger plug SB50 $5.47 1 (series 2) ships same day
26 192-0506 Screw M6 x 12mm socket head $2.44 4 (series 2) usually ships 24-40 days
27 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (series 2) (non BMS) (used for 7523409, 7523418 and 7524919) usually ships 12-18 days
N/S 292-5587 Cradle $38.17 1 (series 1) usually ships 1-5 days
N/S 292-5588 Cradle $47.86 1 (series 1) usually ships 1-5 days
N/S 292-5589 Disc $10.09 2 (series 1) usually ships 24-40 days
N/S 292-5590 Bolt $10.81 1 (series 1) usually ships 24-40 days
