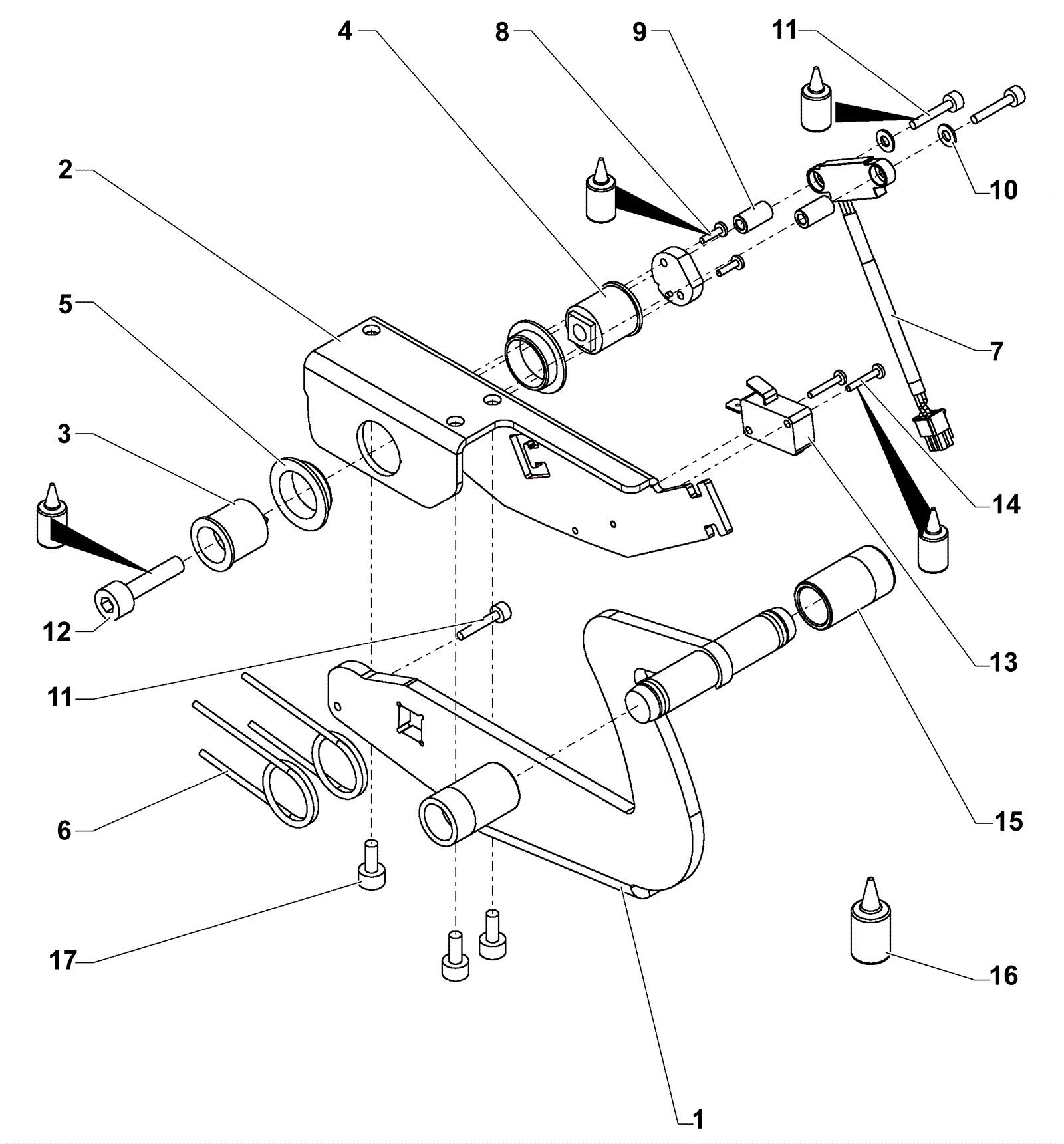

SWINGO 2100 Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5502 Pedal $42.56 1 usually ships 1-5 days
2 292-5503 Support $27.84 1 usually ships 1-5 days
3 292-5504 Axle $21.12 1 usually ships 30-75 days
4 292-5505 Axle $28.20 1 usually ships 1-5 days
5 192-9744 Slide bearing $2.56 2 ships same day
6 192-9756 Torsion spring $2.44 2 usually ships 30-75 days
7 292-8486 Sensor $243.66 1 usually ships 30-75 days
8 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
9 292-5506 Bushing $13.07 2 usually ships 1-5 days
10 192-1195 Washer M4 $2.44 2 ships same day
11 192-1105 Screw M4 x 20mm socket head $2.44 3 usually ships 1-5 days
12 192-0603 Screw hex $4.28 1 usually ships 30-75 days
13 192-0681 Microswitch $13.51 1 ships same day
14 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
15 292-5507 Bushing $2.44 2 usually ships 1-5 days
16 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
17 192-0506 Screw M6 x 12mm socket head $2.44 3 (series 2) usually ships 30-75 days
