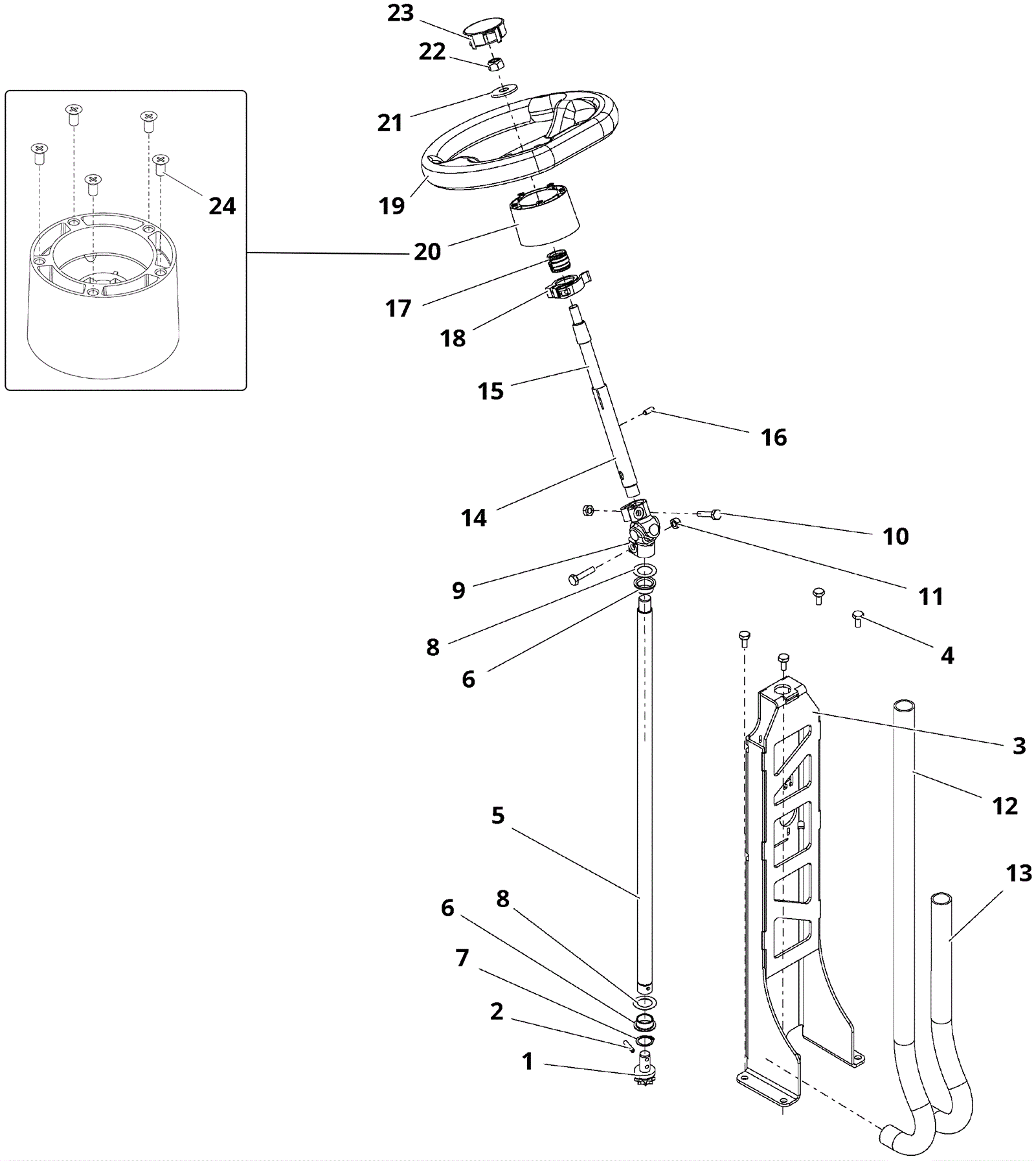

SWINGO 2100 Guidance Hub Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-1075 Chain wheel $51.49 1 (series 2) usually ships 19-25 days
2 192-1076 Extensible pin 5 x 24 $5.97 1 (series 2) usually ships 19-25 days
3 292-5486 Support $156.66 1 usually ships 1-5 days
4 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
5 292-5487 Rod $89.95 1 usually ships 1-5 days
6 192-1044 Slide bearing $3.54 2 ships same day
7 192-0807 Retaining ring $2.56 1 usually ships 19-25 days
8 192-1077 Spacer disc $2.56 2 usually ships 19-25 days
9 192-1069 Cross joint $127.90 1 (series 2) usually ships 19-25 days
10 192-0835 Screw M8 x 35mm hex head $3.93 2 (qty 4 for series 1) usually ships 19-25 days
11 192-0510 Nut M8 self locking $2.56 2 (qty 4 for series 1) ships same day
12 192-9834 Hose (sold by the inch) $0.99 34 in usually ships 19-25 days
13 192-9834 Hose (sold by the inch) $0.99 18 in usually ships 19-25 days
14 292-5533 Pipe $44.48 1 usually ships 1-5 days
15 292-5534 Rod $37.43 1 ships same day
16 292-5535 Heavy type dowel pin $2.56 1 ships same day
17 292-5536 Bushing $4.43 1 ships same day
18 292-5537 Clamp $14.10 1 ships same day
19 292-5538 Steering wheel $210.21 1 usually ships 19-25 days
20 292-5539 Hub assembly $43.29 1 (includes 24) usually ships 19-25 days
21 192-1078 Washer $0.89 1 ships same day
22 192-1049 Nut M12 self locking $3.85 1 ships same day
23 292-5540 Cover $9.69 1 usually ships 1-5 days
24 192-2994 Screw M5 x 10 countersunk head $2.56 5 usually ships 1-5 days
