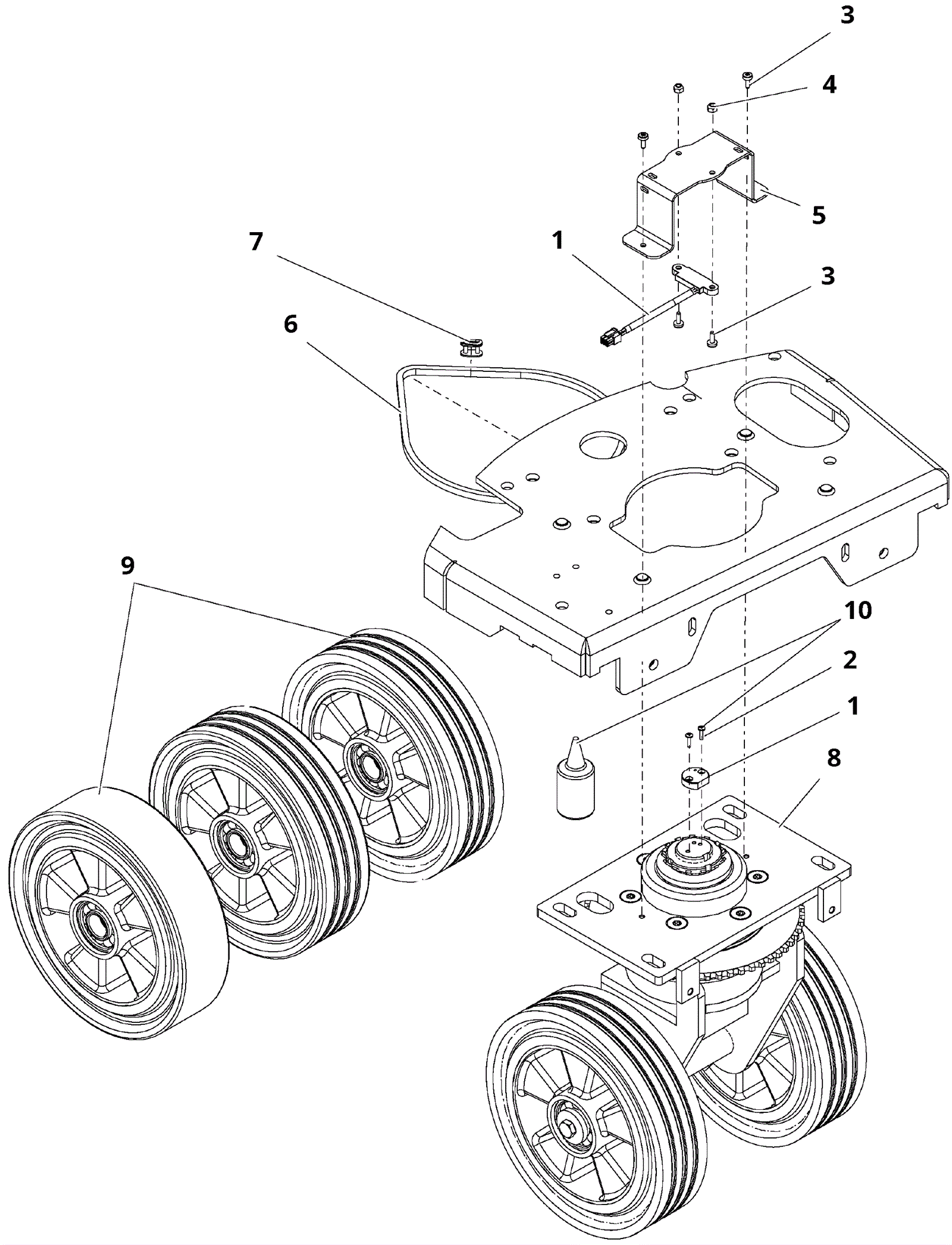

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
292-8485
|
Sensor |
$245.18
|
1 |
|
usually ships 24-40 days |
2 |
192-0003
|
Screw M3 x 10mm raised head |
$1.13
|
2 |
|
ships same day |
3 |
192-6347
|
Screw M4 x 10mm self tapping form |
$2.44
|
4 |
|
usually ships 24-40 days |
4 |
192-0235
|
Nut M4 self locking |
$2.44
|
2 |
|
ships same day |
5 |
292-5485
|
Holder |
$14.17
|
1 |
|
usually ships 24-40 days |
6 |
292-8484
|
Roller chain 3/8 x 7/32-61 inch |
$21.12
|
1 |
|
usually ships 24-40 days |
7 |
192-1217
|
3/8 inch chain master link |
$2.44
|
1 |
|
usually ships 24-40 days |
8a |
292-5483
|
Steering Unit |
$1,394.68
|
1 |
(includes 9a, 9c, 9e) |
usually ships 24-40 days |
8b |
292-1073
|
Steering unit |
Call for price
|
1 |
(includes 9b, 9d, 9f) |
usually ships 24-40 days |
9a |
292-8492
|
Drive wheel (gray) |
$192.80
|
2 |
(series 1) |
ships same day |
9b |
192-1080
|
Wheel |
$204.64
|
2 |
(series 2) |
ships same day |
9c |
292-8493
|
Drive wheel (brown) |
$545.13
|
2 |
(series 1) |
usually ships 24-40 days |
9d |
292-8482
|
Wheel (brown) |
$187.18
|
2 |
(series 2) |
usually ships 24-40 days |
9e |
292-8494
|
Drive wheel (red) |
$487.82
|
2 |
(series 1) |
usually ships 24-40 days |
9f |
292-8483
|
Wheel (red) |
$169.60
|
2 |
(series 2) |
usually ships 24-40 days |
10 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
$55.00
|
1 |
|
usually ships 12-18 days |
