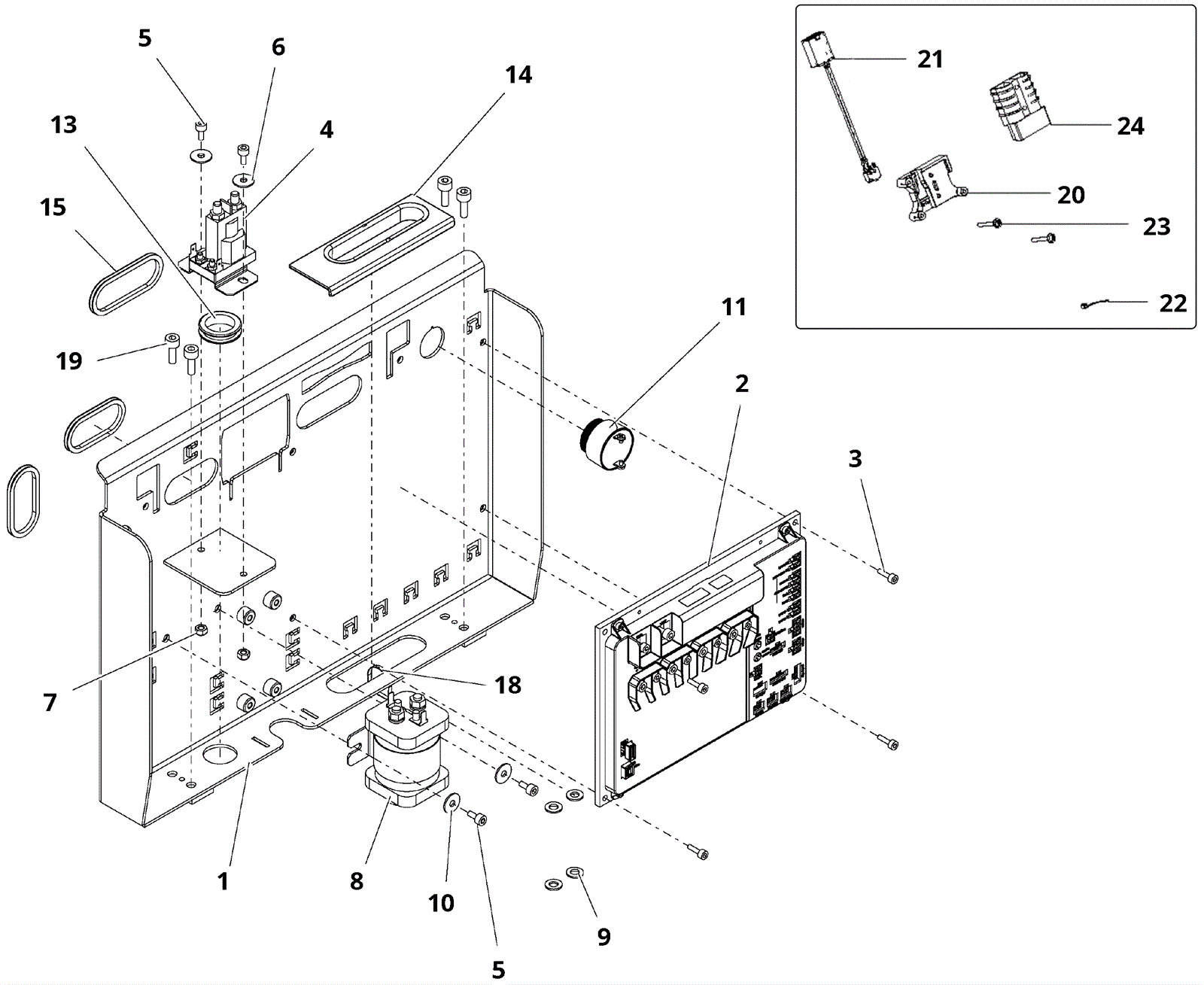

SWINGO 2100 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5582 Support $256.23 1 usually ships 1-5 days
2 292-8478 Electronics $1,643.17 1 ships same day
3 192-6479 Screw M5 x 16mm socket head $2.44 4 usually ships 24-40 days
4 192-9202 Relay $99.76 1 ships same day
5 192-0506 Screw M6 x 12mm socket head $2.44 8 (qty 12 for series 1) usually ships 24-40 days
6 192-7421 Washer $2.44 2 usually ships 24-40 days
7 192-0563 Nut M6 self-locking $2.44 2 ships same day
8 292-8479 Drive relay $326.74 1 usually ships 24-40 days
9 192-0105 Washer M8 $2.44 4 ships same day
10 192-7421 Washer $2.44 2 usually ships 24-40 days
11 292-0681 Horn $20.58 1 ships same day
13 192-1082 Grommet $2.44 1 usually ships 24-40 days
14 292-5583 Cable protection $4.76 1 usually ships 1-5 days
15a 192-9725 Bumper profile (sold by the inch) $17.17 8 inches usually ships 1-5 days
15b 192-9725 Bumper profile (sold by the inch) $17.17 7 inches usually ships 1-5 days
15c 192-9725 Bumper profile (sold by the inch) $17.17 7 inches usually ships 1-5 days
18 192-0102 7 3/4 inch cable tie $2.44 10 usually ships 24-40 days
19 192-0036 Screw M8 x 20mm socket head $2.44 4 (series 2) ships same day
20 292-5584 Support $2.44 1 (series 1) (used for 7523409 and 7523418) usually ships 1-5 days
21 292-5604 Cable $76.63 1 (series 1) (used for 7523409 and 7523418) usually ships 24-40 days
22 192-8784 Switch lever $21.98 1 (series 1) (used for 7523409 and 7523418) ships same day
23 292-5585 Screw M3 x 25 cheese head $2.68 2 (series 1) (used for 7523409 and 7523418) usually ships 1-5 days
24 192-1266 50amp charger plug SB50 $5.47 1 (series 1) (used for 7523419, 7523420, 7523421, 7523422, 7523423, 7523424, 7523492 and 7524243) ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (series 1) (used for 7523409 and 7523418) usually ships 12-18 days
