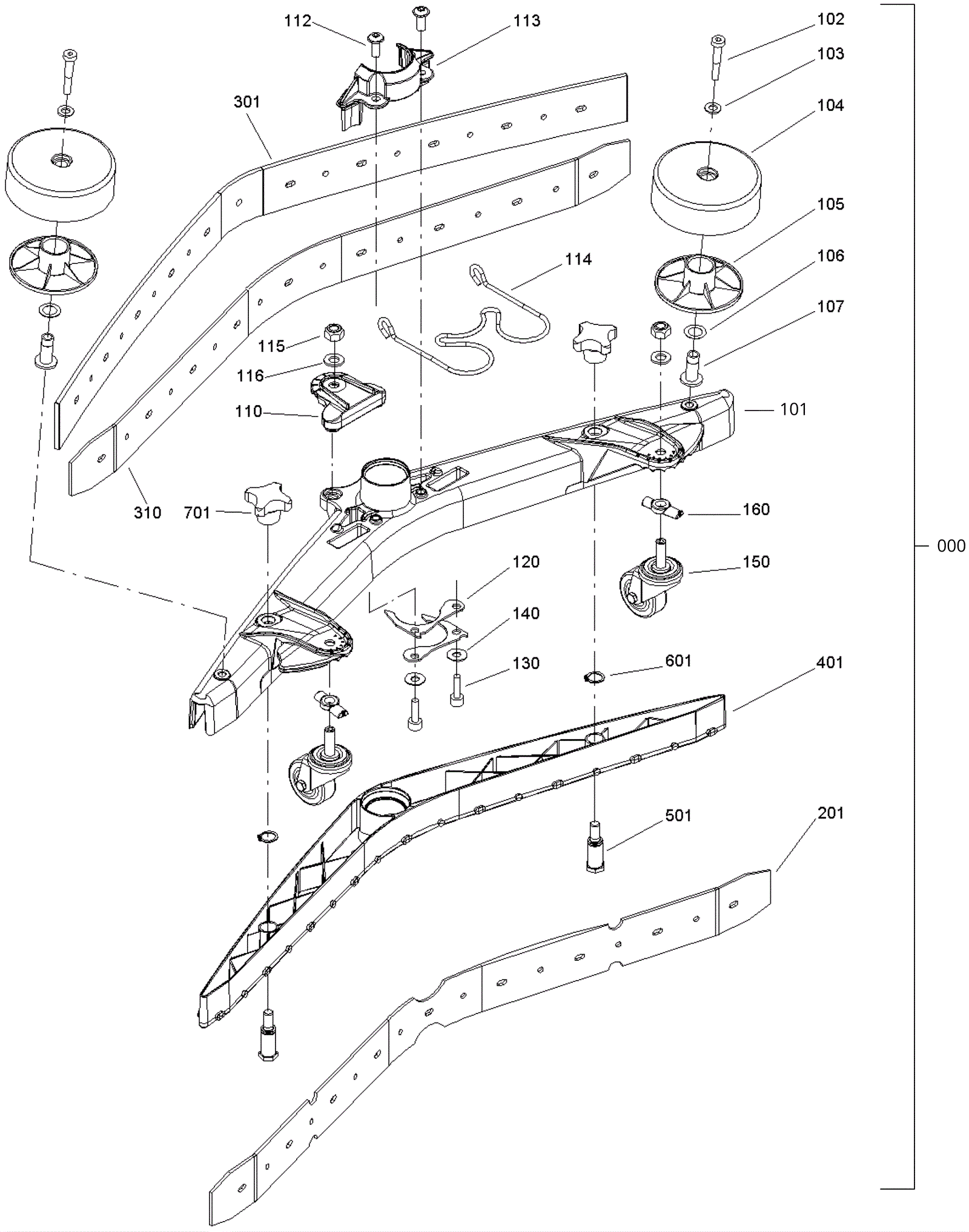

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
292-5665
|
Squeegee assembly |
1 |
(includes 101-701) |
|
101 |
292-5662
|
Squeegee weldment |
1 |
|
|
102 |
192-0104
|
Screw M8 x 45mm socket head cap |
2 |
|
|
103 |
192-0105
|
Washer M8 |
2 |
|
|
104 |
192-1397
|
Guide wheel |
2 |
|
|
105 |
192-0108
|
Retaining disc |
2 |
|
|
106 |
192-1344
|
Wave washer |
2 |
|
|
107 |
192-1354
|
Bushing |
2 |
|
|
110 |
292-5664
|
Adapter |
1 |
|
|
112 |
192-1524
|
Screw M8 x 20mm flange socket head |
2 |
|
|
113 |
192-9515
|
Cover |
1 |
|
|
114 |
192-9516
|
Click spring |
1 |
|
|
115 |
192-6339
|
Nut M10 self locking |
3 |
|
|
116 |
192-0496
|
Washer M10 |
3 |
|
|
120 |
292-8549
|
Hook |
2 |
|
|
130 |
192-0278
|
Screw M8 x 25mm socket head |
2 |
|
|
140 |
192-7424
|
Washer 8.4/20 |
2 |
|
|
150 |
292-8548
|
Caster wheel |
3 |
|
|
160 |
292-8550
|
Locking bolt |
3 |
|
|
201a |
192-1483
|
Squeegee blade 32 1/4 inch front |
1 |
|
|
201b |
292-8031
|
Squeegee blade |
1 |
(optional) |
|
301a |
192-1484
|
Squeegee blade 33 3/4 inch rear |
1 |
|
|
301b |
292-8032
|
Squeegee blade |
1 |
(optional) |
|
310 |
192-9563
|
Squeegee blade front |
1 |
(option) |
|
401 |
292-5663
|
Squeegee retainer |
1 |
|
|
501 |
292-0005
|
Screw M10 hex head |
2 |
|
|
601 |
192-0075
|
Retaining ring |
2 |
|
|
701 |
292-0004
|
Star knob |
2 |
|
|
