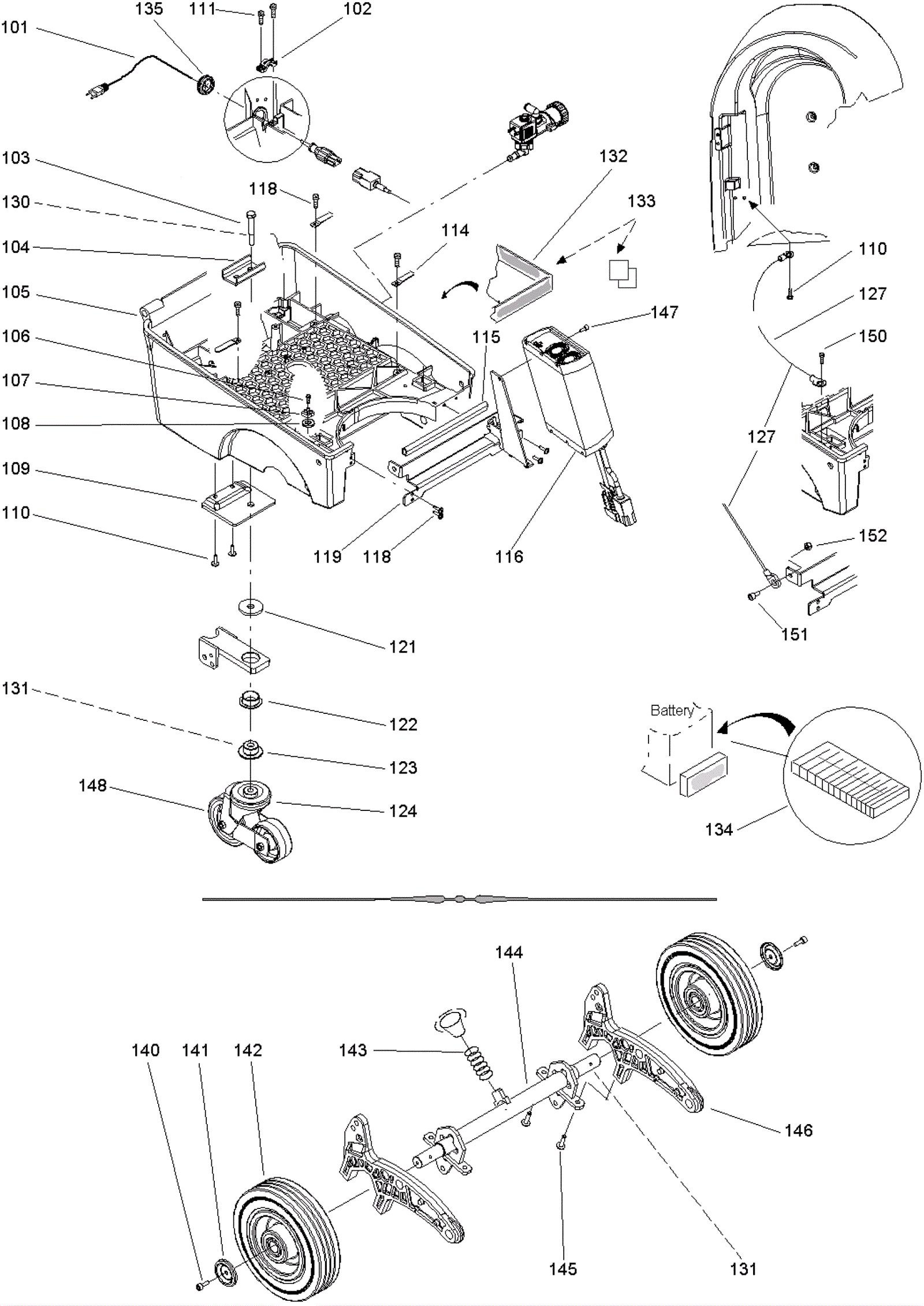

SWINGO 455B Lower Base Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9973 Onboard charger cord $58.08 1 ships same day
102 192-2496 Cable clamp $2.56 1 usually ships 24-40 days
103 192-4218 Screw M12 x 30mm hex head $2.56 1 ships same day
104 192-1517 Reinforcement plate $3.66 1 usually ships 24-40 days
105 192-2753 Chassis $348.61 1 usually ships 24-40 days
106 192-0549 Screw KA 35 x 20 $2.56 1 ships same day
107a 192-2896 3 way connection block $3.97 1 (series 1) ships same day
107b 192-0260 2-way connection block $2.95 1 (series 2) ships same day
108 192-0705 Washer $2.56 1 usually ships 24-40 days
109 192-9529 Bracket $10.08 1 usually ships 24-40 days
110 192-1561 Screw 60 x 20 torx head $2.56 3 ships same day
111 192-5462 Screw M3.5 x 20mm pan head tap $2.56 2 usually ships 24-40 days
114 192-2791 Clamp $2.56 4 usually ships 1-5 days
115 192-2351 Bumper (sold by the inch) $7.51 8 in usually ships 24-40 days
116 292-8595 24V 13Ah onboard battery charger $574.20 1 (BMS) ships same day
118 192-1571 Screw M50 x 16mm $2.56 8 ships same day
119a 292-8606 Charger bracket (swingo 455B) $132.90 1 (BMS) ships same day
119b 192-9974 Support $24.35 1 (non BMS) usually ships 1-5 days
121 192-7394 Washer M13 $19.49 1 ships same day
122 192-9507 Slide bearing $6.61 1 ships same day
123 192-9530 Bushing $20.33 1 ships same day
124 192-9000 Caster wheel assembly (rust) $122.69 1 ships same day
127 192-2742 Metal rope $3.16 1 usually ships 1-5 days
130 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 usually ships 12-18 days
131 192-1872 Grease $11.99 1 ships same day
132 192-7167 Battery tray $52.77 1 usually ships 24-40 days
133 192-9533 Wet battery tray kit $141.44 1 usually ships 1-5 days
134 192-9238 Spacer set $11.54 1 ships same day
135 292-5561 Membrane $4.82 1 usually ships 24-40 days
140 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
141 192-3077 Disk $4.24 2 ships same day
142a 192-2672 Wheel $89.87 2 ships same day
142b 192-9975 Wheel $142.90 2 (optional) ships same day
143 192-5687 Pressure spring $11.15 1 ships same day
144 192-1782 Axle $108.08 1 usually ships 24-40 days
145 192-1561 Screw 60 x 20 torx head $2.56 4 ships same day
146 192-3209 Cradle $15.00 2 ships same day
147 192-0407 Screw M5 x 10mm socket head cap $0.89 1 ships same day
148 292-8621 Wheel $37.82 1 (optional) ships same day
150 192-1571 Screw M50 x 16mm $2.56 1 ships same day
151 192-0289 Screw M6 x 10mm socket head $2.56 1 (lithium) ships same day
152 192-0563 Nut M6 self-locking $2.56 1 (lithium) ships same day
N/S 192-1537 Washer M5 serrated lock $2.56 1 (series 1) ships same day
