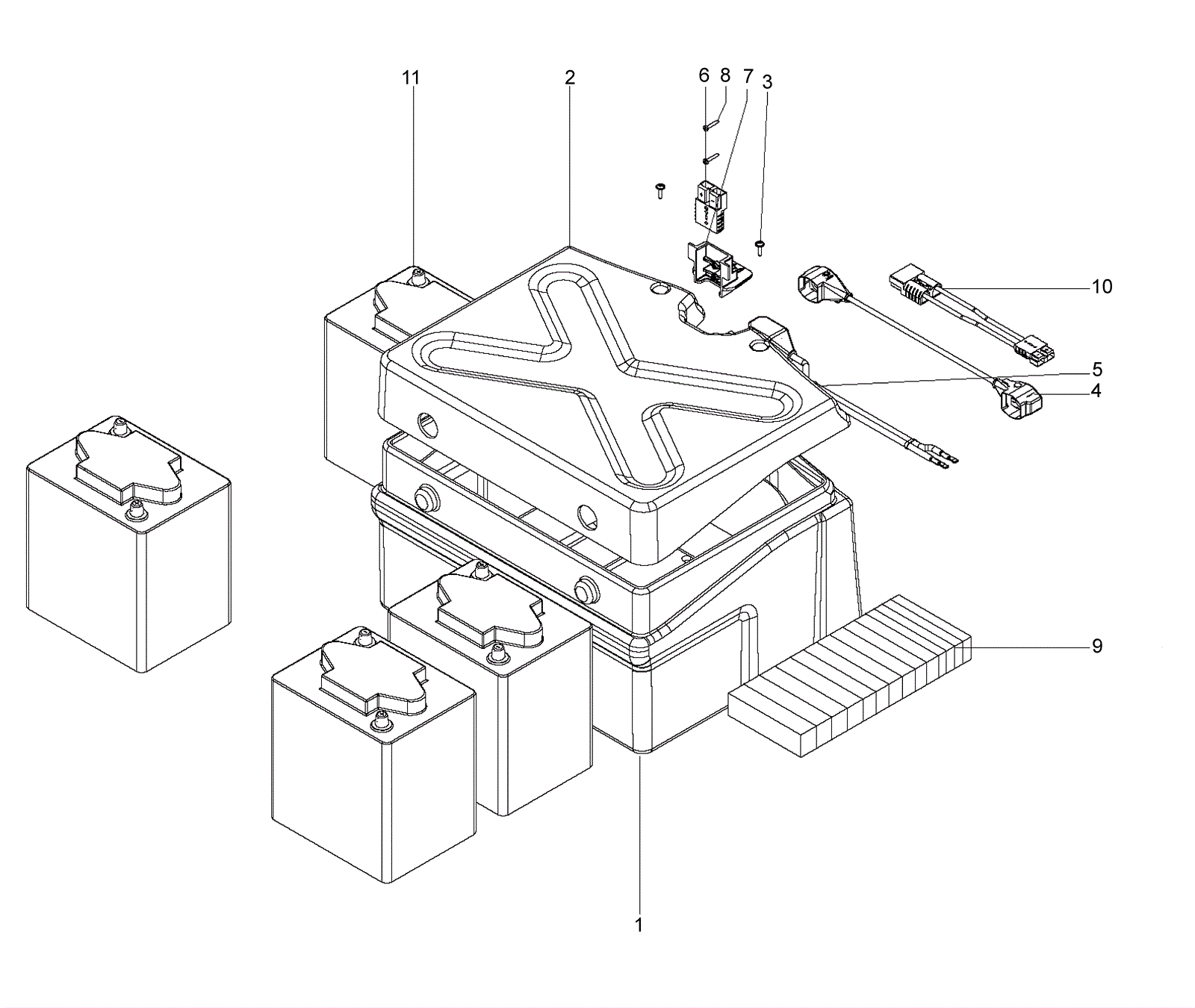

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
292-0713
|
Battery box |
$546.57
|
1 |
|
usually ships 24-40 days |
2 |
292-0714
|
Cover |
$240.71
|
1 |
|
usually ships 24-40 days |
3 |
192-1561
|
Screw 60 x 20 torx head |
$2.56
|
2 |
|
ships same day |
4 |
192-1406
|
Battery cable |
$64.36
|
3 |
|
ships same day |
5 |
292-0715
|
Wire harness |
$196.48
|
1 |
|
usually ships 24-40 days |
6 |
192-9723
|
Charger jack housing |
$36.87
|
1 |
|
usually ships 24-40 days |
7 |
292-0716
|
Protection cap |
$4.43
|
1 |
|
usually ships 24-40 days |
8 |
192-0625
|
Screw 50 x 25 for plastic |
$3.66
|
2 |
|
ships same day |
9 |
192-9238
|
Spacer set |
$11.54
|
1 |
|
ships same day |
10 |
292-0717
|
Adapter |
$101.87
|
1 |
(optional) |
usually ships 24-40 days |
11 |
162-0043
|
6V 224Ah AGM battery (Group GC2) |
$456.50
|
4 |
|
ships same day |
N/S |
162-5140
|
24V 25amp battery charger with small SB50 gray plug |
$664.16
|
1 |
|
ships same day |
