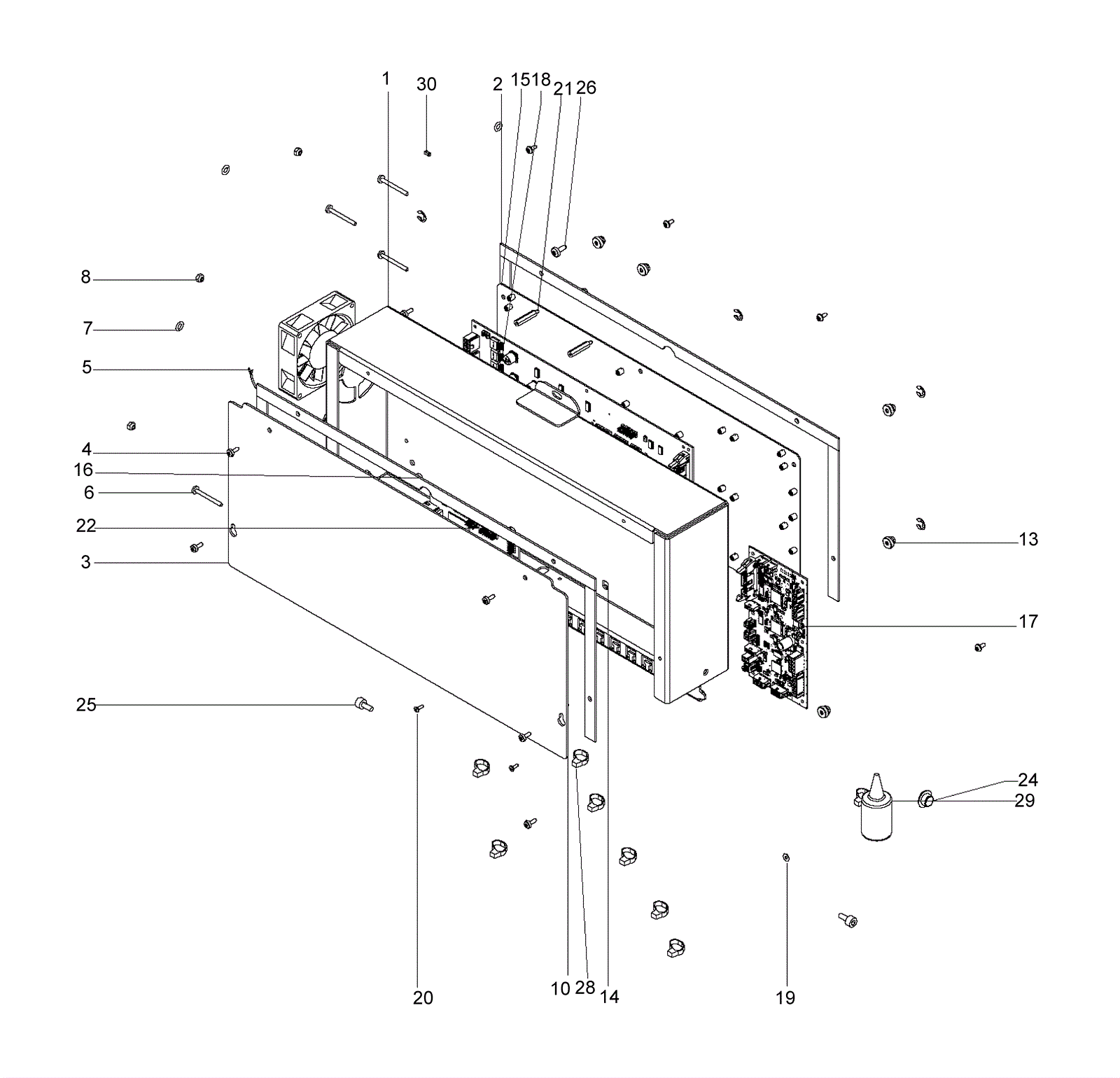

Swingobot 2000 Controller Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0689 Electronic housing $496.53 1 usually ships 30-75 days
2 292-0690 Gasket $19.42 2 usually ships 30-75 days
3 292-0691 Electronic cover $7.45 1 usually ships 30-75 days
4 192-6347 Screw M4 x 10mm self tapping form $2.44 5 usually ships 30-75 days
5 292-0574 Fan assembly $61.91 1 usually ships 30-75 days
6 292-0692 Screw M4 x 35mm raised cheese head $3.66 4 usually ships 30-75 days
7 192-5383 O-ring 5 5/16 x 2 13/32 $2.44 4 usually ships 1-5 days
8 192-0235 Nut M4 self locking $2.44 4 ships same day
10 292-0694 Holder $19.42 1 usually ships 30-75 days
13 292-0695 Holder $9.16 7 usually ships 30-75 days
14 192-0840 Snap ring $2.44 7 ships same day
15 292-0696 Plate $158.25 1 usually ships 30-75 days
16 192-8584 Screw 40 x 8 $2.44 7 usually ships 30-75 days
17 292-0697 Safety circuit $3,018.90 1 ships same day
18 292-0698 I/O board $5,519.06 1 ships same day
19 192-9826 Washer $5.86 17 usually ships 1-5 days
20 192-0209 Screw M3 x 8 recessed countersunk head $2.44 17 ships same day
21 292-0699 Stand off M3 x 25mm $2.44 4 usually ships 30-75 days
22 292-0700 SBC set $780.06 1 ships same day
24 192-0784 Slide bearing $2.44 2 usually ships 30-75 days
25 192-0506 Screw M6 x 12mm socket head $2.44 2 usually ships 30-75 days
26 192-0101 Screw M5 x 12mm self tapping form $2.44 1 ships same day
28 192-0102 7 3/4 inch cable tie $2.44 8 usually ships 30-75 days
29 192-0467 Lite thread lock compound $237.19 1 usually ships 1-5 days
30 292-0701 5amp slow-blow SMD fuse $13.75 1 usually ships 30-75 days
N/S 292-0702 Screw M2.5 x 5mm raised cheese head $2.44 2 usually ships 30-75 days
N/S 292-0703 Resistor $5.20 1 usually ships 30-75 days
N/S 192-6479 Screw M5 x 16mm socket head $2.44 1 usually ships 30-75 days
N/S 292-0693 Gyro assembly $924.20 1 ships same day
