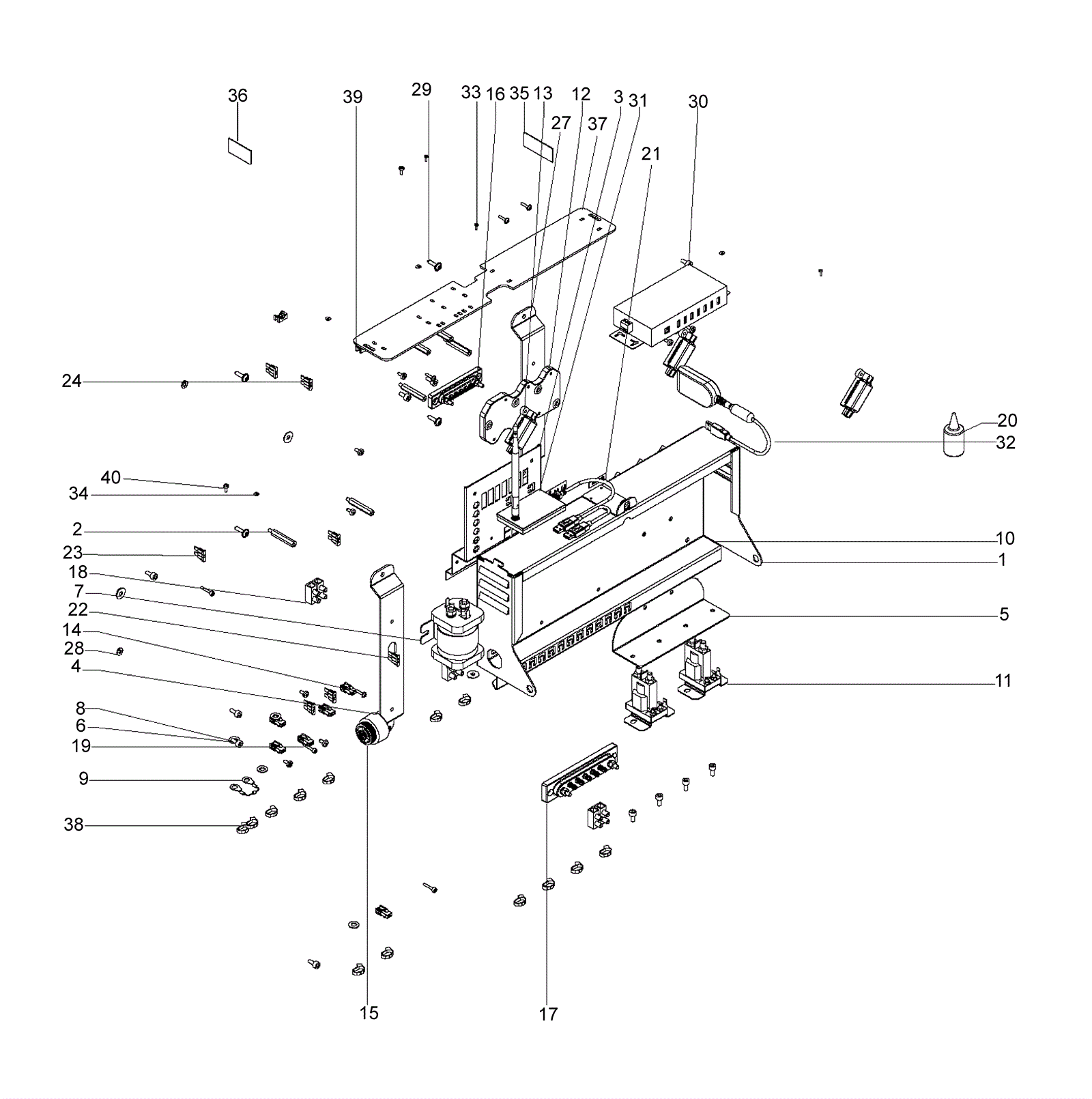

Swingobot 2000 Power Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0675 Power box $533.43 1 usually ships 24-40 days
2 292-0676 Standoff M5 x 45mm $2.56 6 usually ships 24-40 days
3 292-0677 Front plate $66.87 1 usually ships 24-40 days
4 192-0377 Screw M5 x 10mm self-tapping $2.56 12 usually ships 24-40 days
5 292-0678 Support $53.92 1 usually ships 24-40 days
6 192-0506 Screw M6 x 12mm socket head $2.56 12 usually ships 24-40 days
7 292-8479 Drive relay $343.08 1 usually ships 24-40 days
8 192-0105 Washer M8 $2.56 4 ships same day
9 192-9286 Diode $5.76 2 ships same day
10 192-0216 Washer $1.22 6 ships same day
11 192-9202 Relay $104.74 3 ships same day
12 292-0679 Support $20.21 1 usually ships 24-40 days
13 292-0680 Fuse holder $22.06 3 usually ships 24-40 days
14 192-1595 Screw M40 x 16mm torx head $2.56 6 ships same day
15 292-0681 Horn $21.62 1 usually ships 24-40 days
16 292-0682 5 ways connector $70.97 1 usually ships 24-40 days
17 292-0683 5 ways connector $98.33 1 usually ships 24-40 days
18 292-5568 Connection block $9.44 3 usually ships 24-40 days
19 192-1105 Screw M4 x 20mm socket head $2.56 3 usually ships 1-5 days
20 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 usually ships 12-18 days
21 292-0684 Decal set $10.08 1 usually ships 24-40 days
22 192-1176 10amp fuse clip $6.61 1 usually ships 24-40 days
23 192-1174 2amp fuse clip $6.11 2 ships same day
24 192-3894 Fuse clip 7,5 amp $2.56 4 usually ships 24-40 days
27 292-0685 Support $11.29 2 usually ships 24-40 days
28 192-0200 Washer M6 $3.28 2 usually ships 24-40 days
29 192-1561 Screw 60 x 20 torx head $2.56 4 ships same day
30 292-0633 USB hub $562.51 1 usually ships 24-40 days
31 292-0686 Wi-Fi booster $210.72 1 usually ships 24-40 days
32 292-0687 Cell modem $913.02 1 usually ships 24-40 days
33 192-0209 Screw M3 x 8 recessed countersunk head $2.56 4 (before 03-2018) ships same day
34 192-9826 Washer $6.15 4 (before 03-2018) usually ships 1-5 days
35 192-3572 Fastener strip (sold by the inch) $1.02 5 in (before 03-2018) usually ships 24-40 days
36 192-3572 Fastener strip (sold by the inch) $1.02 4 in (before 03-2018) usually ships 24-40 days
37 292-0688 Support $108.92 1 (after 03-2018) usually ships 24-40 days
38 192-0102 7 3/4 inch cable tie $2.56 22 (after 03-2018) usually ships 24-40 days
39 292-5527 Clamp $2.56 2 (after 03-2018) usually ships 1-5 days
40 192-6347 Screw M4 x 10mm self tapping form $2.56 2 usually ships 24-40 days
N/S 192-0369 Fuse strip 30 amp $2.56 1 usually ships 24-40 days
N/S 192-1252 Fuse strip 40 amp $2.56 2 usually ships 24-40 days
