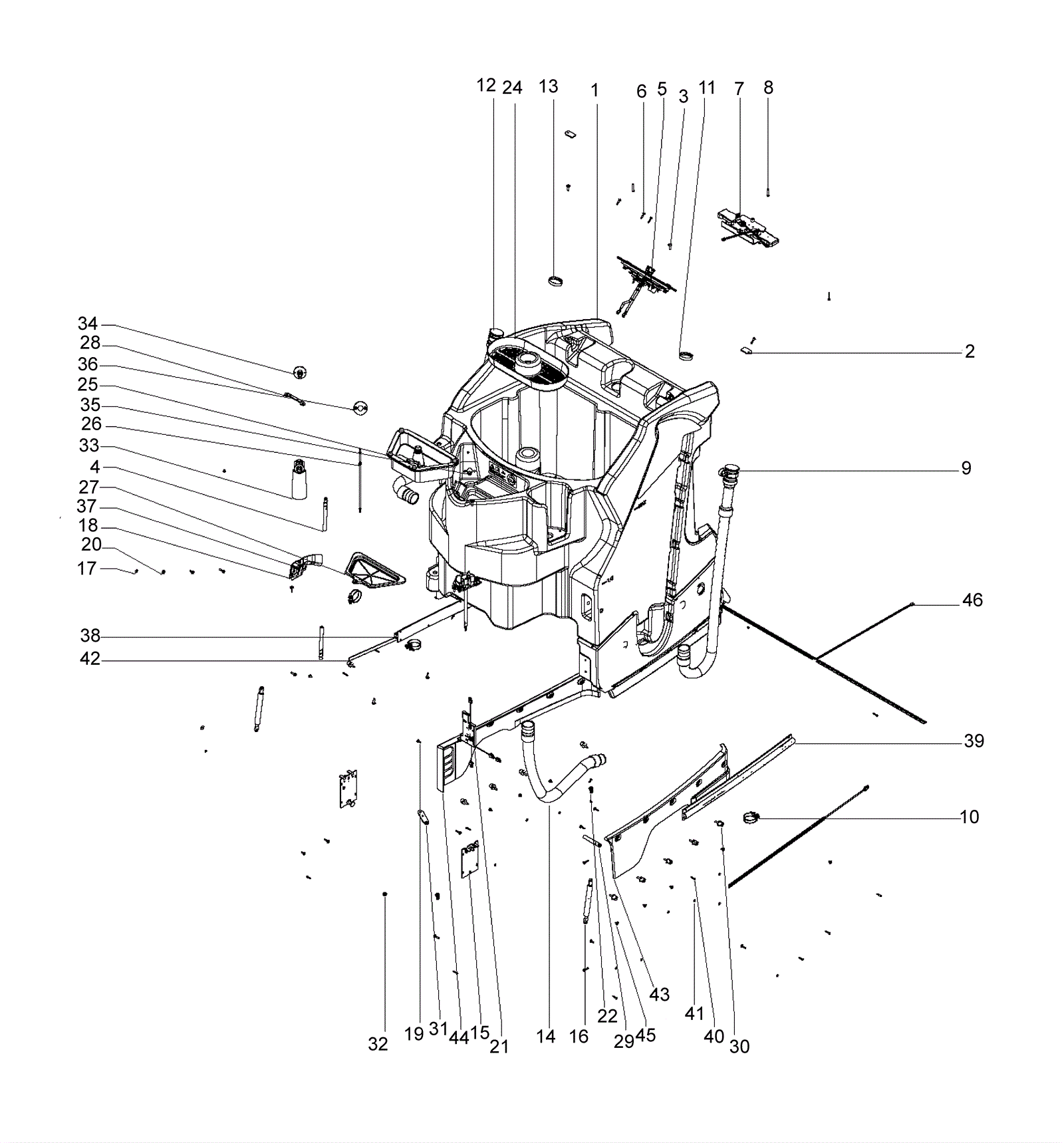

Swingobot 2000 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0643 Tank $1,636.10 1 usually ships 30-75 days
2 192-9696 Plate $2.44 2 usually ships 30-75 days
3 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
4 192-9166 Hinge bolt $21.00 2 usually ships 30-75 days
5 292-0644 Touch screen assembly $4,237.11 1 usually ships 30-75 days
6 192-9147 Screw 50 x 20 $3.78 14 ships same day
7 292-0645 Throttle $506.96 1 usually ships 30-75 days
8 192-9948 Screw KA 50 x 30 $2.44 3 ships same day
9 292-0646 Drain hose $101.22 1 usually ships 30-75 days
10 192-0130 Hose clamp $2.44 3 ships same day
11 292-5284 Rubber ring (blue) $2.44 1 ships same day
12 292-0647 Drain hose $99.10 1 usually ships 30-75 days
13 292-0271 Rubber ring (red) $2.44 1 ships same day
14 292-0648 Hose $77.73 1 usually ships 30-75 days
15 292-0649 Plate $68.13 2 usually ships 30-75 days
16 292-0650 Gas spring strut $52.21 2 usually ships 30-75 days
17 192-0840 Snap ring $2.44 4 ships same day
18 292-0651 Support $8.01 1 usually ships 30-75 days
19 192-0101 Screw M5 x 12mm self tapping form $2.44 4 ships same day
20 192-0091 Washer $0.89 2 ships same day
21 292-0652 Reed door tilt switch $135.05 1 ships same day
22 192-2501 P clamp $4.59 2 ships same day
24 192-1511 Basket filter $11.11 1 ships same day
25 192-9285 Dosing cup $33.58 1 ships same day
26 292-0096 Cord $2.44 1 usually ships 30-75 days
27 292-0653 Filter $26.69 1 usually ships 30-75 days
28 192-1513 Locking plate $3.49 1 usually ships 30-75 days
29 292-0654 Bolt $34.51 1 usually ships 30-75 days
30 292-0589 Buffer $11.43 10 usually ships 30-75 days
31 292-0655 Holder $3.74 1 usually ships 30-75 days
32 192-0626 Grommet $5.45 1 usually ships 1-5 days
33 292-0132 Water stop $212.89 1 usually ships 30-75 days
34 292-0656 Connection nipple $108.31 1 usually ships 30-75 days
35 292-0129 O-ring $2.44 1 usually ships 1-5 days
36 292-0128 Disc $10.87 1 usually ships 30-75 days
37 192-9352 Screw M5 x 20mm counter head $4.47 2 usually ships 30-75 days
38 292-0594 Sensor profile $44.88 1 usually ships 30-75 days
39 292-0594 Sensor profile $44.88 1 usually ships 30-75 days
40 192-5462 Screw M3.5 x 20mm pan head tap $2.44 14 usually ships 30-75 days
41 192-0674 Washer $2.44 14 usually ships 30-75 days
42 292-0657 Tape switch $415.18 2 usually ships 30-75 days
43 292-0658 Left hand protection shield $174.09 1 ships same day
44 292-0659 Right hand protection shield $138.71 1 usually ships 30-75 days
45 292-0597 Screw M5 x 8mm raised cheese head screw $2.44 10 ships same day
46 292-0660 Emergency tape switch $1,009.72 1 usually ships 30-75 days
