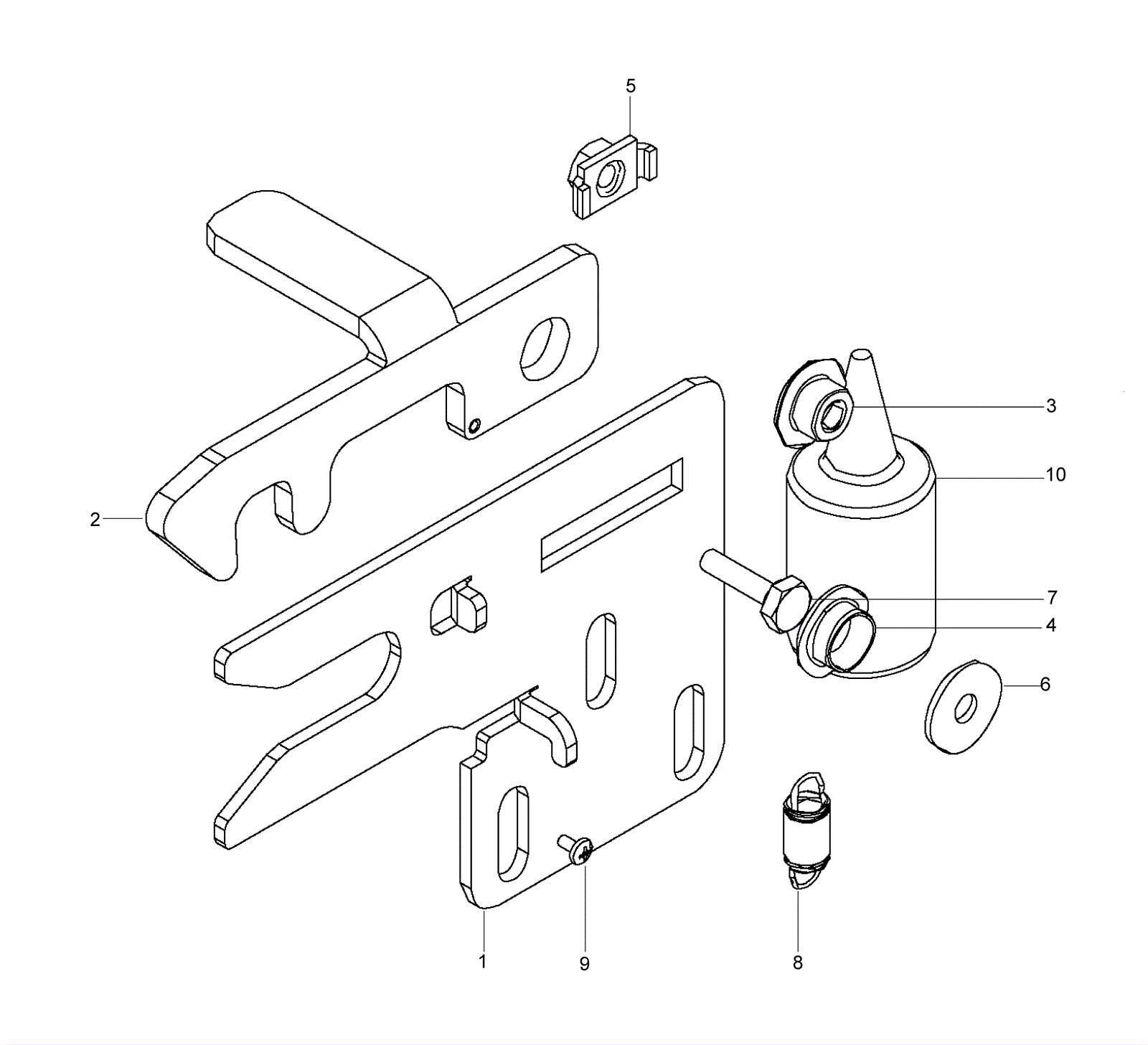

Swingobot 2000 Door Latch Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0637 Locking plate $19.49 1 usually ships 30-75 days
2 292-0638 Latch $15.14 1 usually ships 30-75 days
3 292-0639 Bolt $35.17 1 usually ships 30-75 days
4 192-9790 Slide bearing $2.44 1 ships same day
5 292-0640 Nut M6 $11.61 1 usually ships 30-75 days
6 192-7421 Washer $2.44 1 usually ships 30-75 days
7 192-4222 Screw M6 x 20 hex head $3.18 1 ships same day
8 292-0641 Tension spring $13.31 1 usually ships 30-75 days
9 192-0013 Screw 3 x 5 raised head $4.59 1 usually ships 30-75 days
10 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
