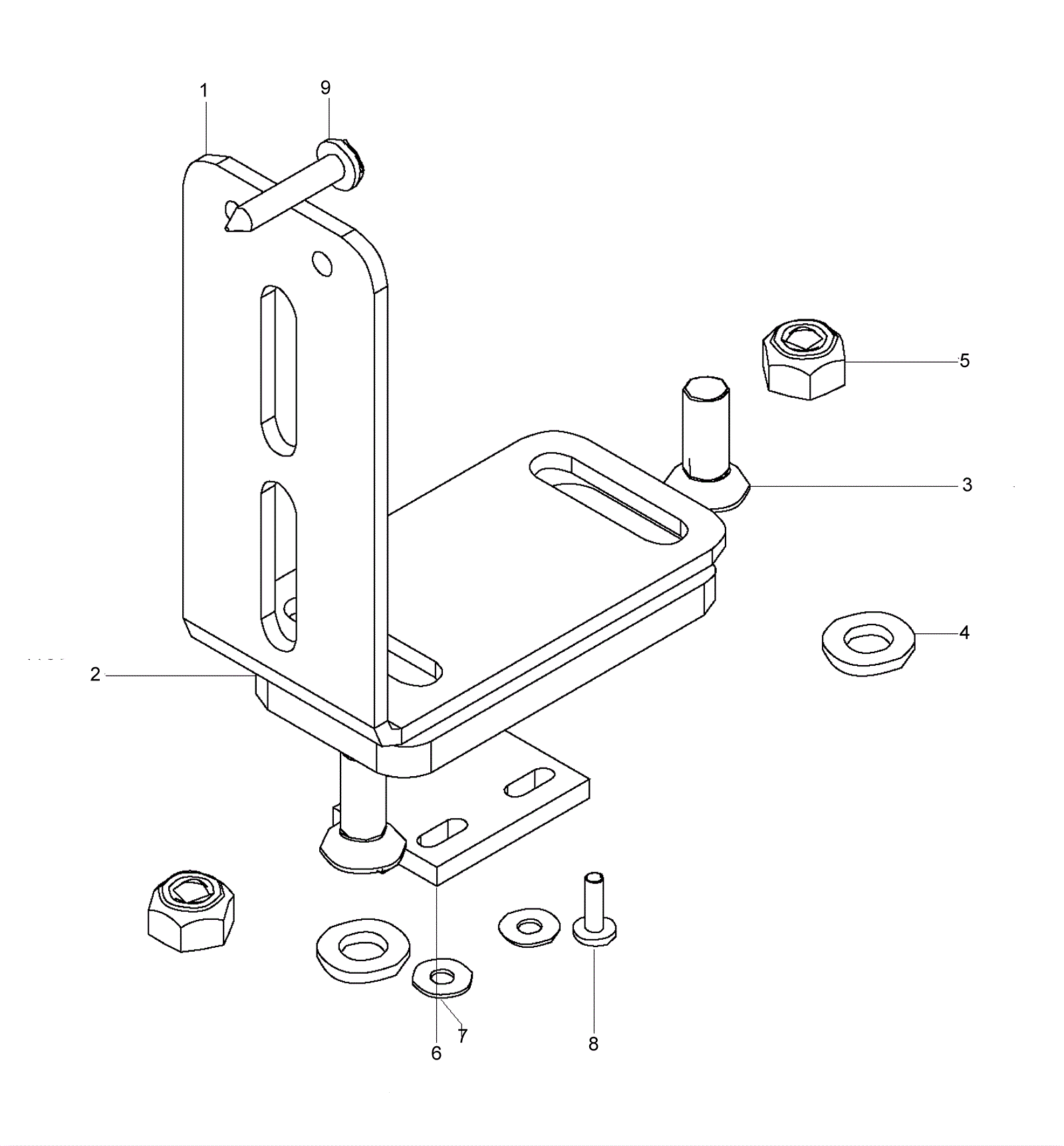

Swingobot 2000 Magnethlder Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0635 Holder $12.69 1 usually ships 30-75 days
2 292-0636 Support $19.24 1 usually ships 30-75 days
3 192-2979 Screw M6 x 16mm countersunk head cap $2.44 2 ships same day
4 192-0200 Washer M6 $3.12 2 ships same day
5 192-0563 Nut M6 self-locking $2.44 2 ships same day
6 292-0519 Reed magnet $18.02 1 usually ships 30-75 days
7 192-9826 Washer $5.86 2 usually ships 1-5 days
8 192-0209 Screw M3 x 8 recessed countersunk head $2.44 2 ships same day
9 192-5462 Screw M3.5 x 20mm pan head tap $2.44 1 usually ships 30-75 days
