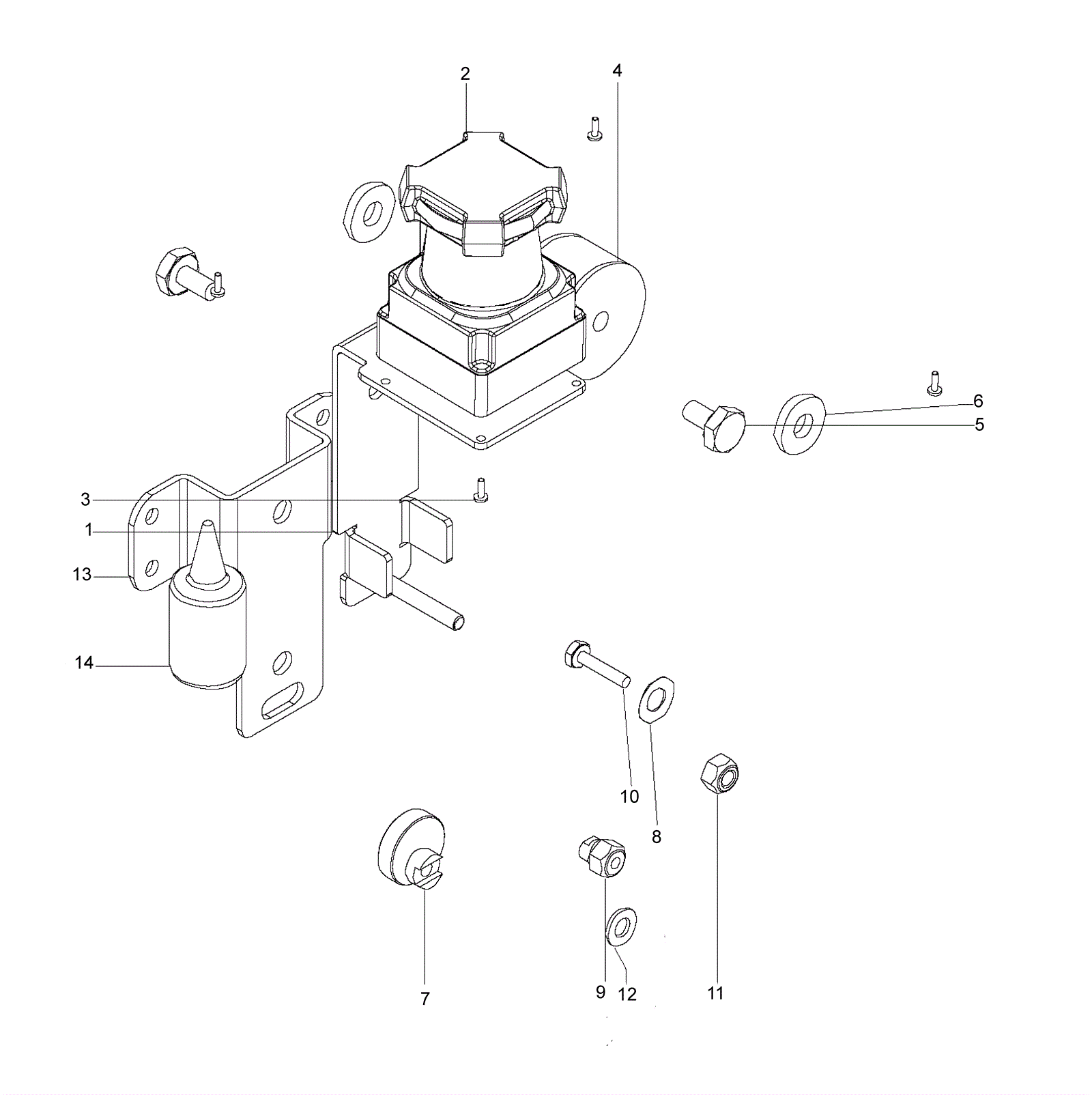

Swingobot 2000 Lidar Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0625 Holder $53.06 1 usually ships 30-75 days
2 292-0626 Lidar $13,731.47 1 usually ships 30-75 days
3 192-0209 Screw M3 x 8 recessed countersunk head $2.44 4 ships same day
4 192-0492 Buffer $9.23 1 ships same day
5 192-1455 Screw M10 x 16mm hex head $4.22 2 ships same day
6 192-0619 Washer $4.71 2 ships same day
7 292-0627 Eccentric bolt $34.80 1 usually ships 30-75 days
8 292-0628 Disc spring $4.71 1 usually ships 30-75 days
9 292-0629 Holder $23.94 1 usually ships 30-75 days
10 192-1285 Screw M6 x 25mm hex head $2.44 1 ships same day
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
12 192-0105 Washer M8 $2.44 1 ships same day
13 292-0630 Holder $17.78 1 usually ships 30-75 days
14 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
