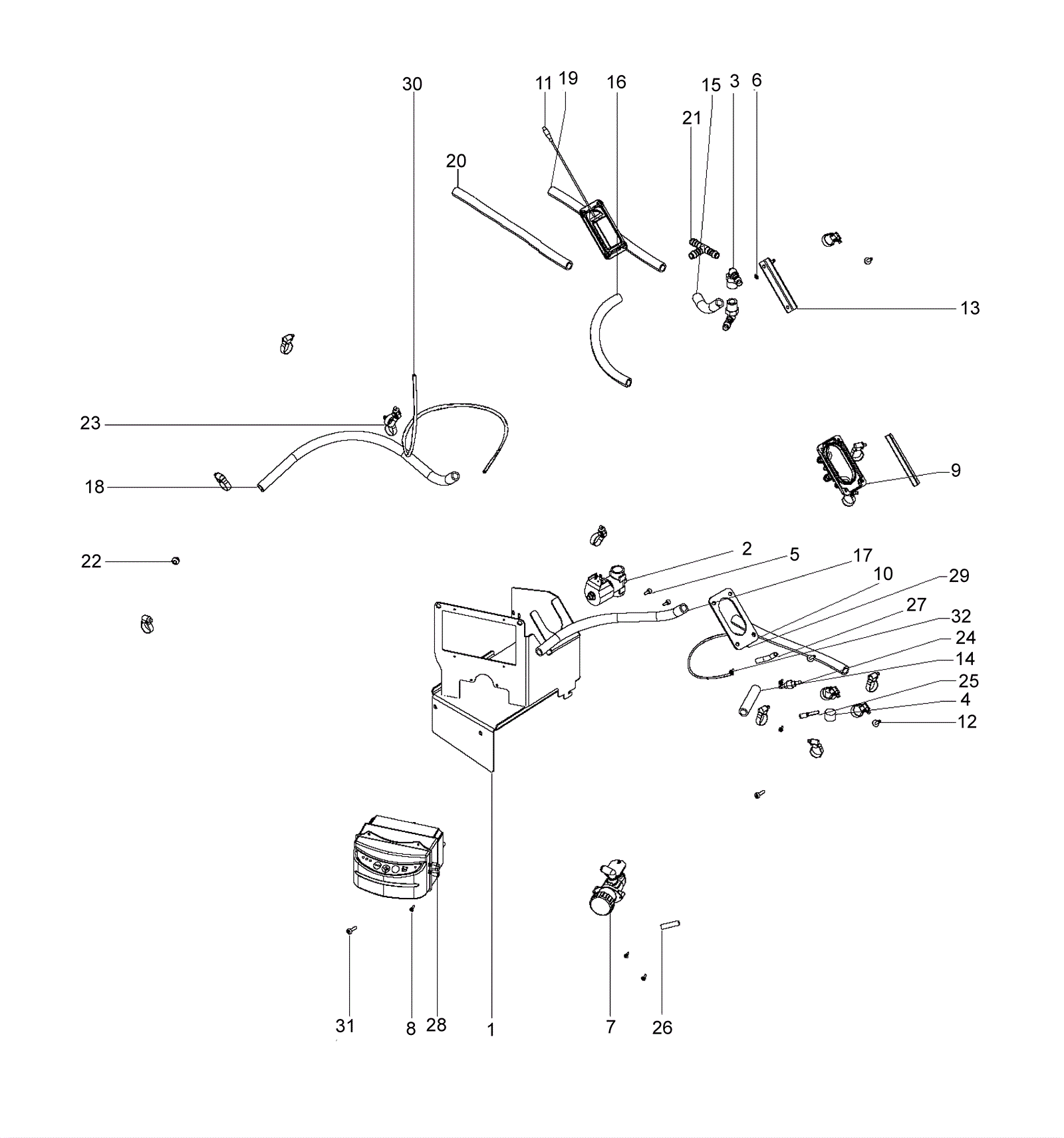

Water Distribution Assembly ( before SN 00432)

#PartDescription ReqNotesAvailability
1 292-0603 Support 1
2 192-0396 24V magnetic valve 1
3 192-9211 Angled hose nipple 2
4 192-0218 12mm teflon tape 1
5 192-0407 Screw M5 x 10mm socket head cap 2
6 192-0880 Washer M5 2
7 192-8878 Solution filter assembly 1
8 192-0547 Screw KA 40 x 14 2
9 292-0604 Connection 1
10 192-9704 Gasket 1
11 292-5670 Sensor 1
12 192-0968 Screw KA 60 x 16 4
13 292-0605 Angle bracket 2
14 192-0400 Wire reinforced hose (sold by the inch) 4 in
15 192-0400 Wire reinforced hose (sold by the inch) 4 in
16 192-0400 Wire reinforced hose (sold by the inch) 11 in
17 192-0400 Wire reinforced hose (sold by the inch) 15 in
18 192-0400 Wire reinforced hose (sold by the inch) 20 in
19 192-0400 Wire reinforced hose (sold by the inch) 13 in
20 192-0400 Wire reinforced hose (sold by the inch) 13 in
21 192-0401 T-connector 1
22 192-0626 Grommet 1
23 192-0334 Hose clamp 14
24 192-1601 Check valve 1
25 192-9824 Connector 1
26 192-4344 Hose (sold by the inch) 2 in
27 192-4344 Hose (sold by the inch) 2 in
28 292-0606 Intellidose box 1
29 292-0607 Hose (sold by the inch) 20 in
30 192-4341 Hose 4mm x 6mm (sold by the inch) 40 in
31 192-5942 Screw M6 x 16mm raised cheese head torx 2
32 192-6347 Screw M4 x 10mm self tapping form 4
