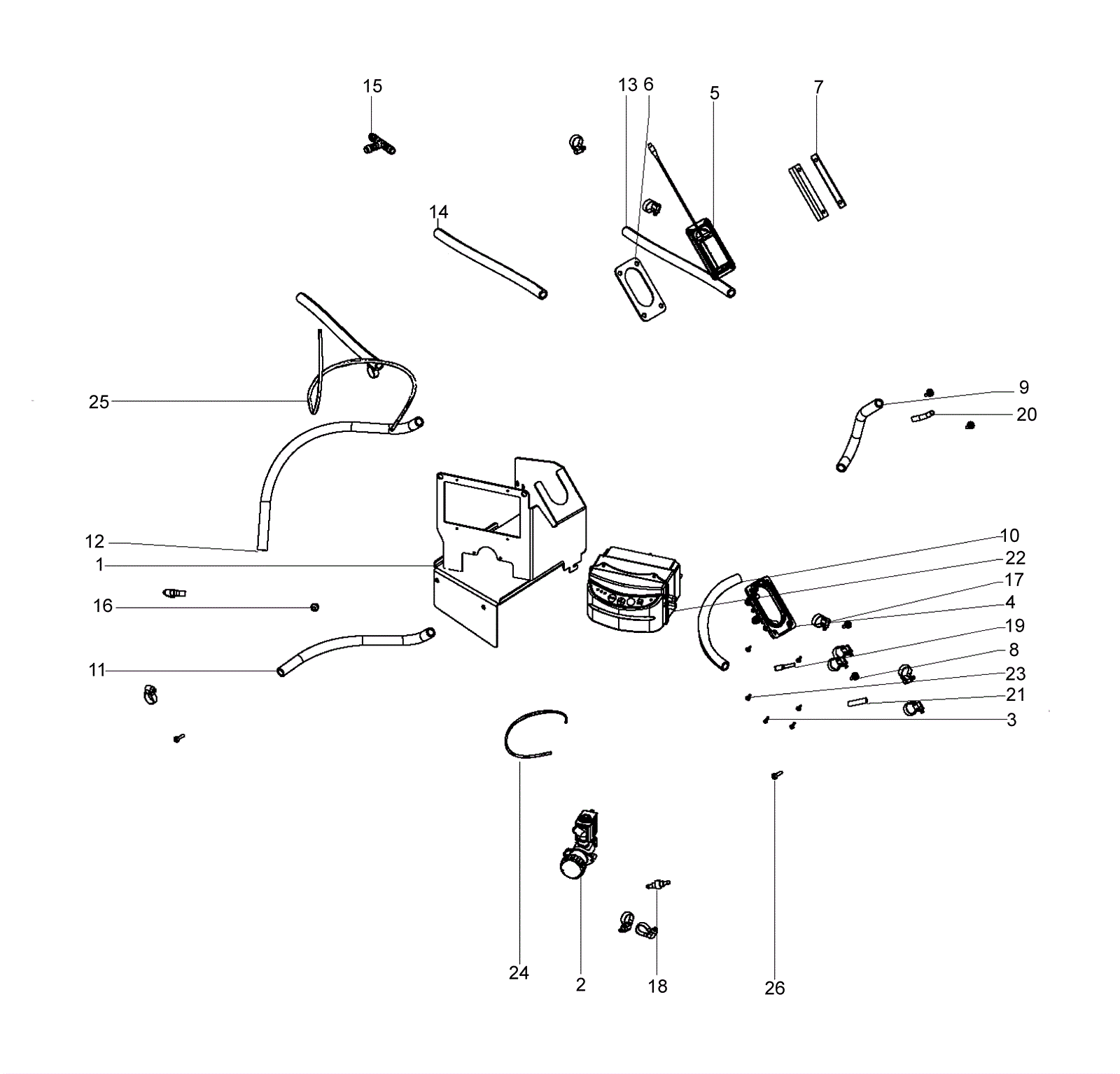

Water Distribution Assembly (after SN 00431)

#PartDescription ReqNotesAvailability
1 292-0603 Support 1
2a 192-9276 Solenoid and filter assembly 1
2b 292-0082 Filter kit 1
3 192-0547 Screw KA 40 x 14 2
4 292-0604 Connection 1
5 292-5670 Sensor 1
6 192-9704 Gasket 1
7 292-0605 Angle bracket 2
8 192-0968 Screw KA 60 x 16 4
9 192-0400 Wire reinforced hose (sold by the inch) 9 in
10 192-0400 Wire reinforced hose (sold by the inch) 11 in
11 192-0400 Wire reinforced hose (sold by the inch) 15 in
12 192-0400 Wire reinforced hose (sold by the inch) 20 in
13 192-0400 Wire reinforced hose (sold by the inch) 13 in
14 192-0400 Wire reinforced hose (sold by the inch) 13 in
15 192-0401 T-connector 1
16 192-0626 Grommet 1
17 192-0334 Hose clamp 12
18 192-1601 Check valve 1
19 192-9824 Connector 1
20 192-4344 Hose (sold by the inch) 2 in
21 192-4344 Hose (sold by the inch) 2 in
22 292-0606 Intellidose box 1
23 192-6347 Screw M4 x 10mm self tapping form 4
24 292-0607 Hose (sold by the inch) 20 in
25 192-4341 Hose 4mm x 6mm (sold by the inch) 40 in
26 192-5942 Screw M6 x 16mm raised cheese head torx 2
