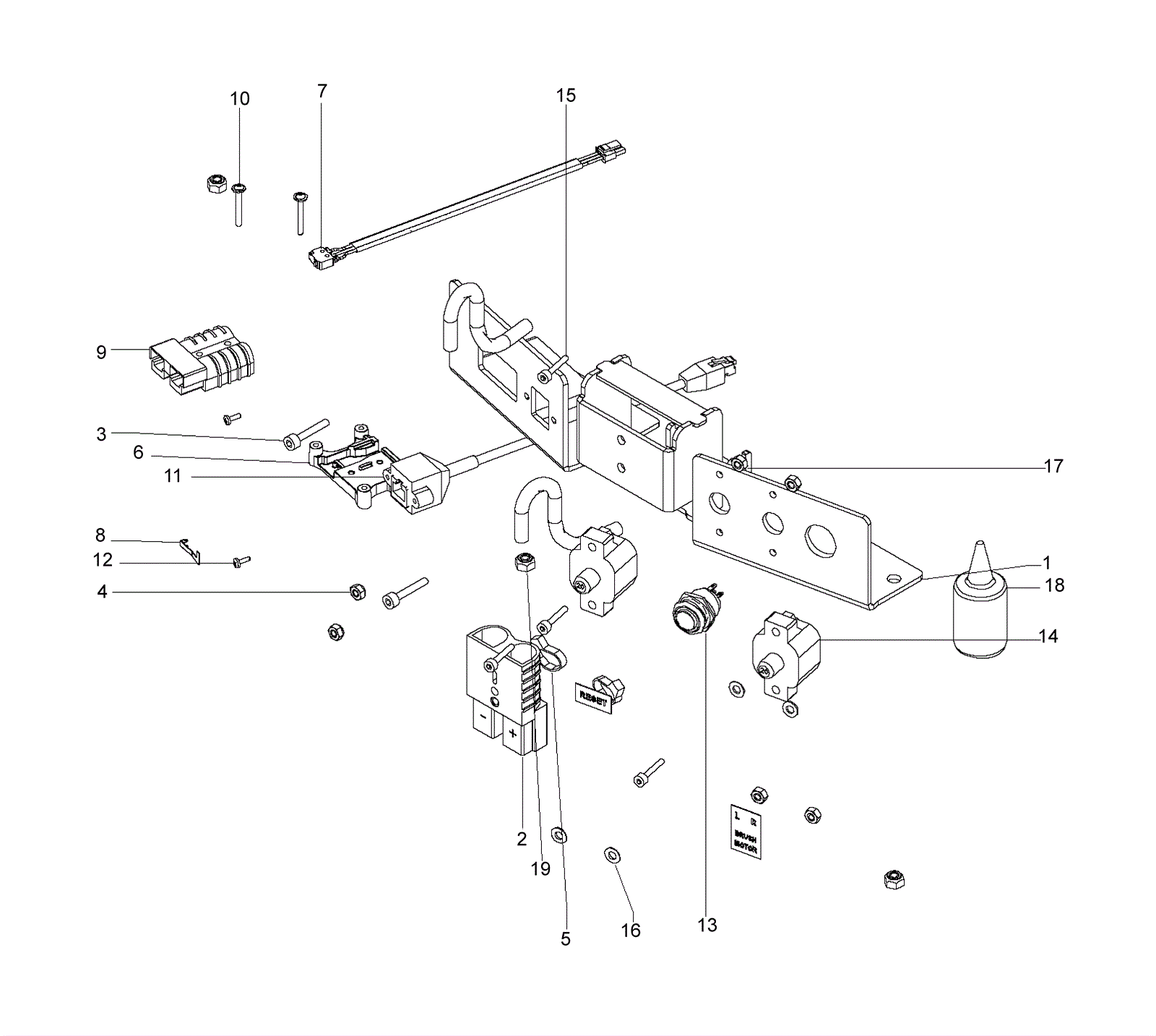

Swingobot 2000 Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0598 Support $129.50 1 usually ships 30-75 days
2 192-9723 Charger jack housing $36.87 1 usually ships 30-75 days
3 192-0337 Screw M5 x 25mm socket head cap $3.30 2 usually ships 1-5 days
4 192-0340 Nut M5 hex self locking $2.93 2 usually ships 30-75 days
5 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
6 292-5584 Support $2.44 1 usually ships 1-5 days
7 292-0599 Microswitch $51.52 1 usually ships 30-75 days
8 192-8784 Switch lever $21.98 1 ships same day
9 192-1266 50amp charger plug SB50 $5.47 1 ships same day
10 292-5585 Screw M3 x 25 cheese head $2.68 2 usually ships 1-5 days
11 292-0600 Cable $31.09 1 usually ships 30-75 days
12 192-0209 Screw M3 x 8 recessed countersunk head $2.44 2 ships same day
13 292-0601 Push button $47.44 1 usually ships 30-75 days
14 292-0602 20amp circuit breaker $292.70 2 usually ships 30-75 days
15 192-1105 Screw M4 x 20mm socket head $2.44 4 usually ships 1-5 days
16 192-1537 Washer M5 serrated lock $2.44 4 ships same day
17 192-0383 Nut M5 hex $0.89 4 ships same day
18 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
19 192-0563 Nut M6 self-locking $2.44 3 ships same day
