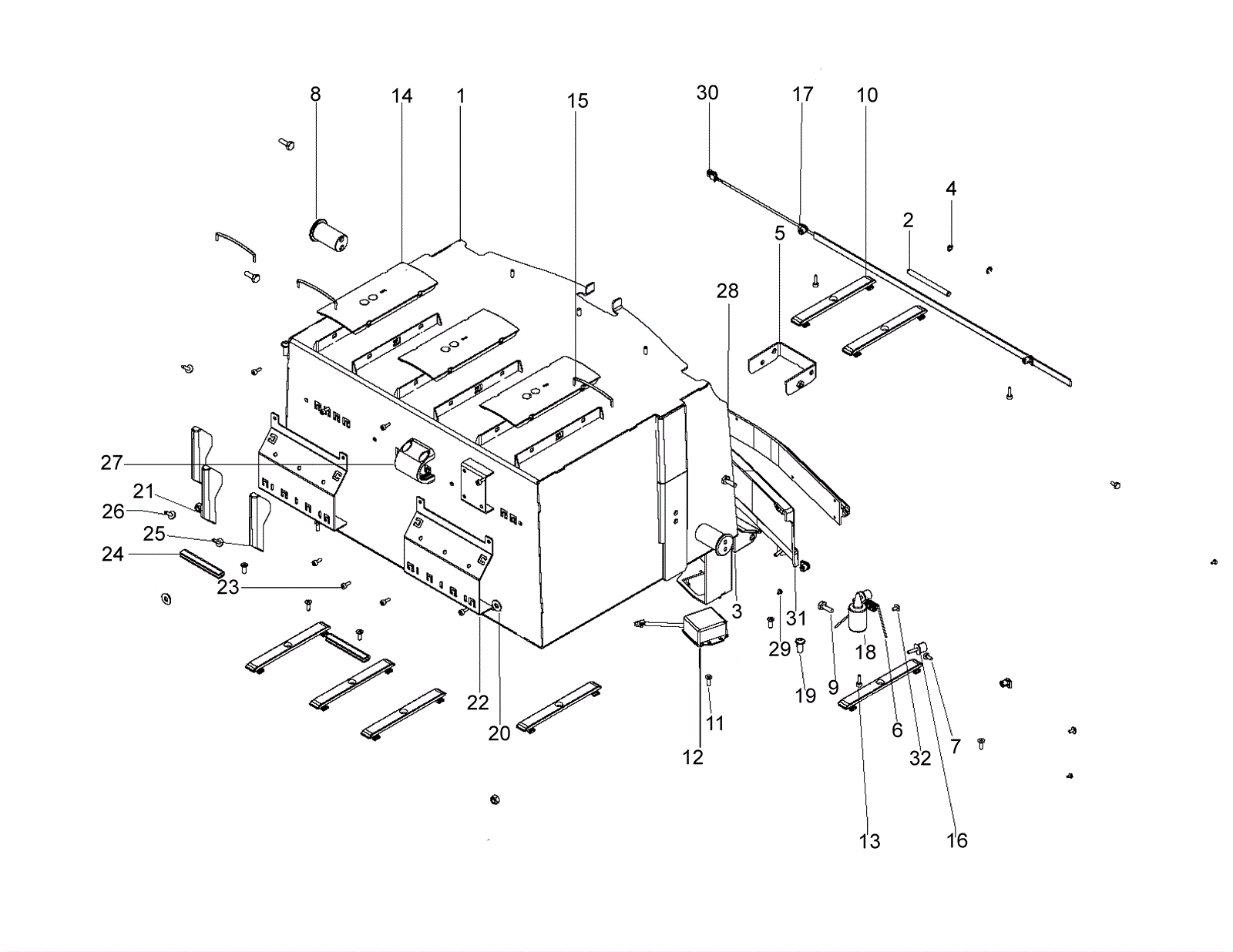

Swingobot 2000 Battery Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0580 Battery housing $1,350.62 1 usually ships 30-75 days
2 292-0581 Axle $24.66 1 usually ships 30-75 days
3 292-0582 Cradle $13.31 1 usually ships 30-75 days
4 192-0840 Snap ring $2.44 2 ships same day
5 292-0583 Support $34.27 1 usually ships 30-75 days
6 292-0584 Torsion spring $4.28 2 usually ships 30-75 days
7 192-1109 Screw M6 x 10mm hex head $0.89 2 ships same day
8 292-0585 Flange bolt $59.09 2 usually ships 30-75 days
9 192-0153 Screw M8 x 20mm hex head $0.89 4 ships same day
10 292-0586 Guide $6.42 8 usually ships 30-75 days
11 192-2979 Screw M6 x 16mm countersunk head cap $2.44 8 ships same day
12 292-0587 IR sensor set $378.73 2 ships same day
13 192-0035 Screw M5 x 16mm socket head cap $1.11 4 ships same day
14 292-0588 Cover $7.33 3 usually ships 30-75 days
15 192-6052 Retention loop $3.98 3 ships same day
16 292-0589 Buffer $11.43 4 usually ships 30-75 days
17 292-0590 Easy boss $6.96 4 usually ships 30-75 days
18 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
19 192-1524 Screw M8 x 20mm flange socket head $2.44 2 ships same day
20 192-0079 Washer $0.89 2 ships same day
21 192-0510 Nut M8 self locking $2.44 2 ships same day
22 292-0591 Support $103.66 2 usually ships 30-75 days
23 192-0077 Screw M5 x 12mm socket head $0.89 2 ships same day
24 192-2351 Bumper (sold by the inch) $9.06 48 in usually ships 30-75 days
25 292-0592 Cable protection $4.35 3 usually ships 30-75 days
26 192-1561 Screw 60 x 20 torx head $2.44 3 ships same day
27 292-0593 Holder $5.20 1 usually ships 30-75 days
28 292-0594 Sensor profile $44.88 1 usually ships 30-75 days
29 192-1140 Screw M4 x 8mm self tapping form $2.44 7 ships same day
30 292-0595 Tape switch $399.03 1 usually ships 30-75 days
31 292-0596 Protection shield (black) $162.22 1 usually ships 30-75 days
32 292-0597 Screw M5 x 8mm raised cheese head screw $2.44 4 ships same day
