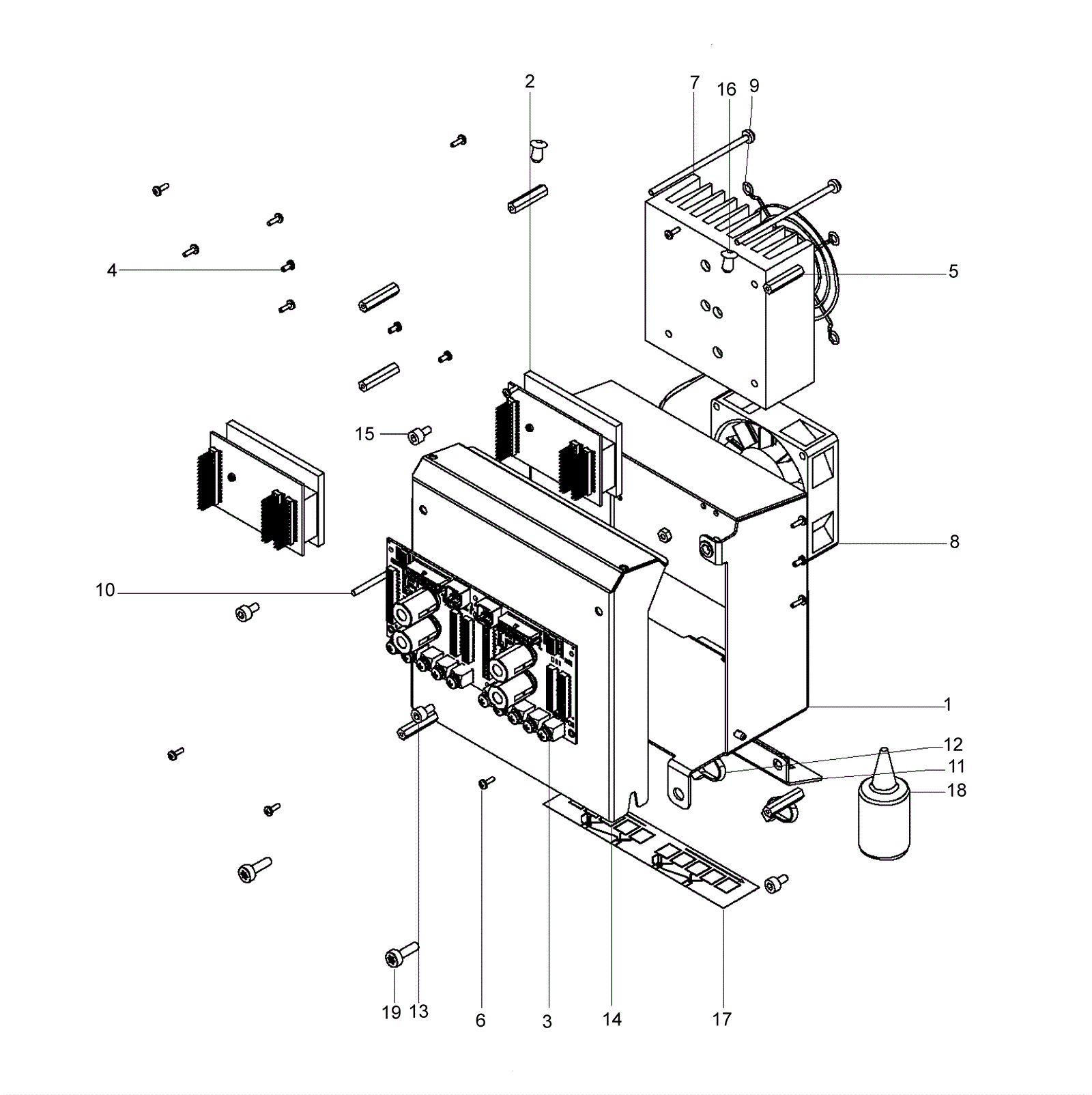

Swingobot 2000 Drive Amp Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0568 Drive amp holder $218.56 1 usually ships 30-75 days
2 292-0569 Servo drive set $2,234.73 2 ships same day
3 292-0570 Mounting card set $1,769.69 1 ships same day
4 292-0571 Screw #4-40 x 1/4 cheese head $2.44 4 usually ships 30-75 days
5 292-0572 Standoff $17.22 6 usually ships 30-75 days
6 192-0209 Screw M3 x 8 recessed countersunk head $2.44 12 ships same day
7 292-0573 Heat sink $138.46 1 usually ships 30-75 days
8 292-0574 Fan assembly $61.91 1 usually ships 30-75 days
9 292-0575 Fan guard $5.08 1 usually ships 30-75 days
10 292-0576 Screw M4 x 80mm raised cheese head $2.44 4 usually ships 30-75 days
11 292-0577 Support $38.09 1 usually ships 30-75 days
12 192-0102 7 3/4 inch cable tie $2.44 7 usually ships 30-75 days
13 192-6485 Screw M5 x 8mm socket head cap $2.44 4 usually ships 30-75 days
14 292-0578 Drive amp cover $224.66 1 usually ships 30-75 days
15 192-6485 Screw M5 x 8mm socket head cap $2.44 2 usually ships 30-75 days
16 192-1559 Retaining rivet $4.52 2 ships same day
17 292-0579 Drive amp decal $106.71 1 usually ships 30-75 days
18 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
19 192-5942 Screw M6 x 16mm raised cheese head torx $2.44 2 ships same day
