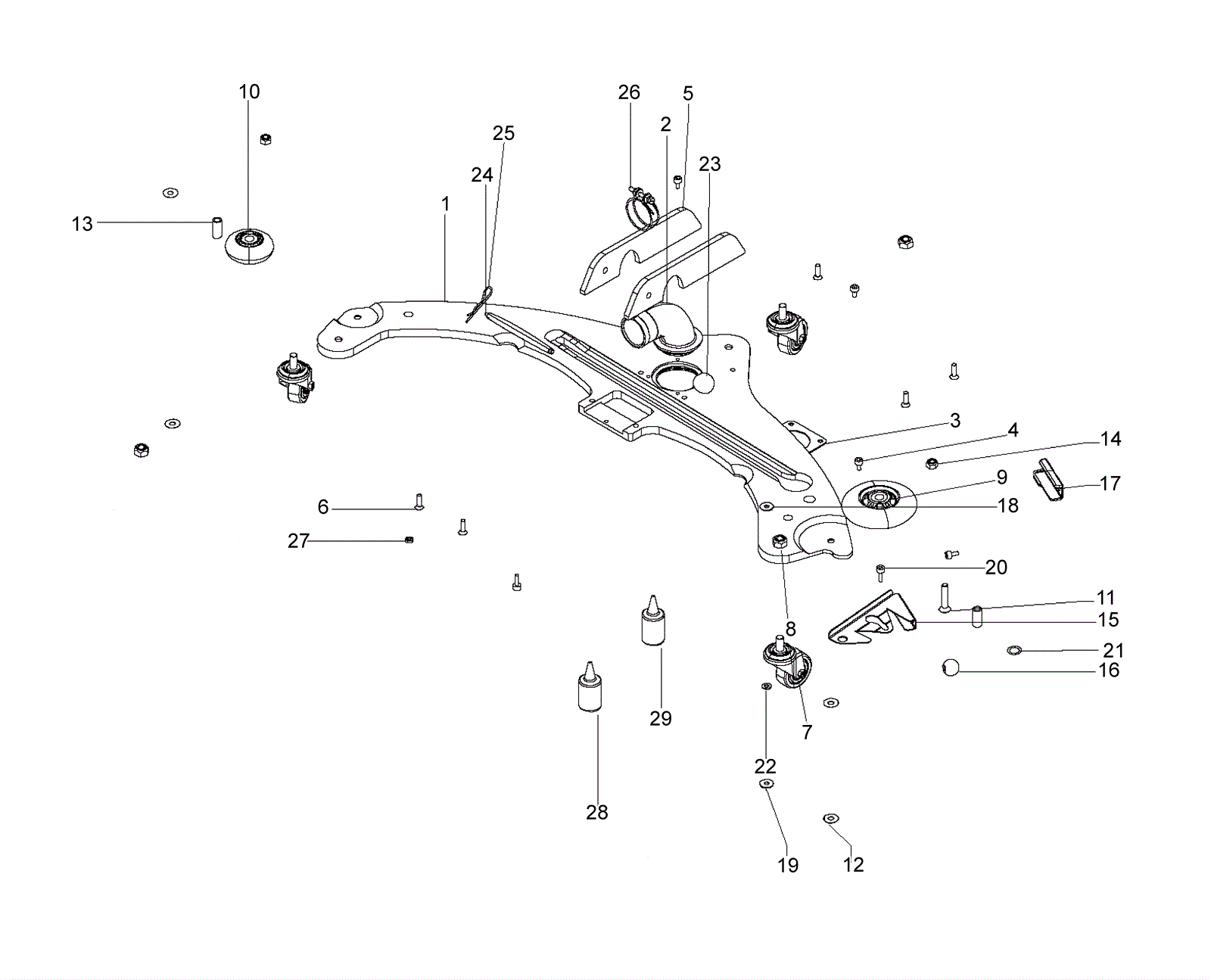

Swingobot 2000 Squeegee Holder Assembly (before SN 00432)

#PartDescriptionPriceReqNotesAvailability
1 292-0548 Holder plate $1,594.65 1 usually ships 30-75 days
2 292-0539 Pipe bend $33.33 1 usually ships 30-75 days
3 292-0549 Flange $9.11 1 usually ships 30-75 days
4 192-0289 Screw M6 x 10mm socket head $2.44 5 ships same day
5 292-0550 Holder $66.25 2 usually ships 30-75 days
6 192-2981 Screw M6 x 20 head cap counters $3.91 6 usually ships 1-5 days
7 192-9801 Castor wheel $33.17 3 ships same day
8 192-6339 Nut M10 self locking $2.44 3 ships same day
9 192-8744 Wheel $31.57 1 ships same day
10 192-9802 Wheel $28.16 1 ships same day
11 292-0551 Screw M8 x 40mm countersunk head $2.44 2 usually ships 30-75 days
12 192-0109 Washer 8 mm $5.98 4 usually ships 30-75 days
13 192-9803 Bushing $2.52 2 ships same day
14 192-0510 Nut M8 self locking $2.44 2 ships same day
15 292-0544 Locking $28.40 1 usually ships 30-75 days
16 292-0545 Handle ball $4.15 1 usually ships 30-75 days
17 292-0552 Protection $32.31 1 usually ships 30-75 days
18 292-0546 Washer $2.44 1 usually ships 30-75 days
19 192-0216 Washer $1.22 1 ships same day
20 192-0007 Screw M6 x 16mm socket head cap $2.44 3 ships same day
21 192-7440 Washer wave $2.44 1 ships same day
22 192-0200 Washer M6 $3.12 1 ships same day
23 192-4155 Handle ball $6.91 1 usually ships 30-75 days
24 292-0547 Axle $22.84 1 usually ships 30-75 days
25 192-9246 Cotter pin $2.44 1 usually ships 30-75 days
26 192-0130 Hose clamp $2.44 1 ships same day
27 192-0215 Nut M6 hex thin stainless steel $2.44 1 usually ships 30-75 days
28 192-1136 Strong locking adhesive $252.45 1 usually ships 1-5 days
29 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
