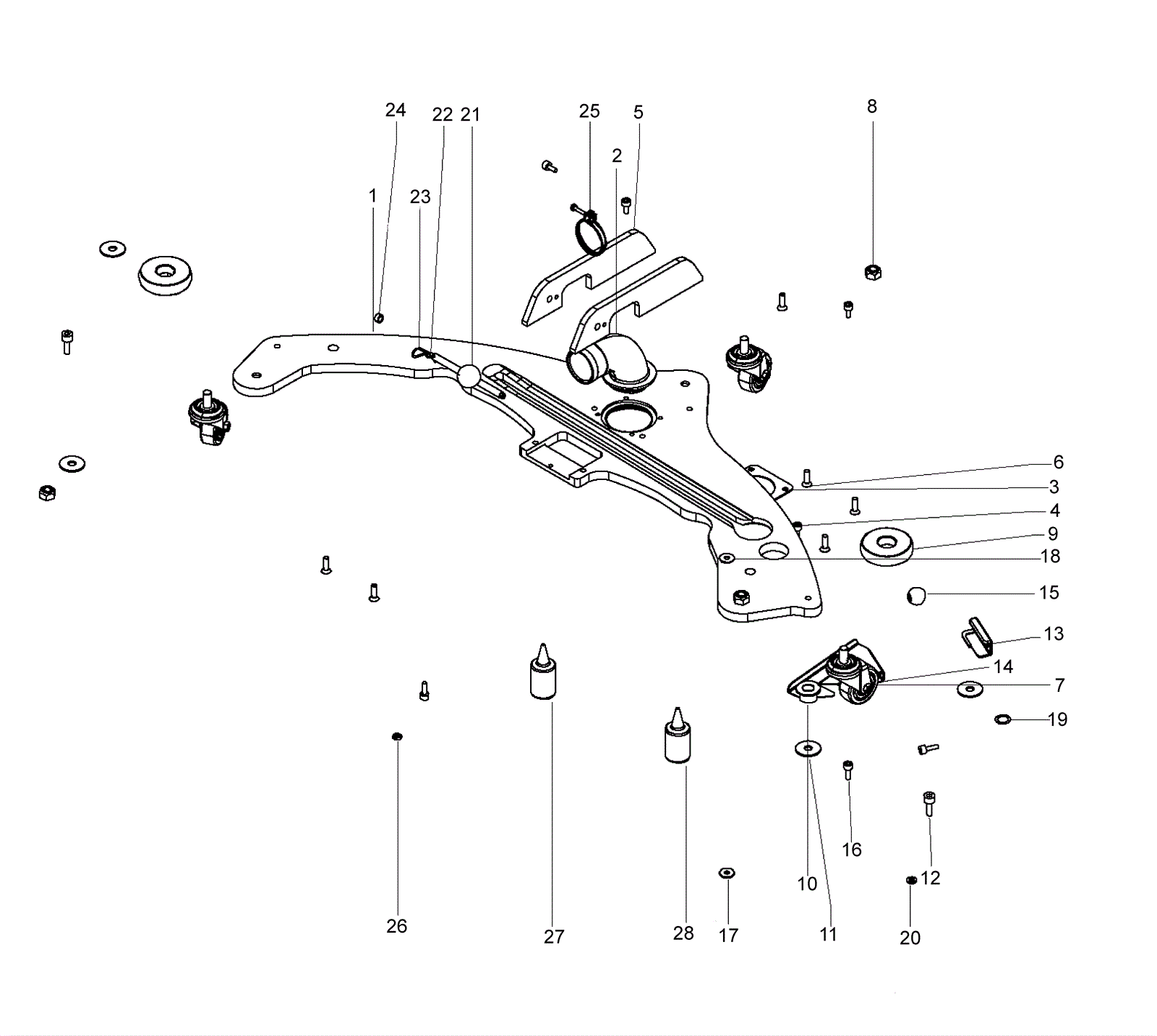

Swingobot 2000 Squeegee Holder Assembly (after SN 00431)

#PartDescriptionPriceReqNotesAvailability
1 292-0538 Holder plate $766.33 1 usually ships 30-75 days
2 292-0539 Pipe bend $33.33 1 usually ships 30-75 days
3 292-0540 Flange $11.07 1 usually ships 30-75 days
4 192-0506 Screw M6 x 12mm socket head $2.44 5 usually ships 30-75 days
5 292-0541 Holder $54.41 2 usually ships 30-75 days
6 192-2981 Screw M6 x 20 head cap counters $3.91 6 usually ships 1-5 days
7 192-9801 Castor wheel $33.17 3 ships same day
8 192-6339 Nut M10 self locking $2.44 3 ships same day
9 292-8506 Roller wheel $2.44 2 usually ships 30-75 days
10 292-0542 Flagned bushing $19.36 2 usually ships 30-75 days
11 192-0647 Washer $5.01 4 ships same day
12 192-0036 Screw M8 x 20mm socket head $2.44 2 ships same day
13 292-0543 Protection $77.29 1 usually ships 30-75 days
14 292-0544 Locking $28.40 1 usually ships 30-75 days
15 292-0545 Handle ball $4.15 1 usually ships 30-75 days
16 192-0007 Screw M6 x 16mm socket head cap $2.44 3 ships same day
17 292-0546 Washer $2.44 1 usually ships 30-75 days
18 192-0216 Washer $1.22 1 ships same day
19 192-7440 Washer wave $2.44 1 ships same day
20 192-0200 Washer M6 $3.12 1 ships same day
21 192-4155 Handle ball $6.91 1 usually ships 30-75 days
22 292-0547 Axle $22.84 1 usually ships 30-75 days
23 192-9246 Cotter pin $2.44 1 usually ships 30-75 days
24 192-0897 Washer $4.35 1 usually ships 30-75 days
25 192-0130 Hose clamp $2.44 1 ships same day
26 192-0215 Nut M6 hex thin stainless steel $2.44 1 usually ships 30-75 days
27 192-1136 Strong locking adhesive $252.45 1 usually ships 1-5 days
28 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
