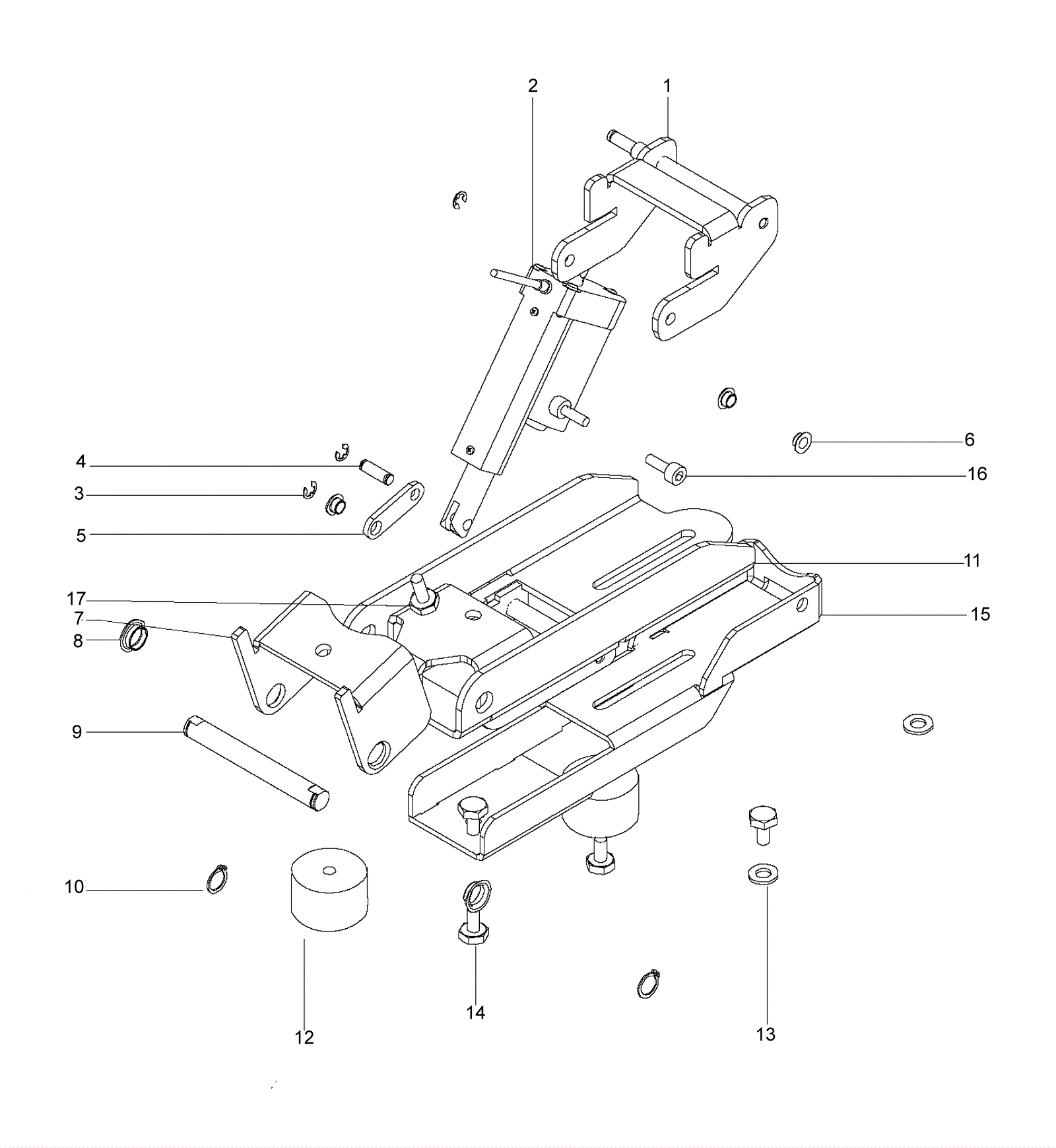

Swingobot 2000 Squeegee Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0532 Pipe assembly $53.92 1 usually ships 17-21 days
2 292-0533 24V linear drive 20mm $513.80 1 usually ships 17-21 days
3 192-0840 Snap ring $2.56 4 ships same day
4 192-9183 Axle $8.42 1 usually ships 17-21 days
5 292-0534 Shackle $9.31 1 usually ships 17-21 days
6 192-6448 Slide bearing $6.74 3 ships same day
7 292-0535 Support $25.33 1 usually ships 17-21 days
8 192-1035 Slide bearing $2.56 2 ships same day
9 292-0529 Bolt $24.95 1 usually ships 17-21 days
10 192-0075 Retaining ring $6.11 2 ships same day
11 292-0536 Cradle $84.69 1 usually ships 17-21 days
12 192-0492 Buffer $9.69 2 ships same day
13 192-0496 Washer M10 $2.56 2 usually ships 17-21 days
14 192-1455 Screw M10 x 16mm hex head $4.43 4 ships same day
15 292-0537 Swinging arm $154.48 1 usually ships 17-21 days
16 192-0036 Screw M8 x 20mm socket head $2.56 2 ships same day
17 192-0468 Screw M10 x 20 hex $4.95 1 usually ships 17-21 days
