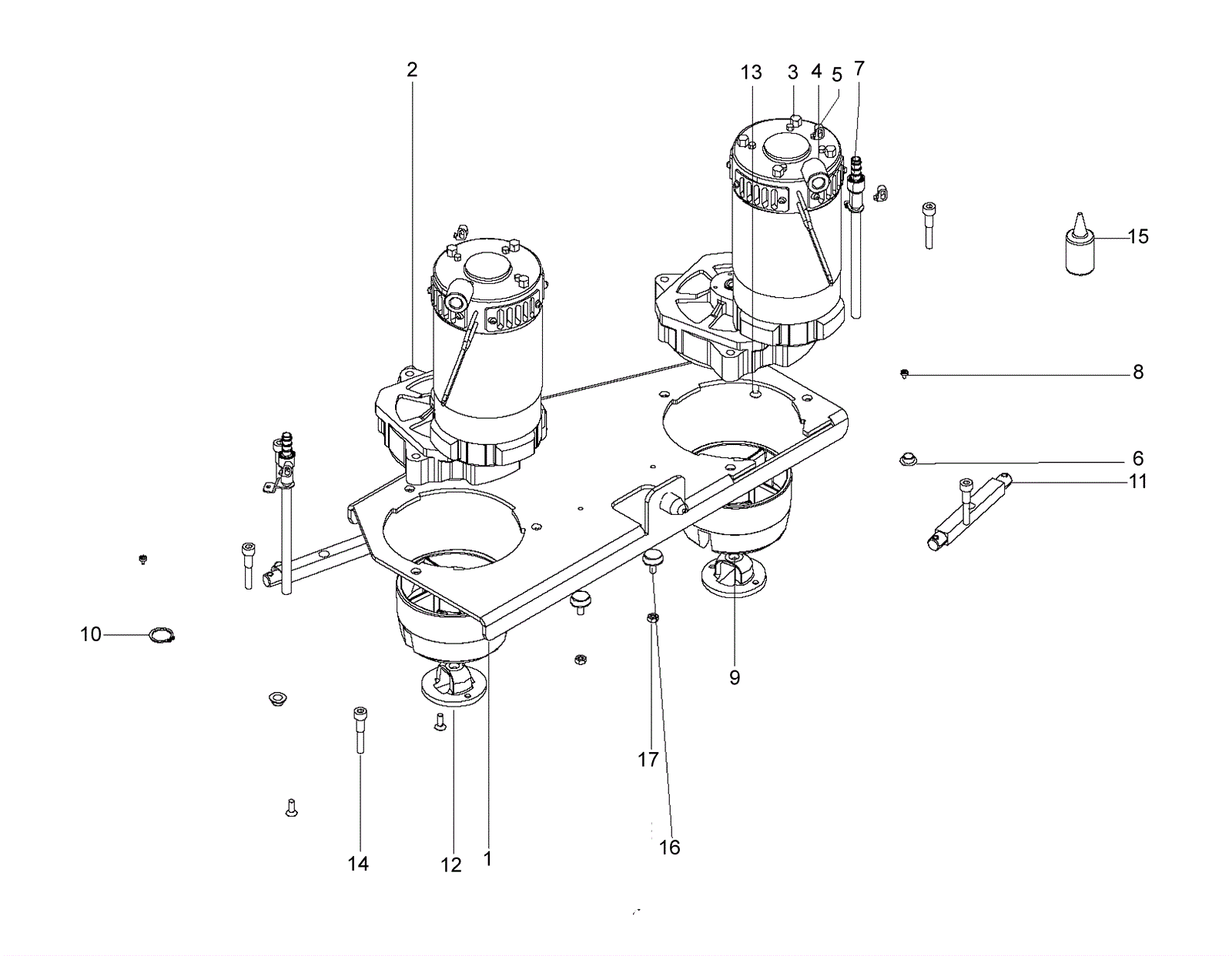

Swingobot 2000 Brush Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0530 Brush plate base assembly $265.08 1 usually ships 30-75 days
2 192-8957 Clevis pin $2.44 1 usually ships 30-75 days
3 192-1142 Brush motor $750.06 2 ships same day
4 192-1153 Toroidal choke $9.41 2 usually ships 30-75 days
5 192-0102 7 3/4 inch cable tie $2.44 4 usually ships 30-75 days
6 192-0784 Slide bearing $2.44 4 usually ships 30-75 days
7 292-0531 Pipe assembly $124.91 2 usually ships 30-75 days
8 192-1140 Screw M4 x 8mm self tapping form $2.44 2 ships same day
9 192-1151 Coupling wheel $104.15 2 ships same day
10 192-1152 Retaining ring $4.96 2 usually ships 30-75 days
11 192-0504 Shaft $76.80 2 usually ships 30-75 days
12 192-0505 Coupling yoke $17.53 2 ships same day
13 192-0157 Screw M6 x 16mm countersunk head cap $6.18 4 ships same day
14 192-1214 Screw M8 x 45/28mm socket head cap $5.37 6 usually ships 30-75 days
15 192-1872 Grease $11.99 1 ships same day
16 192-9204 Stop buffer $4.35 2 usually ships 1-5 days
17 192-0151 Nut M6 hex $2.44 2 ships same day
