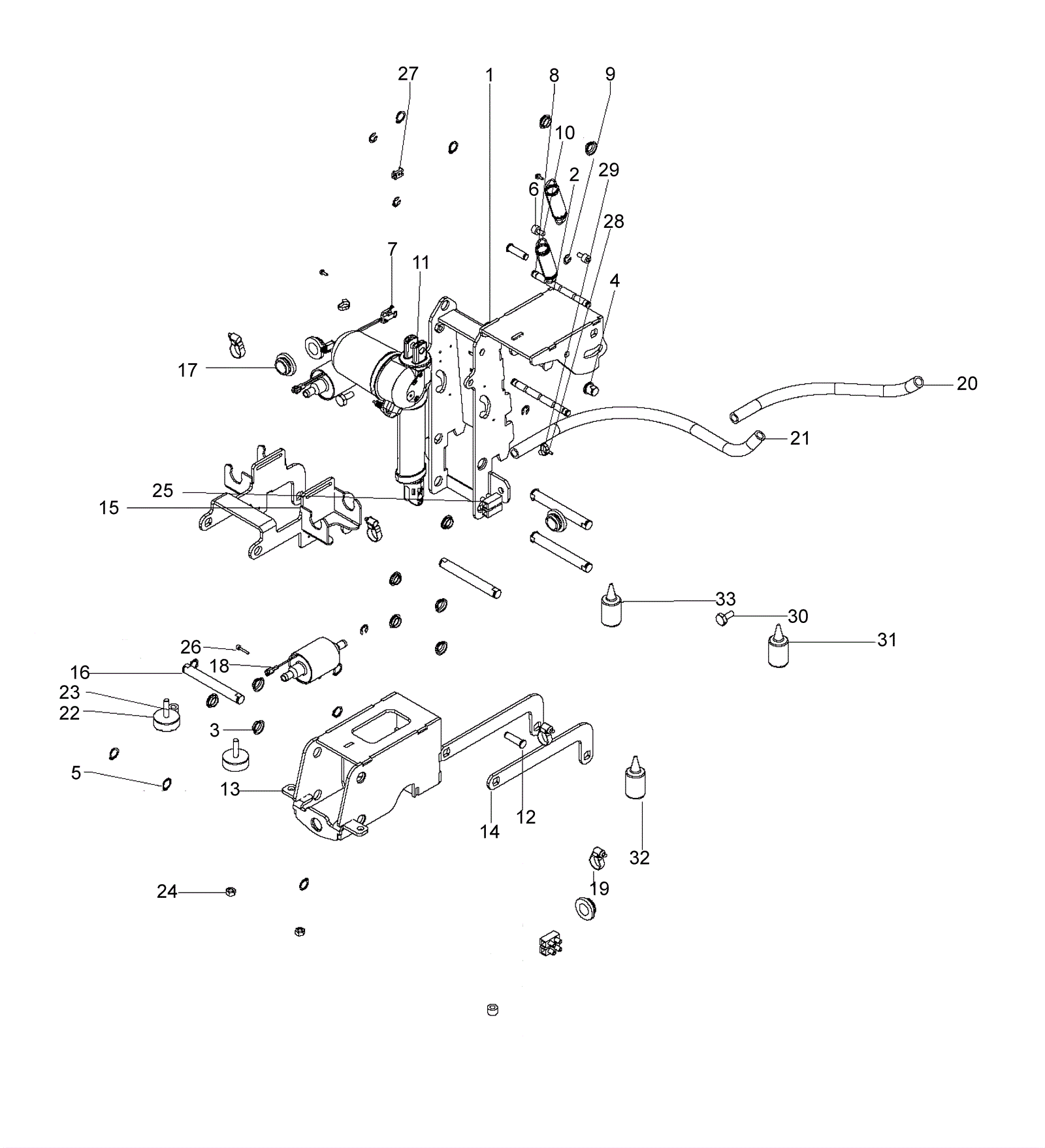

Swingobot 2000 Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0523 Support assembly $198.12 1 usually ships 30-75 days
2 292-0524 Cradle assembly $72.16 1 usually ships 30-75 days
3 192-1035 Slide bearing $2.44 10 ships same day
4 192-1119 Bolt $10.13 2 usually ships 30-75 days
5 192-0075 Retaining ring $5.81 10 ships same day
6 192-0364 Screw M8 x 12mm socket head $2.52 2 ships same day
7 192-8742 Limit switch (step board) $72.78 1 ships same day
8 292-0525 Bolt $18.07 2 usually ships 30-75 days
9 192-0086 Snap ring $2.44 6 ships same day
10 292-0388 Tension spring $10.75 2 ships same day
11 192-9178 Brush actuator $352.57 1 ships same day
12 192-9182 Bolt $6.72 2 ships same day
13 292-0526 Support assembly $170.40 1 usually ships 30-75 days
14 292-0527 Shackle $15.09 2 usually ships 30-75 days
15 292-0528 Bracket $120.52 1 usually ships 30-75 days
16 292-0529 Bolt $23.76 4 usually ships 30-75 days
17 192-6161 Rubber bushing $3.42 4 ships same day
18 192-5845 24V pump $157.47 2 ships same day
19 192-0334 Hose clamp $3.26 4 usually ships 12-29 days
20 192-0404 Wire reinforced hose (sold by the inch) $0.99 9 in ships same day
21 192-0404 Wire reinforced hose (sold by the inch) $0.99 9 in ships same day
22 192-1125 Stop buffer $4.84 2 ships same day
23 192-1306 Bushing $7.03 2 usually ships 1-5 days
24 192-0347 Nut M8 hex $0.89 2 ships same day
25 292-5568 Connection block $8.99 2 usually ships 30-75 days
26 192-1105 Screw M4 x 20mm socket head $2.44 2 usually ships 1-5 days
27 292-5527 Clamp $2.44 2 usually ships 1-5 days
28 192-6347 Screw M4 x 10mm self tapping form $2.44 3 usually ships 30-75 days
29 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
30 192-0468 Screw M10 x 20 hex $4.71 2 usually ships 30-75 days
31 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
32 192-1872 Grease $11.99 1 ships same day
33 192-5471 Paste silicone 100 gr (OBSOLETE) $162.22 1 usually ships 30-75 days
