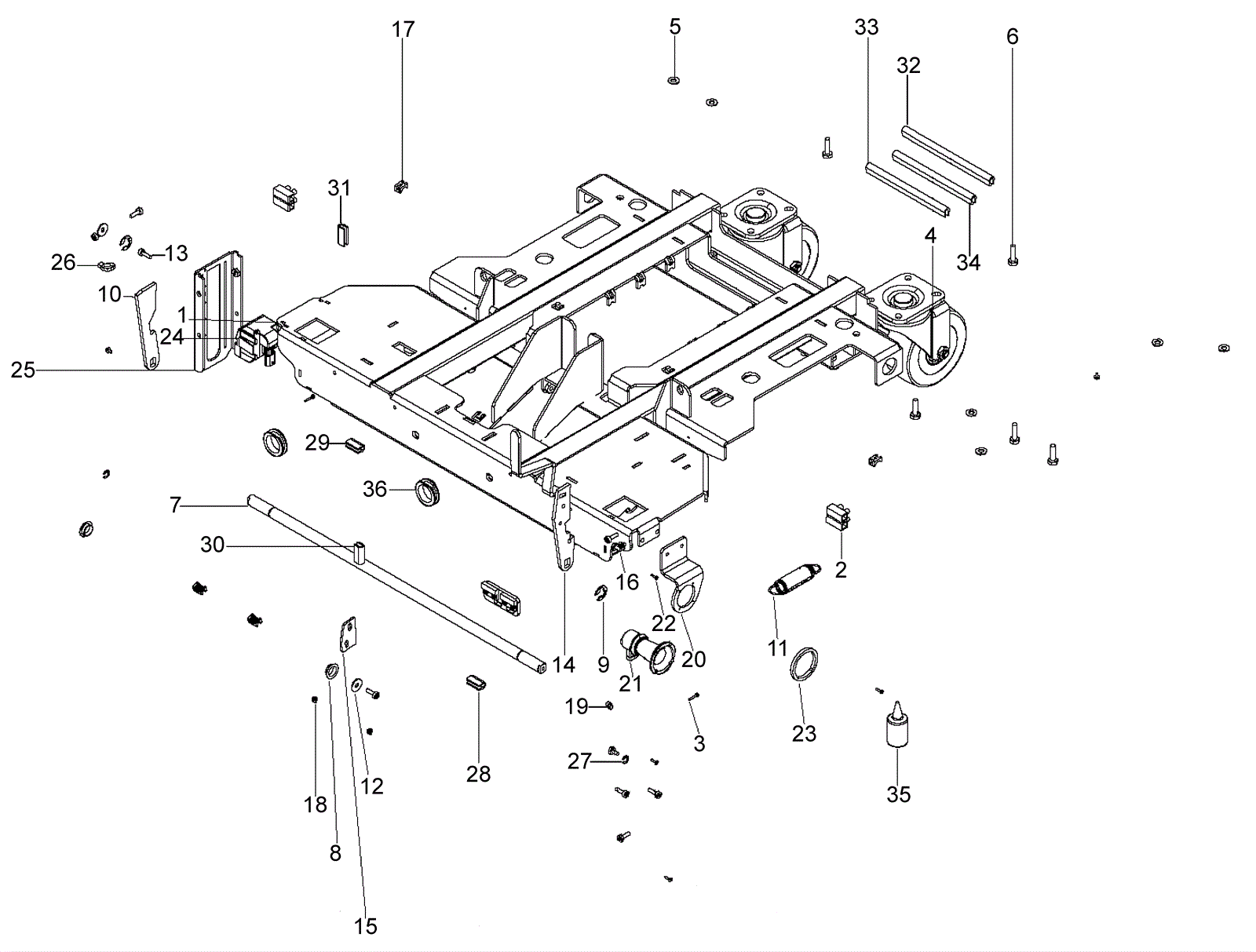

Swingobot 2000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-0508 Chassis $1,235.95 1 usually ships 30-75 days
2 292-5568 Connection block $8.99 2 usually ships 30-75 days
3 192-9692 Screw M3 x 16mm $2.44 2 usually ships 1-5 days
4 292-0509 Caster wheel assembly $205.13 2 ships same day
5 192-0105 Washer M8 $2.44 8 ships same day
6 192-0822 Screw M8 x 25 hex head $3.30 8 usually ships 30-75 days
7 292-0510 Shaft $102.39 1 usually ships 30-75 days
8 192-9351 Grommet $2.44 2 ships same day
9 192-2776 Snap ring $2.44 2 ships same day
10 292-0511 Lever $8.37 1 usually ships 30-75 days
11 292-0388 Tension spring $10.75 1 ships same day
12 192-7421 Washer $2.44 2 usually ships 30-75 days
13 192-5942 Screw M6 x 16mm raised cheese head torx $2.44 8 ships same day
14 292-0512 Holder plate $5.08 1 usually ships 30-75 days
15 292-0513 Locking lever $34.93 1 usually ships 30-75 days
16 192-1109 Screw M6 x 10mm hex head $0.89 2 ships same day
17 292-5527 Clamp $2.44 4 usually ships 1-5 days
18 192-1140 Screw M4 x 8mm self tapping form $2.44 5 ships same day
19 192-0200 Washer M6 $3.12 2 ships same day
20 292-0514 Holder $15.70 1 usually ships 30-75 days
21 292-0515 Sonar sensor set $286.40 1 usually ships 30-75 days
22 192-0003 Screw M3 x 10mm raised head $1.13 4 ships same day
23 292-0516 Gasket $8.75 1 usually ships 30-75 days
24 292-5668 Sonar sensor set $808.72 1 ships same day
25 292-0517 Right hand holder $89.96 1 usually ships 30-75 days
26 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
27 192-0840 Snap ring $2.44 2 ships same day
28 192-2351 Bumper (sold by the inch) $9.06 1 in usually ships 30-75 days
29 192-2351 Bumper (sold by the inch) $9.06 1 in usually ships 30-75 days
30 192-2351 Bumper (sold by the inch) $9.06 1 in usually ships 30-75 days
31 192-2351 Bumper (sold by the inch) $9.06 1 in usually ships 30-75 days
32 192-2351 Bumper (sold by the inch) $9.06 9 in usually ships 30-75 days
33 192-2351 Bumper (sold by the inch) $9.06 7 in usually ships 30-75 days
34 192-2351 Bumper (sold by the inch) $9.06 7 in usually ships 30-75 days
35 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
36 192-1082 Grommet $2.44 2 usually ships 30-75 days
