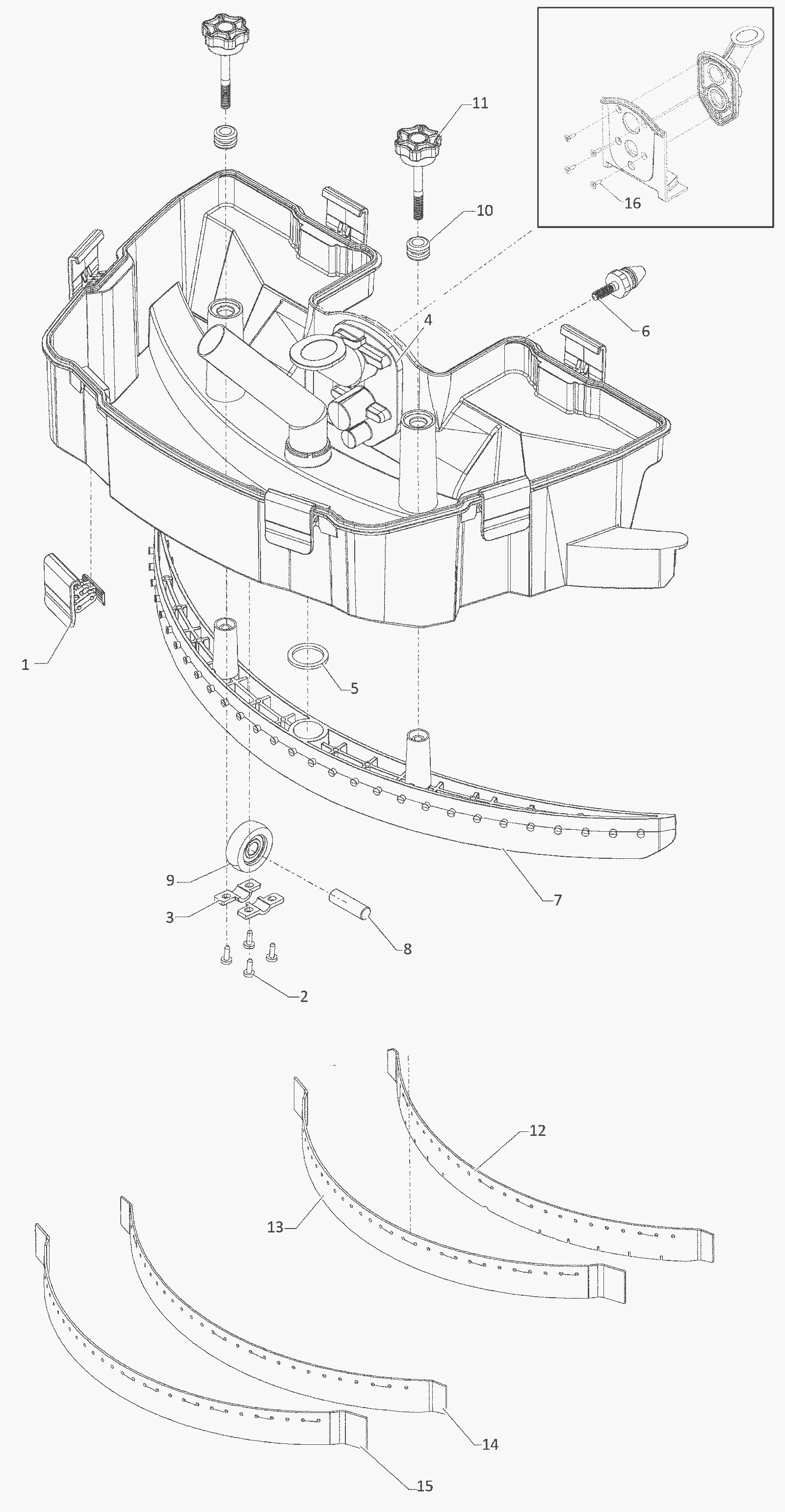

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5916
|
Tank Lock |
6 |
|
|
2 |
192-0767
|
Screw KA 40 x 10 |
4 |
|
|
3 |
292-5917
|
Holder |
2 |
|
|
4 |
292-5918
|
Tank insert |
1 |
|
|
5 |
292-5919
|
Gasket |
1 |
|
|
6 |
292-5920
|
Locking |
1 |
|
|
7 |
292-5921
|
Clamping part |
1 |
|
|
8 |
292-5922
|
Axle |
1 |
|
|
9 |
292-5923
|
Wheel |
1 |
|
|
10 |
192-0627
|
Grommet |
2 |
|
|
11 |
292-5924
|
Star knob |
2 |
|
|
12 |
292-5925
|
23 inch squeegee blade front PU |
1 |
|
|
13 |
292-5926
|
24 inch squeegee blade rear PU |
1 |
|
|
14 |
292-5927
|
23 inch squeegee blade front |
1 |
(optional) |
|
15 |
292-5928
|
24 inch squeegee blade rear |
1 |
(optional) |
|
16 |
292-5929
|
Screw 40x12 |
4 |
|
|
