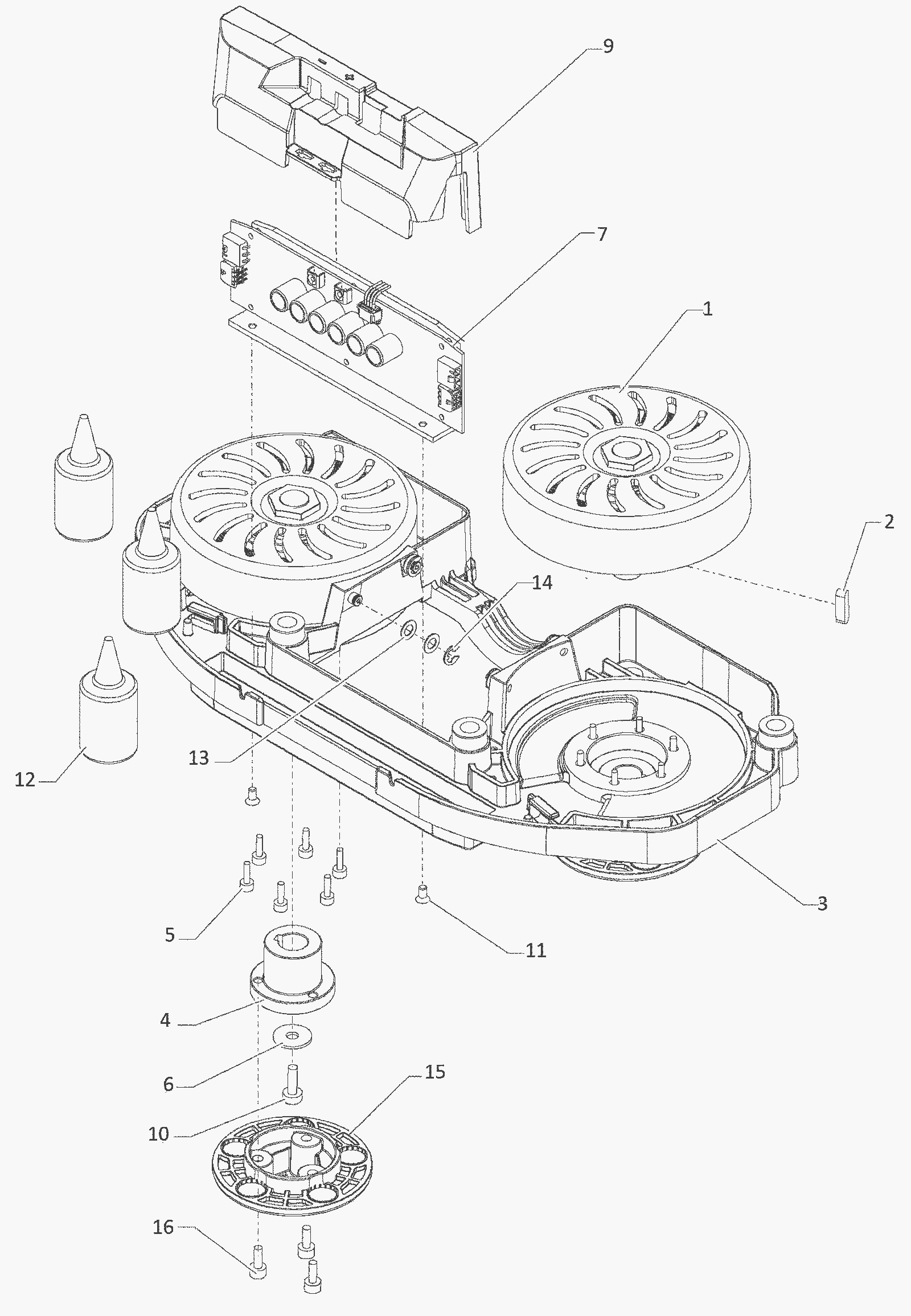

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5894
|
36V motor |
2 |
|
|
2 |
192-4649
|
Key 5/5 x 14 |
2 |
|
|
3 |
292-5895
|
Motor plate |
1 |
|
|
4 |
292-5896
|
Adapter |
2 |
|
|
5 |
192-6475
|
Screw M4 x 12 socket head cap |
12 |
|
|
6 |
192-7421
|
Washer |
2 |
|
|
7 |
292-5897
|
Motor controller |
1 |
|
|
8 |
192-0973
|
3 1/4 inch cable tie |
2 |
|
|
9 |
292-5898
|
Cover |
1 |
|
|
10 |
192-5942
|
Screw M6 x 16mm raised cheese head torx |
2 |
|
|
11 |
192-2991
|
Screw M4 x 12 countersunk head |
2 |
|
|
12 |
192-1872
|
Grease |
1 |
|
|
13 |
292-5899
|
Washer |
8 |
|
|
14 |
192-0902
|
Snap ring |
4 |
|
|
15 |
292-5900
|
Coupling |
2 |
|
|
16 |
999-9096
|
Screw M5-.8 x 12mm socket head stainless steel |
6 |
|
|
N/S |
292-5901
|
Screw M4x6 cheese head |
1 |
|
|
N/S |
292-5902
|
Screw M3x6 cheese head |
1 |
|
|
N/S |
292-5903
|
Bolt |
4 |
|
|
N/S |
192-1872
|
Grease |
1 |
|
|
N/S |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
