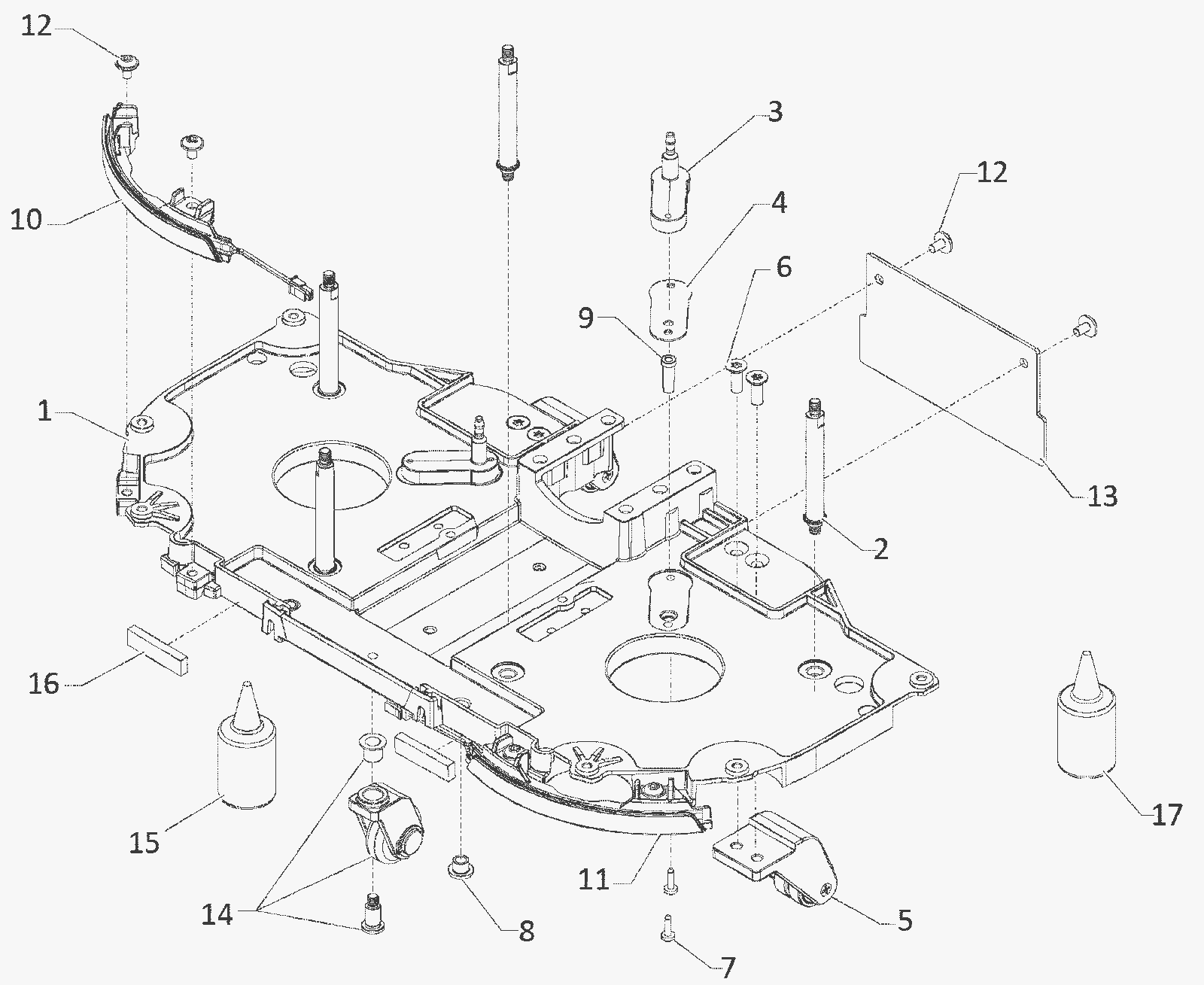

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5884
|
Brush plate |
1 |
|
|
2 |
292-5885
|
Guide bar |
4 |
|
|
3 |
292-5886
|
Water connector |
2 |
|
|
4 |
292-5887
|
Gasket |
2 |
|
|
5 |
292-5888
|
Rear wheel |
2 |
|
|
6 |
192-2979
|
Screw M6 x 16mm countersunk head cap |
4 |
|
|
7 |
192-1066
|
Screw 40 x 12 |
4 |
|
|
8 |
192-9141
|
Stopper |
2 |
|
|
9 |
292-5889
|
Nozzle |
2 |
|
|
10 |
292-5890
|
Right hand LED |
1 |
|
|
11 |
292-5891
|
Left hand LED |
1 |
|
|
12 |
292-0597
|
Screw M5 x 8mm raised cheese head screw |
6 |
|
|
13 |
292-5892
|
Splash guard |
1 |
|
|
14 |
292-5893
|
Front wheel |
1 |
|
|
15 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
16 |
192-6310
|
Seal strip (sold by the inch) |
4 inch |
|
|
17 |
192-1872
|
Grease |
1 |
|
|
