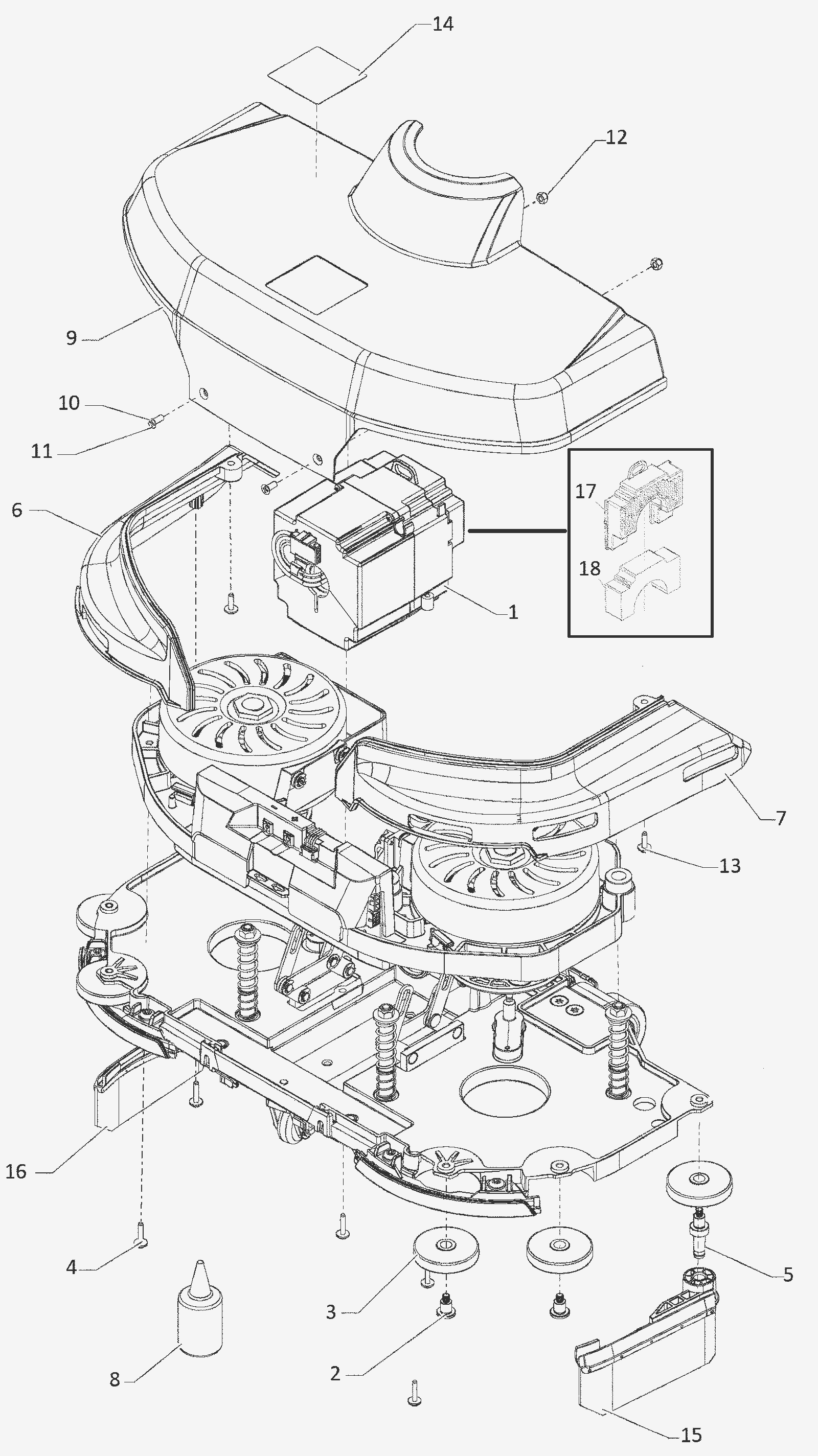

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5861
|
Suction unit |
1 |
|
|
2 |
292-5862
|
Bolt |
4 |
|
|
3 |
292-5863
|
Wheel |
6 |
|
|
4 |
192-1595
|
Screw M40 x 16mm torx head |
6 |
|
|
5 |
292-5864
|
Bolt |
2 |
|
|
6 |
292-5865
|
Right hand cover |
1 |
|
|
7 |
292-5866
|
Left hand cover |
1 |
|
|
8 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
9 |
292-5867
|
Cover |
1 |
|
|
10 |
999-1997
|
Screw M4-.07 x 10mm cheese head phillips zinc |
2 |
|
|
11 |
192-8455
|
Screw M4 x 10 countersunk head |
2 |
|
|
12 |
192-0235
|
Nut M4 self locking |
2 |
|
|
13 |
292-5868
|
Screw 40x12 torx |
2 |
|
|
14 |
292-5869
|
Decal |
1 |
|
|
15 |
292-5870
|
Left hand splash guard |
1 |
(optional) |
|
16 |
292-5871
|
Right hand splash guard |
1 |
(optional) |
|
17 |
292-5904
|
Filter housing |
1 |
|
|
