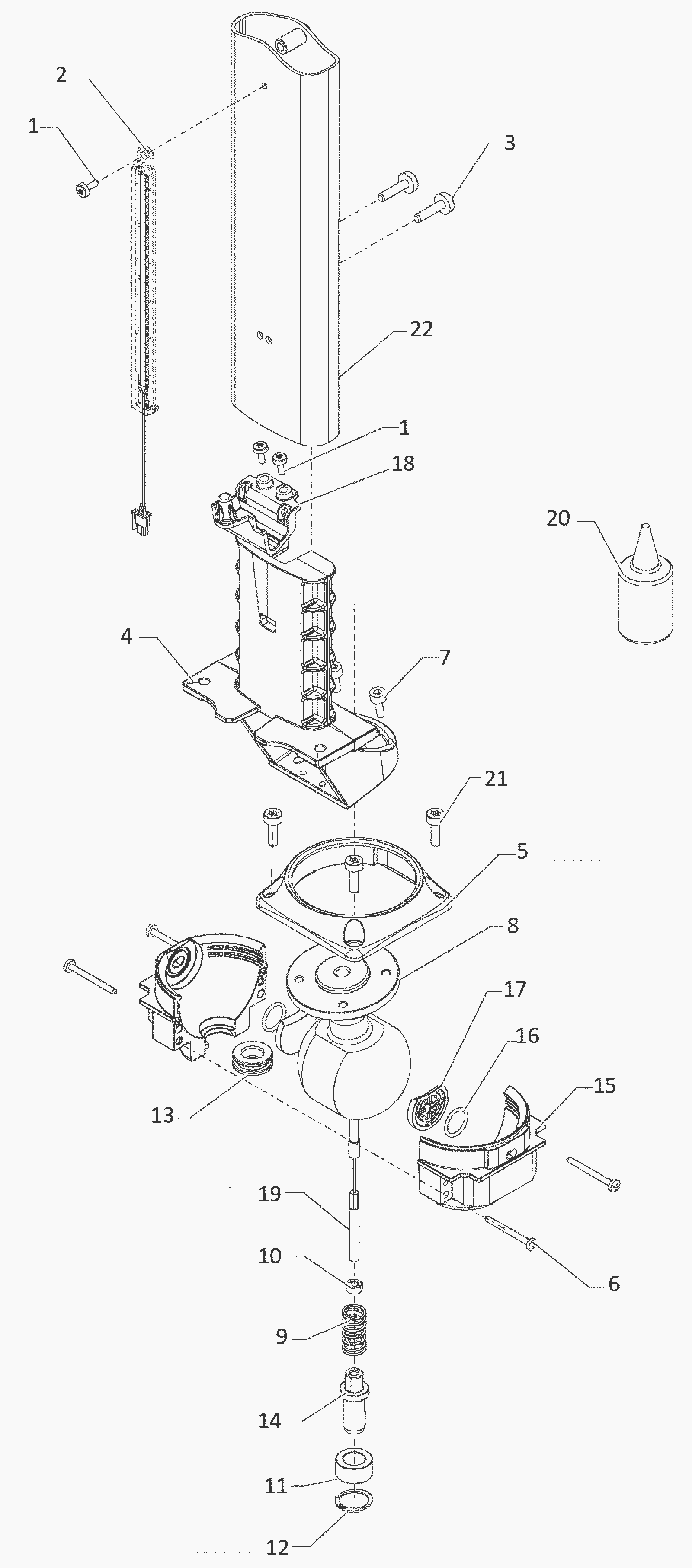

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
192-6347
|
Screw M4 x 10mm self tapping form |
3 |
|
|
2 |
292-5850
|
Tank lighting |
1 |
|
|
3 |
292-0182
|
Screw M6 x 20mm |
2 |
|
|
4 |
292-5845
|
Articulation |
1 |
|
|
5 |
292-5851
|
Support |
1 |
|
|
6 |
192-6281
|
Screw KA 40 x 35 |
4 |
|
|
7 |
999-9096
|
Screw M5-.8 x 12mm socket head stainless steel |
4 |
|
|
8 |
292-5852
|
Ball Joint |
1 |
|
|
9 |
192-5671
|
Pressure spring |
1 |
|
|
10 |
192-0195
|
Nut M5 hex |
1 |
|
|
11 |
292-5853
|
Bushing 12/20 x 10 |
1 |
|
|
12 |
292-5854
|
Retaining ring |
1 |
|
|
13 |
292-5855
|
Bushing |
1 |
|
|
14 |
292-5856
|
Locking pin |
1 |
|
|
15 |
292-5857
|
Bearing shell |
2 |
|
|
16 |
192-5363
|
O-ring |
2 |
|
|
17 |
292-5858
|
Sliding block |
2 |
|
|
18 |
292-5859
|
Cable hook |
1 |
|
|
19 |
292-5860
|
Bowden cable |
1 |
|
|
20 |
192-1872
|
Grease |
1 |
|
|
21 |
192-5942
|
Screw M6 x 16mm raised cheese head torx |
4 |
|
|
22 |
292-5817
|
Profile pipe |
1 |
|
|
N/S |
192-0102
|
7 3/4 inch cable tie |
2 |
|
|
