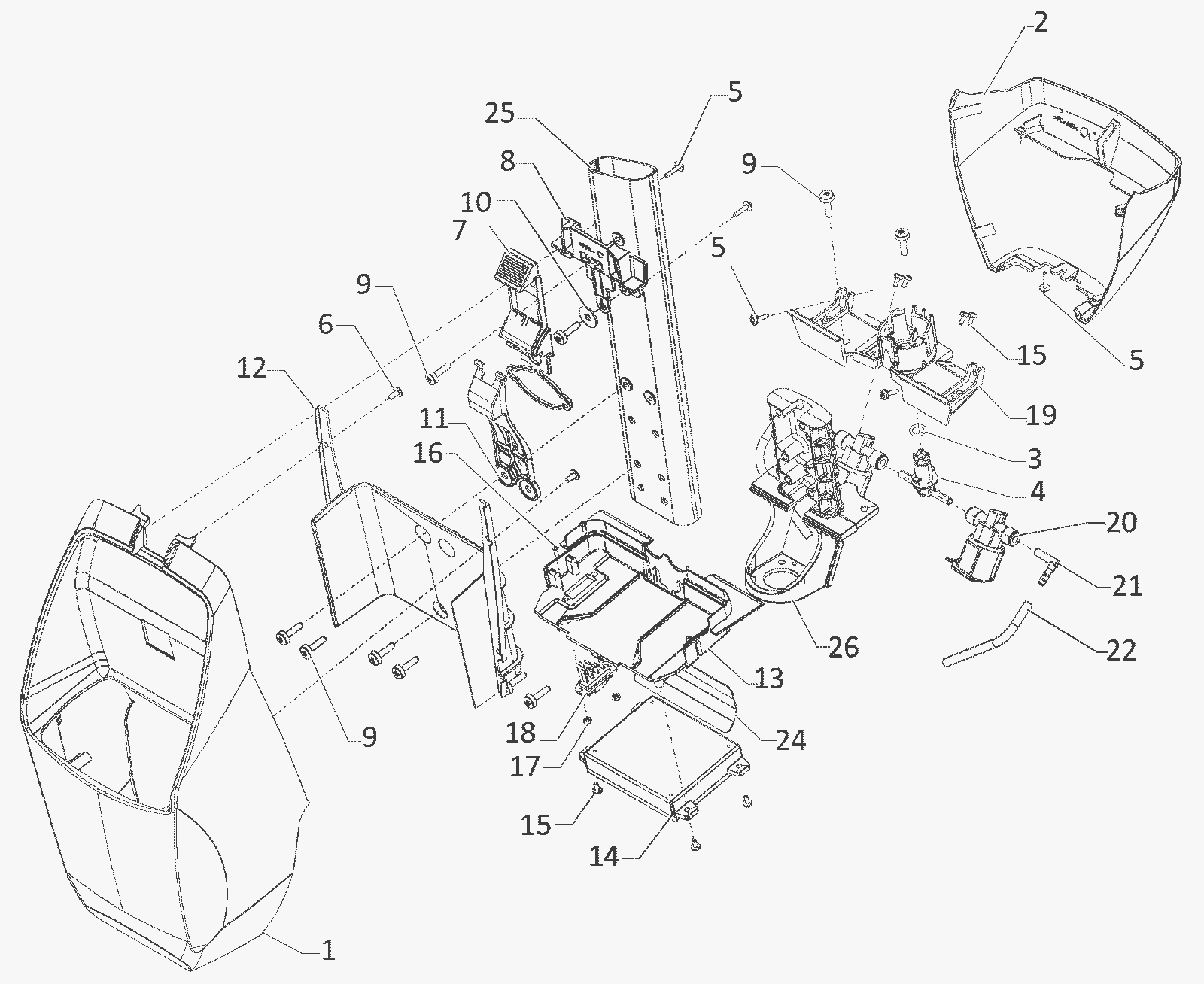

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5829
|
Rear panel |
1 |
|
|
2 |
292-5830
|
Front cover |
1 |
|
|
3 |
292-5831
|
O-ring |
1 |
|
|
4 |
292-5832
|
T-nipple |
1 |
|
|
5 |
192-1595
|
Screw M40 x 16mm torx head |
5 |
|
|
6 |
999-1997
|
Screw M4-.07 x 10mm cheese head phillips zinc |
4 |
|
|
7 |
292-5833
|
Button |
1 |
|
|
8 |
292-5834
|
Holder |
1 |
|
|
9 |
292-0182
|
Screw M6 x 20mm |
10 |
|
|
10 |
192-7421
|
Washer |
1 |
|
|
11 |
292-5835
|
Locking plate |
1 |
|
|
12 |
292-5836
|
Battery housing |
1 |
|
|
13 |
292-5837
|
Support |
1 |
|
|
14 |
292-5838
|
Electronics |
1 |
|
|
15 |
192-8584
|
Screw 40 x 8 |
8 |
|
|
16 |
292-5839
|
Screw M3 x 10mm counter head torx |
2 |
|
|
17 |
192-0015
|
Nut M3 self locking |
2 |
|
|
18 |
292-5840
|
Cable strand complete |
1 |
|
|
19 |
292-5841
|
Support |
1 |
|
|
20 |
292-5842
|
36V magnetic valve |
2 |
|
|
21 |
292-5843
|
Angled nipple |
2 |
|
|
22a |
192-6437
|
Silicone hose (sold by the inch) |
23 inch |
|
|
22b |
192-6437
|
Silicone hose (sold by the inch) |
24 inch |
|
|
24 |
292-5844
|
Splash guard |
1 |
|
|
25 |
292-5817
|
Profile pipe |
1 |
|
|
26 |
292-5845
|
Articulation |
1 |
|
|
