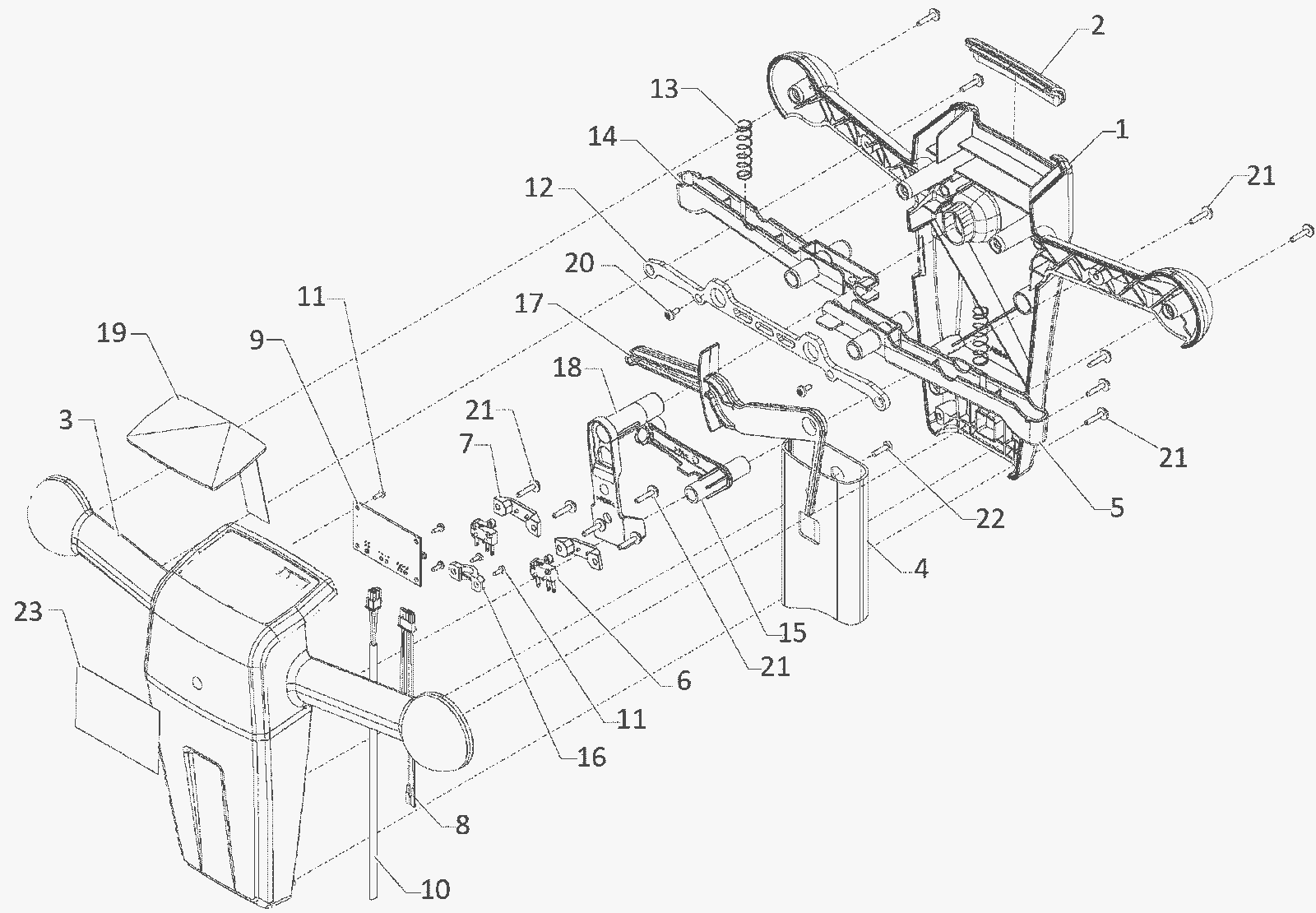

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5814
|
Handle housing back |
1 |
|
|
2 |
292-5815
|
Bumper |
1 |
|
|
3 |
292-5816
|
Handle housing front |
1 |
|
|
4 |
292-5817
|
Profile pipe |
1 |
|
|
5 |
292-5818
|
Lever |
1 |
|
|
6 |
192-8721
|
Microswitch |
2 |
|
|
7 |
292-9146
|
Holder |
2 |
|
|
8 |
292-5819
|
Wire harness |
1 |
|
|
9 |
292-5820
|
Electronics |
1 |
|
|
10 |
292-5821
|
Conntecting cable 4L |
1 |
|
|
11 |
192-6283
|
Screw for plastic KA 30 x 8 |
6 |
|
|
12 |
292-5822
|
Support |
1 |
|
|
13 |
192-5681
|
Pressure spring 10-1/2 x 42-29/32 |
2 |
|
|
14 |
292-5823
|
Right lever |
1 |
|
|
15 |
292-5824
|
Driving stud |
1 |
|
|
16 |
192-2496
|
Cable clamp |
1 |
|
|
17 |
292-5825
|
Lever |
1 |
|
|
18 |
292-5826
|
Holder |
1 |
|
|
19 |
292-5827
|
Keypad |
1 |
|
|
20 |
192-8584
|
Screw 40 x 8 |
2 |
|
|
21 |
192-1595
|
Screw M40 x 16mm torx head |
17 |
|
|
22 |
192-0547
|
Screw KA 40 x 14 |
1 |
|
|
23 |
292-5828
|
Decorative decal |
1 |
|
|
