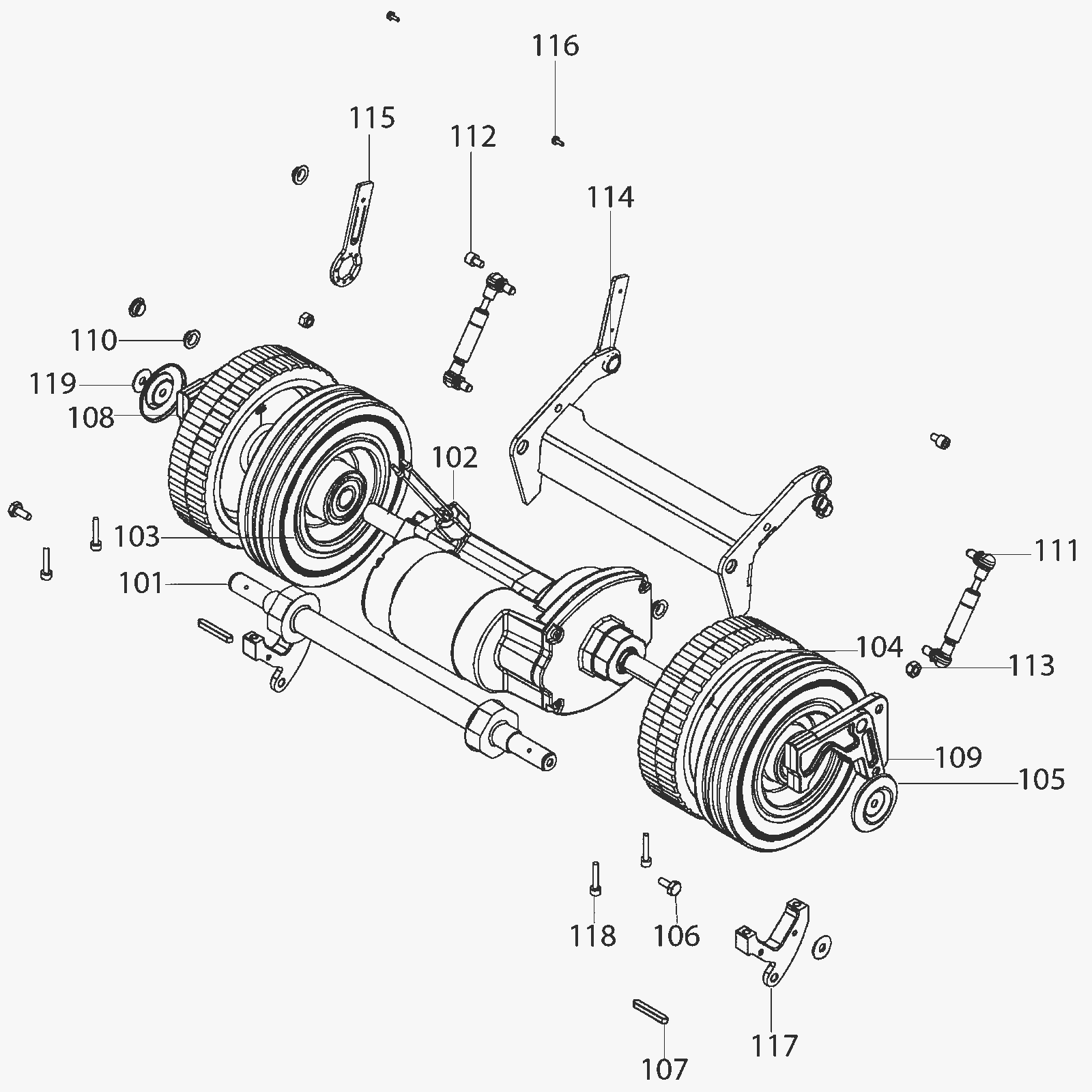

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9228
|
Wheel axle |
1 |
(1900) (eco) |
|
102 |
292-9224
|
Drive unit |
1 |
(performance) |
|
103 |
192-2672
|
Wheel |
2 |
(eco) |
|
104 |
192-7505
|
Drive wheel (standard) (gray) |
2 |
(performance) |
|
105 |
192-3077
|
Disk |
2 |
|
|
106 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
107 |
192-4651
|
Square keyway |
2 |
(performance) |
|
108 |
292-9221
|
Left hand cradle |
1 |
|
|
109 |
292-9220
|
Right hand cradle |
1 |
|
|
110 |
192-9790
|
Slide bearing |
6 |
|
|
111 |
292-9226
|
Gas spring strut |
2 |
|
|
112 |
999-9134
|
Screw M8-1.25 x 10mm socket head stainless steel |
2 |
|
|
113 |
192-0510
|
Nut M8 self locking |
2 |
|
|
114 |
292-9227
|
Cradle |
1 |
|
|
115 |
192-4831
|
Locking lever |
1 |
|
|
116 |
192-6347
|
Screw M4 x 10mm self tapping form |
2 |
|
|
117 |
292-9223
|
Holder |
2 |
|
|
118 |
999-6766
|
Screw M6-1.0 x 30mm socket head stainless steel |
4 |
|
|
119 |
192-0604
|
Washer M8 |
2 |
(performance) (used before 05.2023) |
|
