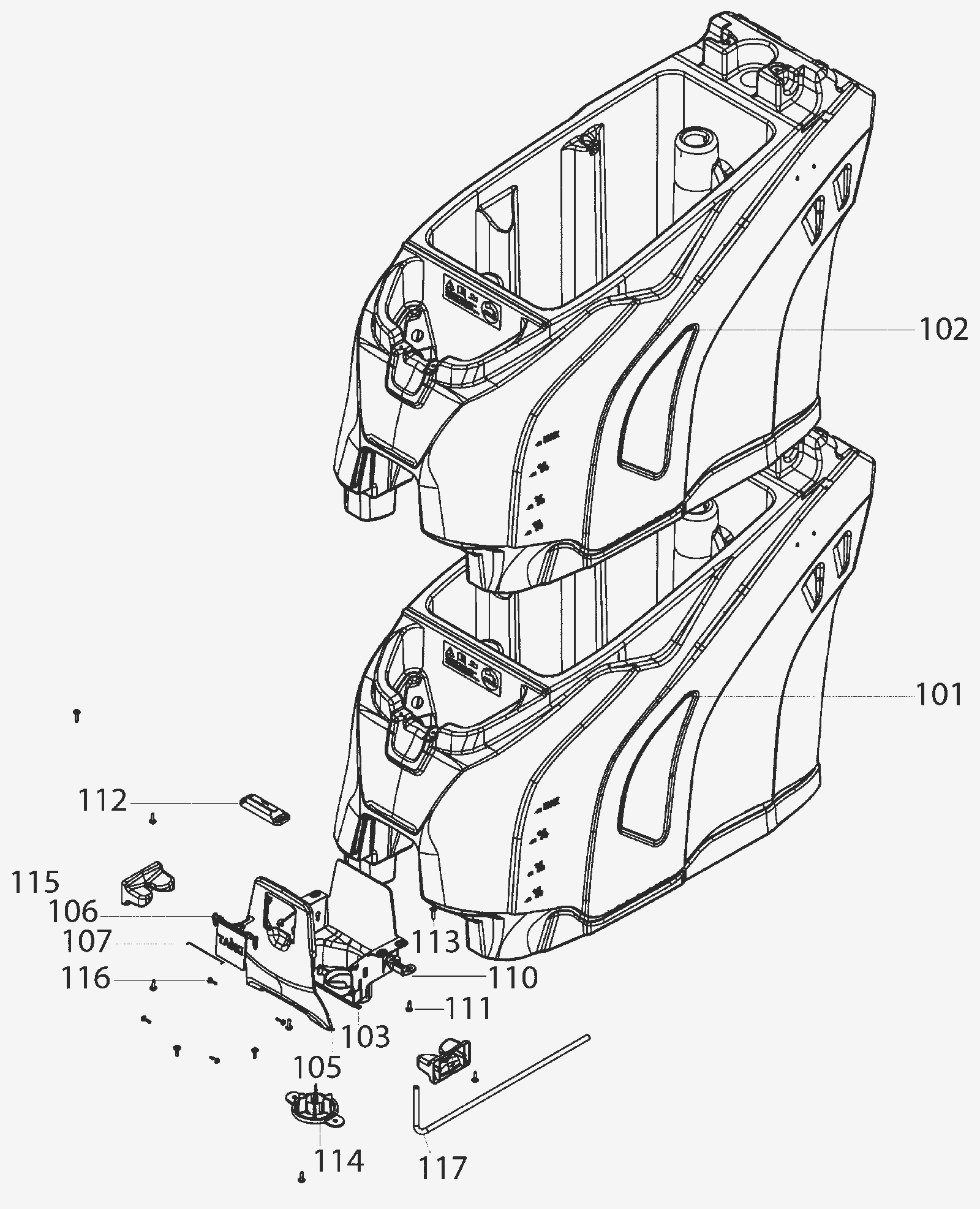

| # | Part | Description |
Req | Notes | Availability |
|---|
101a |
292-9399
|
Tank |
1 |
(1900) |
|
101b |
292-9446
|
Tank |
1 |
(2900) |
|
102a |
292-9400
|
Tank |
1 |
(1900) (BAC) |
|
102b |
392-0138
|
Tank |
1 |
(2900) (BAC) |
|
103 |
392-0101
|
Support |
1 |
(Used after 06.2023) |
|
105 |
292-9202
|
Pouchdoor |
1 |
|
|
106 |
292-9203
|
Handle |
1 |
|
|
107 |
292-9204
|
Torsion spring |
1 |
|
|
110 |
292-9206
|
Holder |
1 |
|
|
111 |
192-1571
|
Screw M50 x 16mm |
8 |
|
|
112 |
292-9207
|
Hook |
1 |
|
|
113 |
192-9147
|
Screw 50 x 20 |
2 |
|
|
114 |
292-9404
|
Pouch receptacle |
1 |
(IntelliDose+) |
|
115 |
292-9405
|
Pouch holder |
2 |
(IntelliDose+) |
|
116 |
192-1595
|
Screw M40 x 16mm torx head |
4 |
(IntelliDose+) |
|
117a |
192-4344
|
Hose (sold by the inch) |
77 inch |
(1900) |
|
117b |
192-4344
|
Hose (sold by the inch) |
100 inch |
(2900) |
|
N/S |
192-0101
|
Screw M5 x 12mm self tapping form |
8 |
(Used before 06.2023) |
|
N/S |
292-9205
|
Brush bearing |
2 |
(Used before 06.2023) |
|
N/S |
192-0289
|
Screw M6 x 10mm socket head |
2 |
(Used before 06.2023) |
|
N/S |
292-9571
|
Decorative decal |
1 |
(1900) |
|
N/S |
392-0139
|
Decorative decal |
|
(2900) |
|
N/S |
292-5099
|
Recommended parts decal |
1 |
|
|
