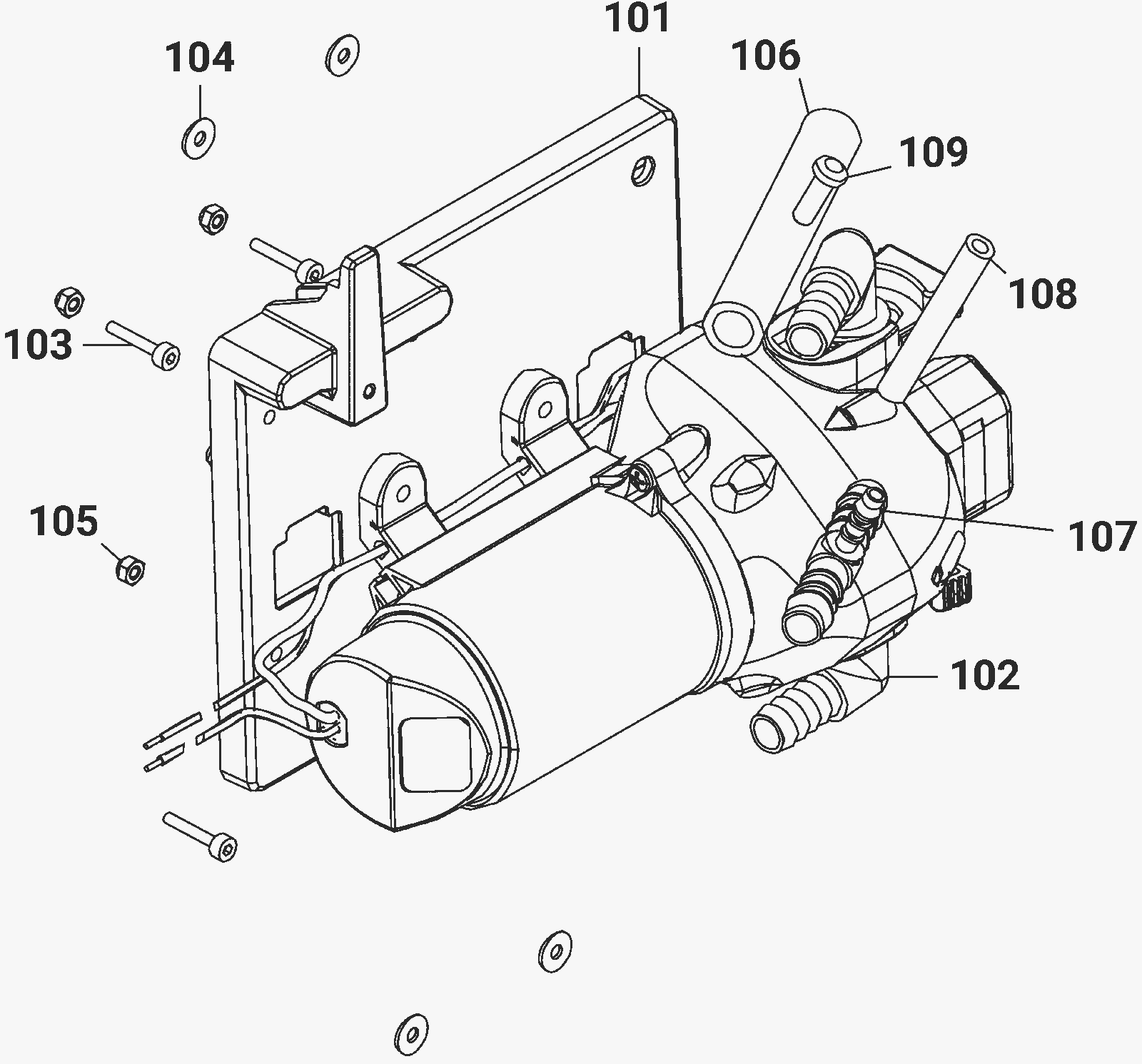

Pump Assembly
Click to enlarge
#
Part
Description
Req
Notes
Availability
101
292-9427
Support
1
102
292-9269
24V pump
1
103
192-1105
Screw M4 x 20mm socket head
4
104
192-0149
Washer
4
107
192-9542
T-nipple
1
