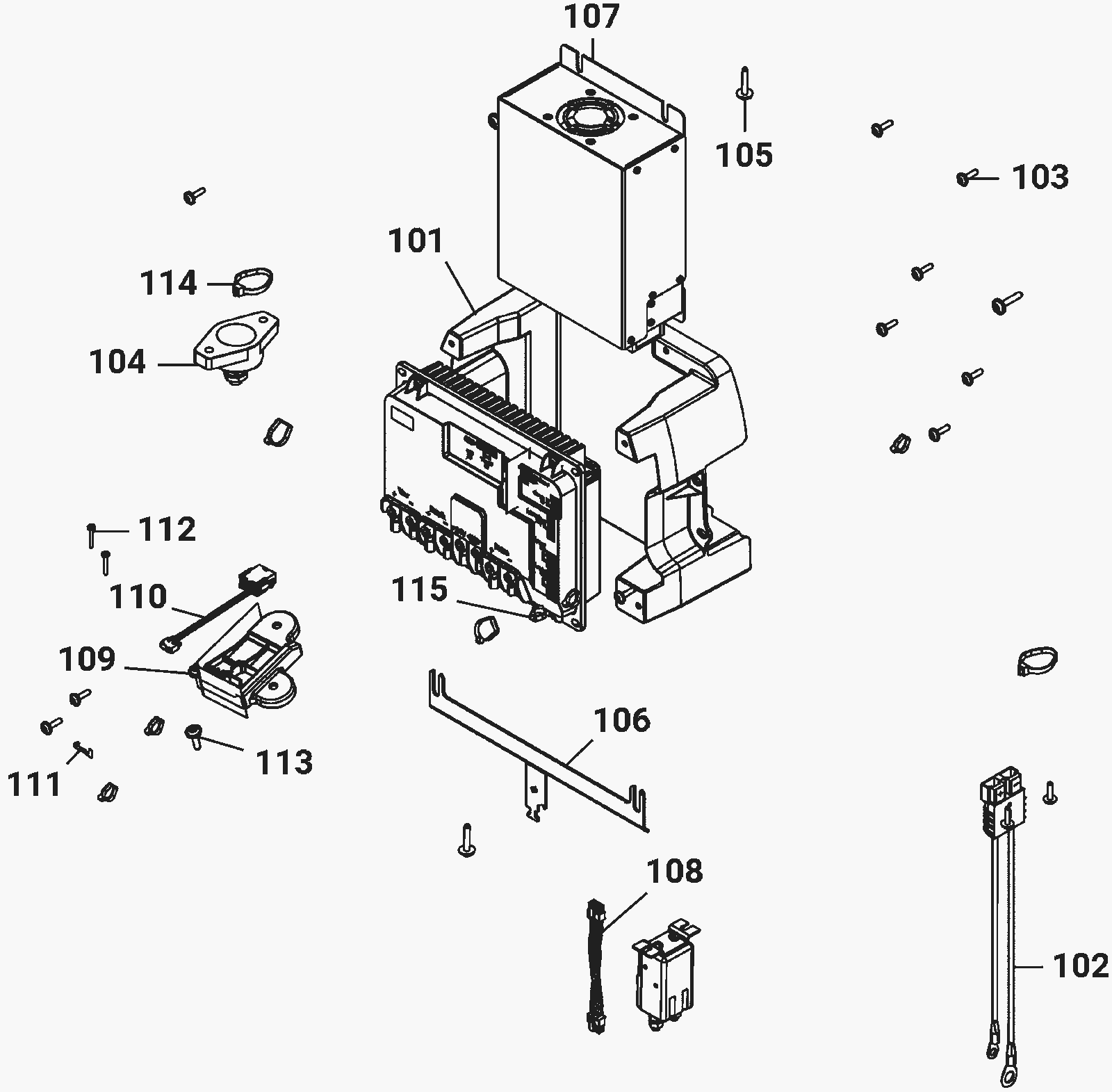

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-1013
|
Rear panel |
1 |
|
|
102 |
292-9381
|
Charger jack wire harness |
1 |
(non-BMS) |
|
103 |
192-1571
|
Screw M50 x 16mm |
10 |
|
|
104 |
292-9386
|
Power post M10 |
1 |
|
|
105 |
192-8848
|
Screw 60 x 25 torx |
4 |
|
|
106 |
292-1014
|
Strain relief bar |
1 |
|
|
107 |
292-9422
|
24V charger |
1 |
(BMS 13amp) |
|
108 |
292-9387
|
Electronics charger wire |
1 |
(BMS) |
|
109 |
292-9378
|
Holder |
1 |
(non-BMS) |
|
110 |
292-1015
|
Wire harness |
1 |
(non-BMS) |
|
111 |
192-8784
|
Switch lever |
1 |
(non-BMS) |
|
112 |
192-0549
|
Screw KA 35 x 20 |
2 |
(non-BMS) |
|
113 |
192-1561
|
Screw 60 x 20 torx head |
4 |
(non-BMS) |
|
114 |
192-0102
|
7 3/4 inch cable tie |
10 |
|
|
115 |
292-1016
|
Hose bracket |
1 |
|
|
N/S |
292-5738
|
24V relay |
1 |
|
|
N/S |
292-9388
|
Diode |
1 |
|
|
N/S |
292-9382
|
Electronics |
1 |
|
|
N/S |
192-9973
|
Onboard charger cord |
1 |
|
|
