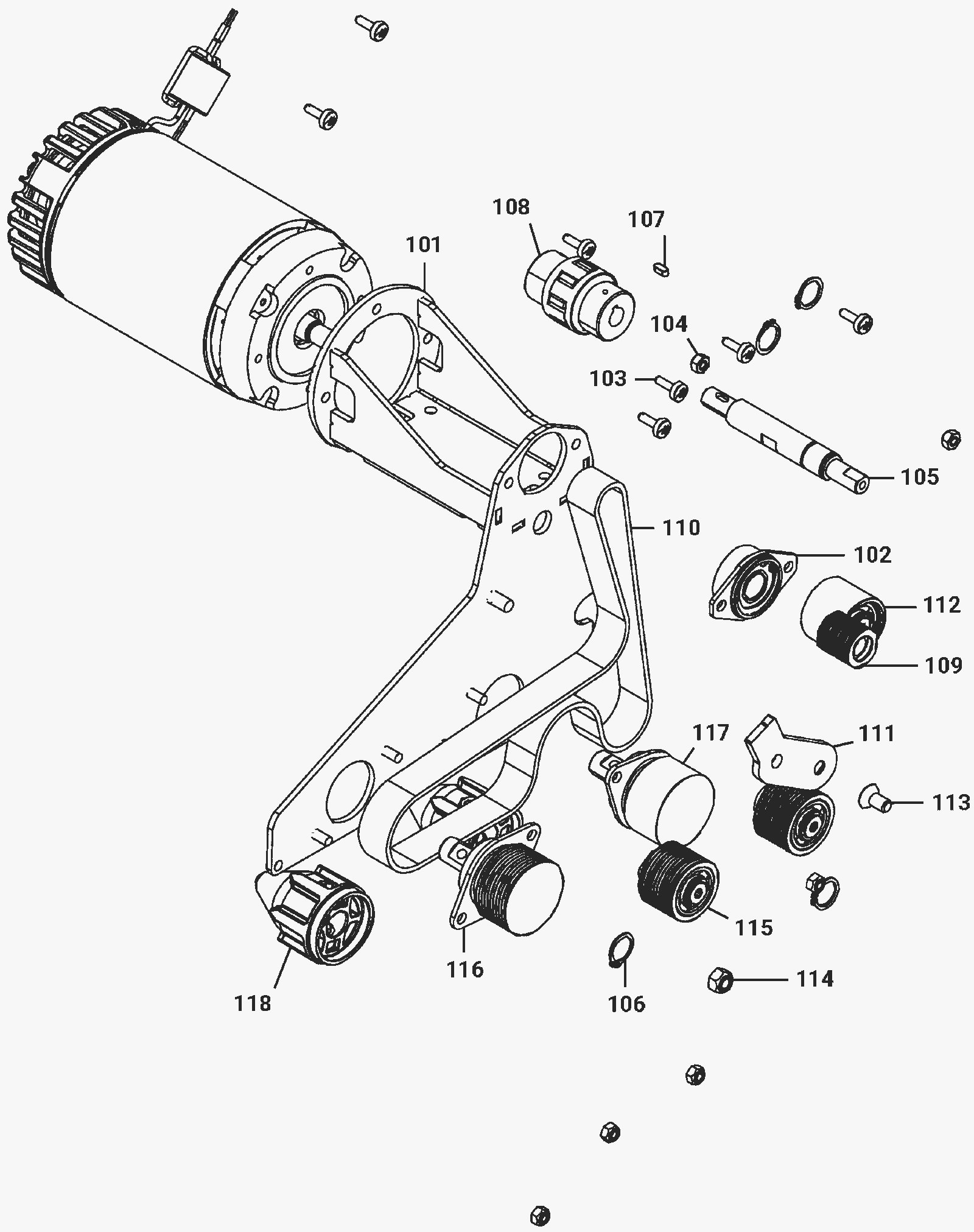

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-1011
|
Support |
1 |
|
|
102 |
292-9351
|
Bearing |
1 |
|
|
103 |
292-5130
|
Screw M6-1 x 16mm torx |
7 |
|
|
104 |
192-6345
|
Nut M6 self locking |
6 |
|
|
105 |
292-1012
|
Shaft |
1 |
|
|
106 |
192-6039
|
Retaining ring |
4 |
|
|
107 |
192-4648
|
Square keyway |
1 |
|
|
108 |
292-9354
|
Coupling |
1 |
|
|
109 |
292-9356
|
Pulley |
1 |
|
|
110 |
292-9357
|
Poly-v belt |
1 |
|
|
111 |
292-9358
|
Plate |
1 |
|
|
112 |
292-0164
|
Roller |
1 |
|
|
113 |
292-5530
|
Screw M8 x 16 countersunk |
1 |
|
|
114 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
115 |
192-4543
|
Axle idler kit |
2 |
|
|
116 |
292-9359
|
Pulley |
1 |
|
|
117 |
292-9360
|
Pulley |
1 |
|
|
118 |
292-9361
|
Coupling |
2 |
|
|
N/S |
292-9355
|
24V motor |
1 |
|
|
