| # | Part | Description |
Req | Notes | Availability |
|---|
000 |

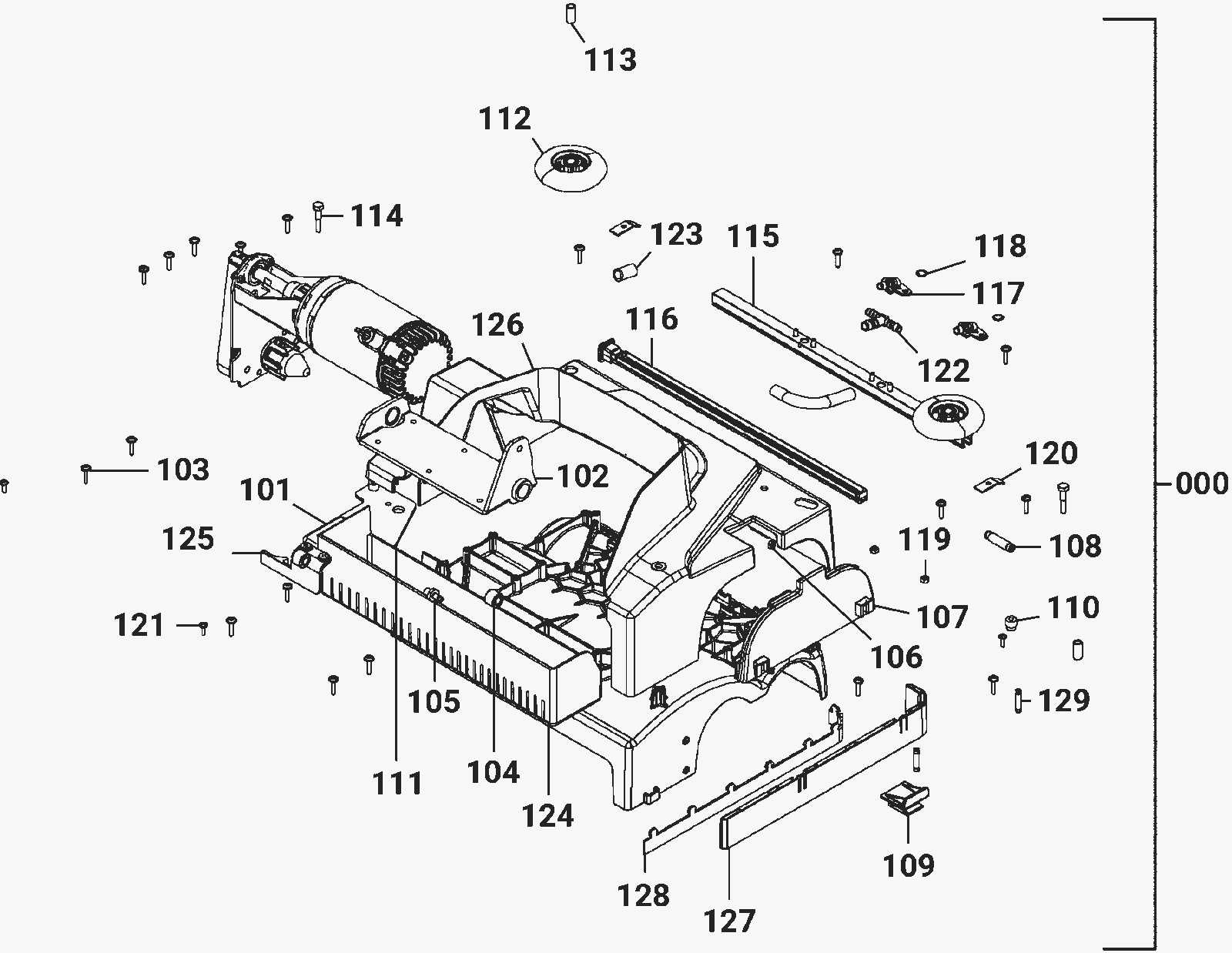

292-1000
|
Rollerbrush unit 45 |
1 |
(includes 101-129) |
|
101 |
292-1003
|
18 inch housing |
1 |
|
|
102 |
292-9327
|
Holder plate |
1 |
|
|
103 |
192-8848
|
Screw 60 x 25 torx |
18 |
|
|
104 |
192-1953
|
Bushing |
2 |
|
|
105 |
192-2085
|
Bolt |
1 |
|
|
106 |
192-6345
|
Nut M6 self locking |
1 |
|
|
107 |
292-9330
|
Plate |
1 |
|
|
108 |
192-8870
|
Pressure spring |
1 |
|
|
109 |
292-9331
|
Locking plate |
1 |
|
|
110 |
292-9332
|
Holder |
1 |
|
|
111 |
292-9333
|
Holder |
1 |
|
|
112 |
192-8744
|
Wheel |
2 |
|
|
113 |
192-9803
|
Bushing |
2 |
|
|
114 |
192-9212
|
Screw M8 x 40/22mm hex |
2 |
|
|
115 |
292-1004
|
Dispenser tube |
1 |
|
|
116 |
292-1005
|
Dispenser channel |
1 |
|
|
117 |
292-9338
|
Water connector |
2 |
|
|
118 |
292-9266
|
O-ring |
2 |
|
|
119 |
192-0563
|
Nut M6 self-locking |
4 |
|
|
120 |
292-9339
|
Clamp |
2 |
|
|
121 |
192-1571
|
Screw M50 x 16mm |
4 |
|
|
122 |
292-9314
|
T-nipple |
1 |
|
|
123 |
192-0400
|
Wire reinforced hose (sold by the inch) |
13 in |
|
|
124 |
292-1006
|
Coarse dirt container |
1 |
|
|
125 |
292-9342
|
Locking plate |
1 |
|
|
126 |
292-1007
|
Brush housing |
1 |
|
|
127 |
292-1008
|
Holding bar |
1 |
|
|
128 |
292-1009
|
Blade |
1 |
|
|
129 |
292-1010
|
Pressure spring |
2 |
|
|
N/S |
192-6489
|
Screw M6 x 16 socket head cap |
1 |
|
|
N/S |
192-0964
|
Washer |
1 |
|
|
N/S |
192-0404
|
Wire reinforced hose (sold by the inch) |
7 in |
|
|
N/S |
192-0404
|
Wire reinforced hose (sold by the inch) |
7 in |
|
|
